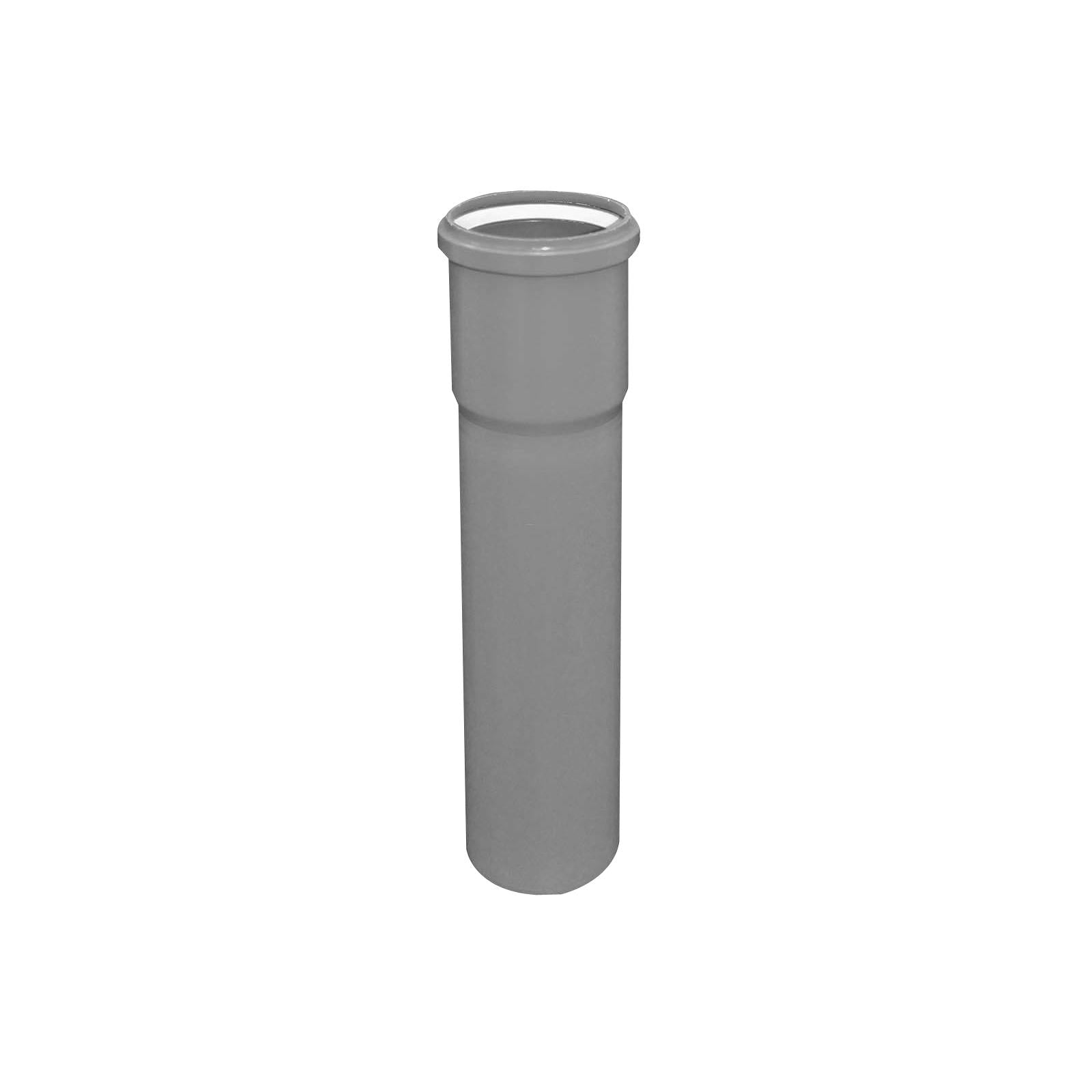

Centrotherm Eco Systems ISVL0410 InnoFlue Single Wall Rigid Vent Length 4 in

Product Description

The Centrotherm Eco Systems ISVL0410 InnoFlue Single Wall Rigid Vent is designed with male and female ends. It features a female end with an internal gasket and a male end that can be field cut and chamfered. Made from polypropylene, this vent length is suitable for ANSI Cat II/IV appliances like tankless and direct vent water heaters, high-efficiency water heaters, condensing boilers, and ninety plus furnaces.

• Includes a socket on each length.
• Does not require glues, solvents, or primer.
• Store in original packaging to prevent ovaling and bowing.

Product Highlights

This vent is a reliable choice for various heating applications, ensuring effective venting solutions.

Product Information

Standard Information

• Brand: Centrotherm Eco Systems
• Model Number: ISVL0410

Technical Specifications

• Connection Type: Socket x Male/Female
• Length: 4 in
• Material: Polypropylene
• Nominal Size: 4 in
• Outside Diameter: 5.1 in
• Pressure Rating: 12.5 kPa
• Temperature Rating: 230 to 248 deg F
• Wall Thickness: 0.094 to 0.12 in
