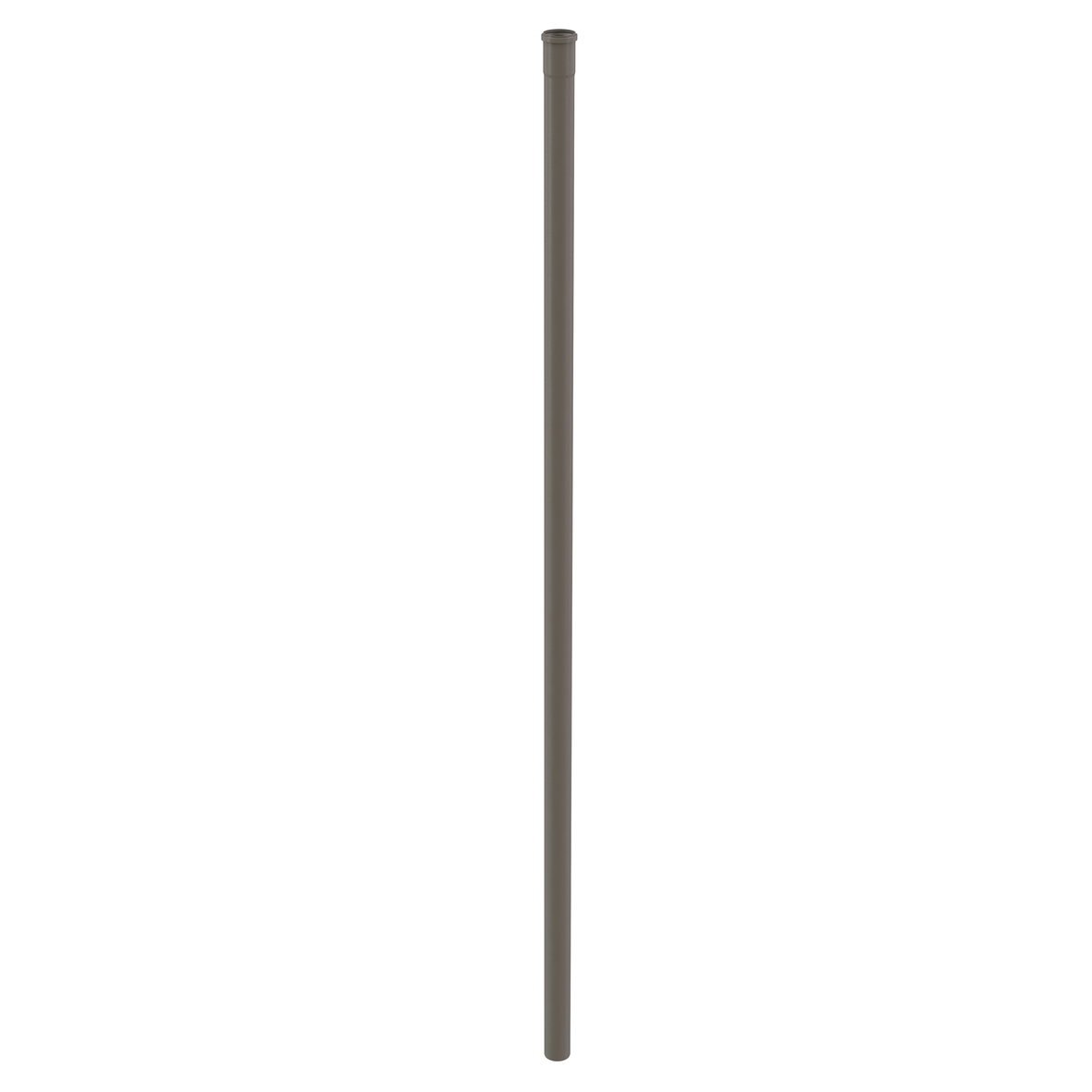

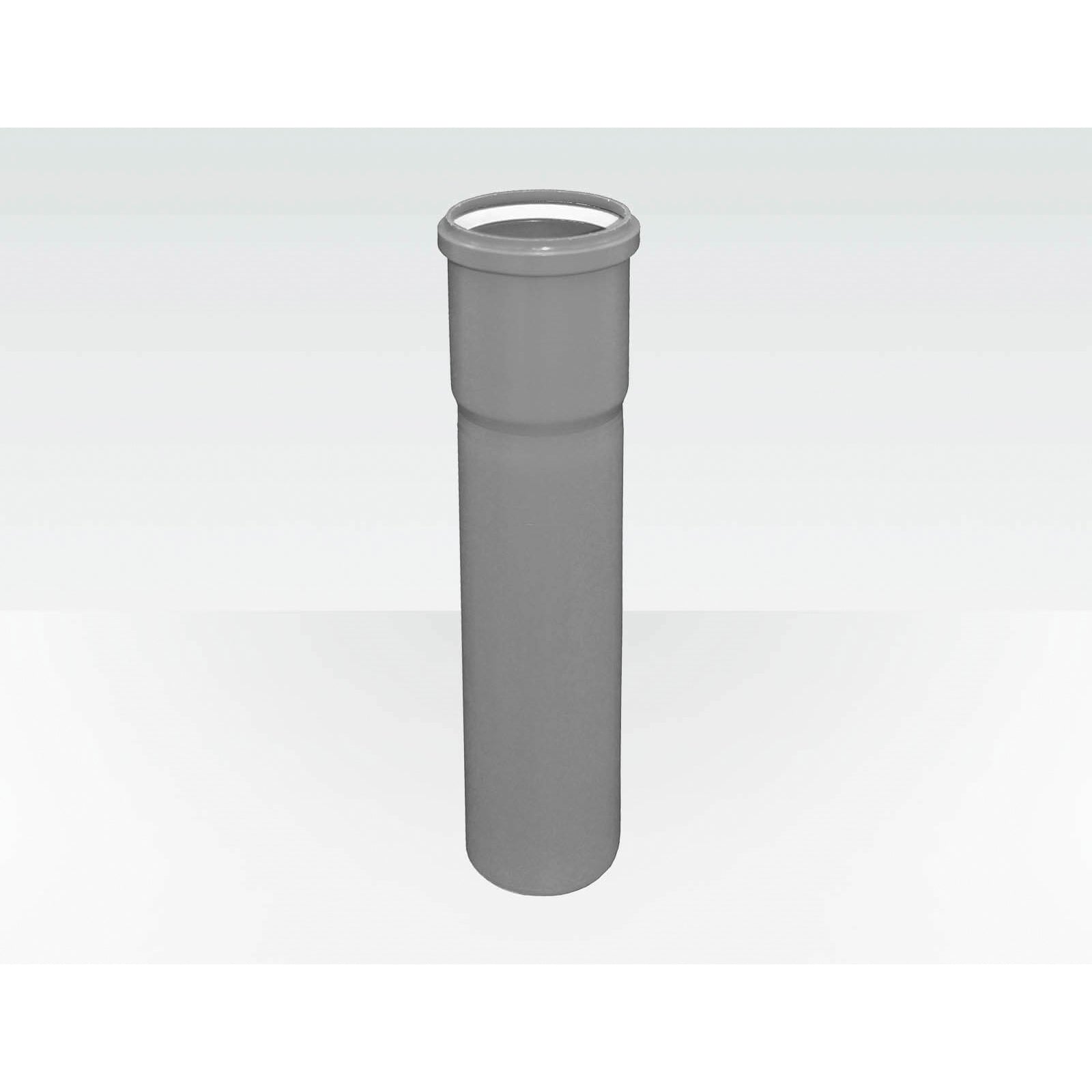

Centrotherm Eco Systems ISVL0310 Rigid Vent Length 3 in x 3.8 in x 124.2 in

Product Description

The Centrotherm Eco Systems ISVL0310 is a rigid polypropylene vent length with dedicated male and female ends. The female end contains an internal gasket, and the male end can be field cut and chamfered. It is a single wall vent length with a 3 in ID and 3.8 in OD, and a length of 124.2 inches.

• Constructed from UL1738 and ULCS636 listed polypropylene
• Engineered to withstand flue gas temperatures up to 230°F (110°C)
• Installs quickly without any glues, primers, or solvents

Product Highlights

This rigid vent length is durable and lightweight, providing an environmentally friendly venting solution with an integrated gasket that assures an airtight seal.

Product Information

Standard Information

• Brand: CENTROTHERM ECO SYSTEMS
• Manufacturer Part Number: ISVL0310
• Country of Origin: United States

Technical Specifications

• Diameter: 3 in ID x 3.8 in OD
• Domestic/Import: Domestic
• Finish: Gray
• Length: 124.2 in
• Material: Polypropylene
• Type: Single Wall
• Product Name: 3" x 120" Vent Length
• Trade name: InnoFlue
• GTIN: 0815010016411
• Part number: 250400102260
• System type: Single wall
• Length gross: 124.3 inch
• Height: 3.7 inch
• Diameter flue pipe: 3 inch
• Width: 3.7 inch
• Net weight: 3.4 lbs
• Packaging / Trade length: 124.3 inch
• Packaging / Trade height: 3.7 inch
• Number per packaging: 1
• Gross weight: 3.4 lbs
• Packaging / Trade width: 3.7 inch
• Temperature resistance (max.): 120 °C
• Certificates (US/CAN): UL 1738 – ICC-ES / ULC S636 – ICC-ES
• Connection Type: Male x Female
• Nominal Size: 3 in
• Outside Diameter: 3.8 in
• Temperature Rating: 32 to 230 deg F
