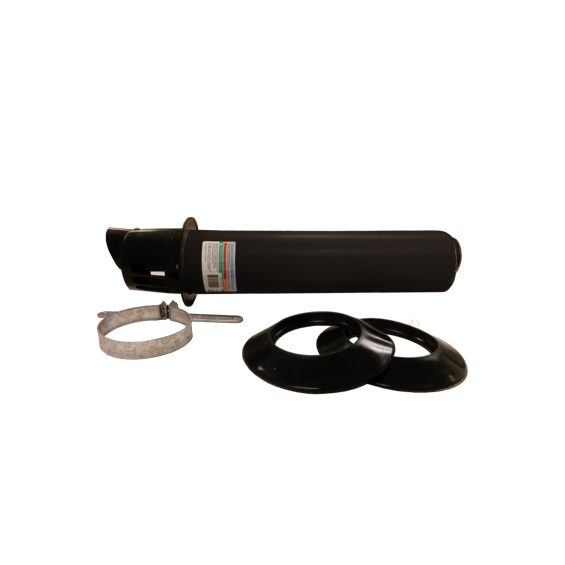

Centrotherm Eco Systems ICWT242 InnoFlue Concentric Wall Termination 2 or 4 in

Product Description

The Centrotherm Eco Systems ICWT242 InnoFlue Concentric Wall Termination is designed for efficient exhaust management through a sidewall. This product combines flue gas termination and combustion air intake in a single unit. It features durable PPs-UV construction for long-lasting performance.

• Combines exhaust and air intake in one penetration for efficiency.
• Simple installation reduces labor on site.
• Product complies with UL 1738 and ULC S636 standards.

Product Highlights

This concentric wall termination streamlines the venting process, making it ideal for use in both residential and commercial applications that require efficient air handling.

Product Information

Standard Information

• Product Name: 2inch/4inch Concentric Wall Termination PPs-UV Kit
• Part Number: 250411200440

Technical Specifications

• Material Flue Pipe: PPs
• System Type: Concentric
• Diameter Air Inlet Pipe: 100 mm / 4 inch
• Diameter Flue Pipe: 60 mm / 2 inch
• Temperature Resistance (Max.): 120 °C
• Domestic/Import: Domestic
• Vent Size: 2 or 4 in
