Centrotherm Eco Systems ICVKH35 3/5 Inch Concentric Vent Kit Horizontal

Product Description

The Centrotherm Eco Systems ICVKH35 3/5 Inch Concentric Vent Kit serves as a practical solution for venting gas appliances. This kit simplifies the installation process by integrating combustion air intake and exhaust into a single unit. It features a horizontal venting method that reduces the need for multiple wall penetrations.

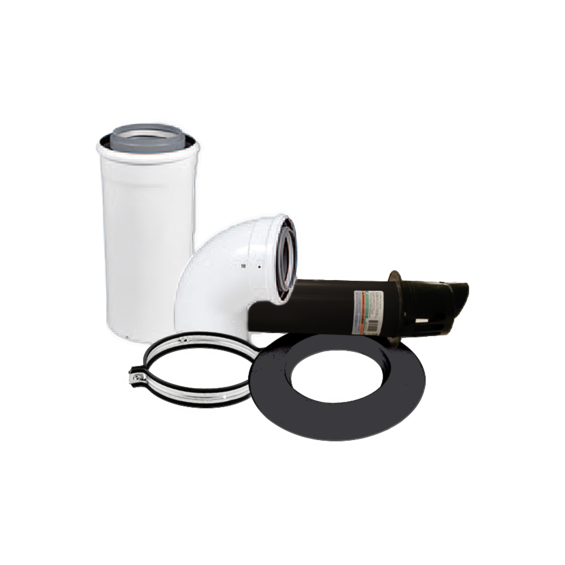

• Includes inner plate, outer plate, clamps, and self-tappers.
• Evaluated for safety according to UL1738 and ULC S636 standards.
• Constructed from durable materials like HDPE and polypropylene.

Product Highlights

This vent kit is ideal for efficient installations in residential and commercial settings.

Product Information

Standard Information

• Brand: Centrotherm Eco Systems
• Trade Name: InnoFlue

Technical Specifications

• Product Name: 3/5 Inch Concentric Vent Kit Horizontal
• Material Flue Pipe: PPs
• Material Air Inlet Pipe: HDPE
• Diameter Air Inlet Pipe: 125 mm (5 inches)
• Diameter Flue Pipe: 80 mm (3 inches)
• Temperature Resistance (Max): 120 °C
• System Type: Concentric
• Type: Horizontal
