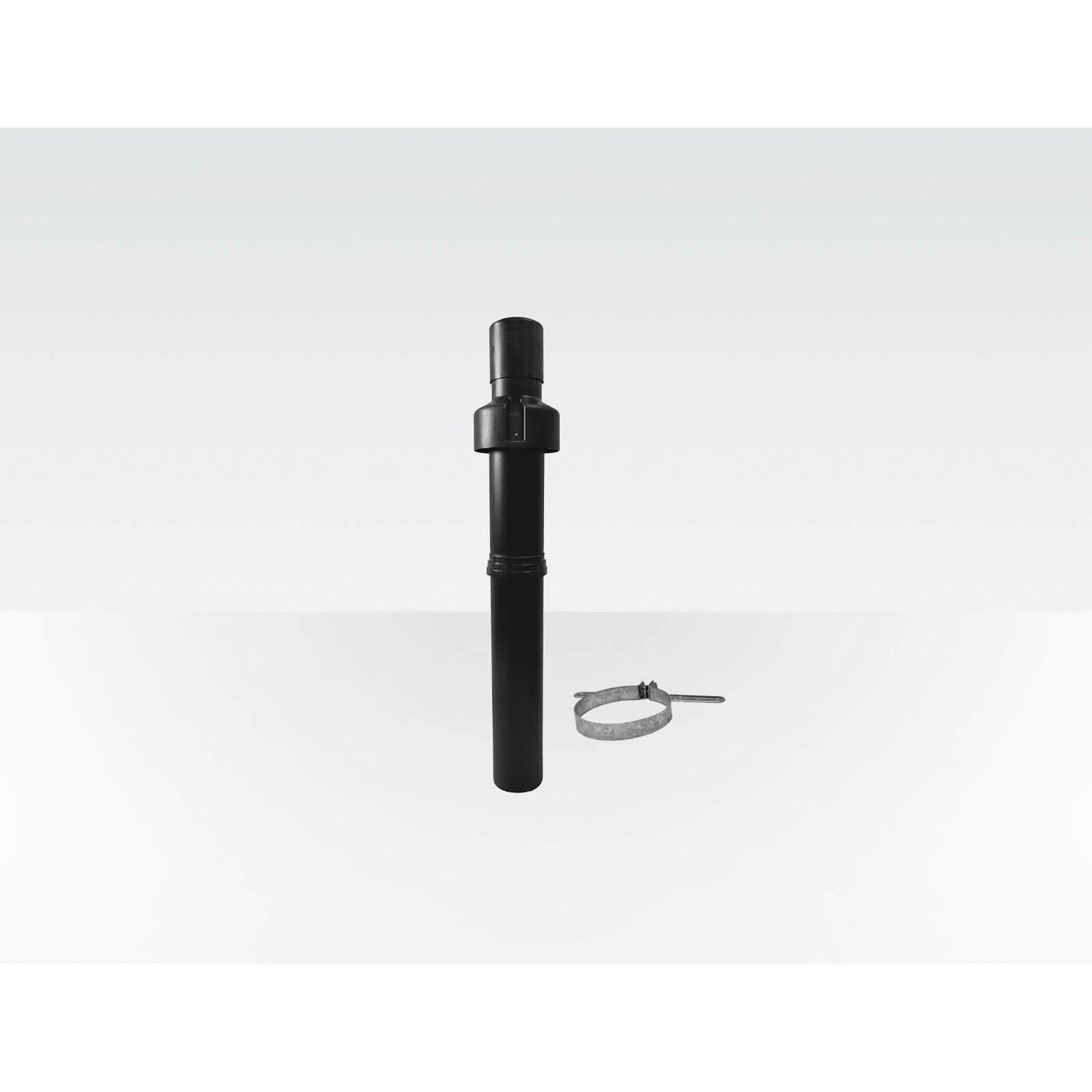

Centrotherm Eco Systems ICRT3539 InnoFlue Concentric Roof Termination 3/5 Inch

Product Description

The Centrotherm Eco Systems ICRT3539 InnoFlue Concentric Roof Termination is designed for efficient exhaust management through the roof. This product integrates both combustion air intake and exhaust into one system, making installation straightforward and effective. Rated for a maximum temperature of 230°F (110°C), it meets industry standards. This unit has been evaluated to UL1738 and ULCS636 by ICC.

• Single penetration for combustion air intake and exhaust.
• Reduces installation time and effort.
• Meets UL1738 and ULCS636 standards.

Product Highlights

The InnoFlue system simplifies installations by combining critical functions in one compact unit.

Product Information

Standard Information

• Product Name: 3''/5'' Concentric Roof Termination PPs-UV
• Accessories Included: Clamp

Technical Specifications

• Part Number: 250407300390
• GTIN: 0815010010990
• Material (Flue Pipe): PPs
• System Type: Concentric
• Material (Air Inlet Pipe): HDPE
• Length Gross: 1044 mm / 41.1 inch
• Height Under Roof: 520 mm / 20.5 inch
• Diameter Air Inlet Pipe: 125 mm / 5 inch
• Height Over Roof: 546 mm / 21.5 inch
• Diameter Flue Pipe: 80 mm / 3 inch
• Net Weight: 1.928 kg / 4.3 lbs
• Temperature Resistance (Max.): 120 °C
• Certificates: UL 1738 , ICC-ES / ULC S636 , ICC-ES
• Material Type: Polypropylene
• Vent Size: 3 or 5 inch
• Brand: Centrotherm Eco Systems
