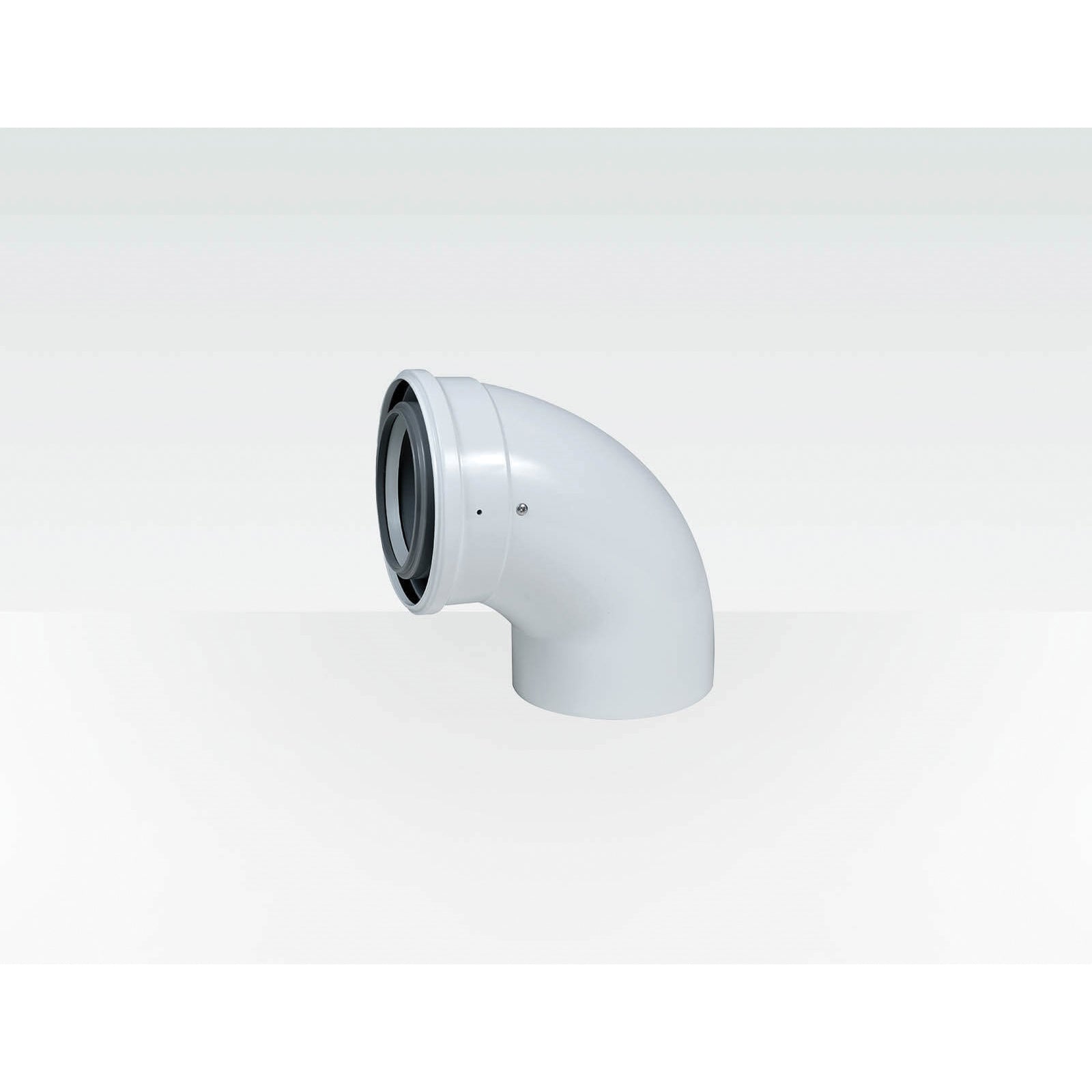

Centrotherm Eco Systems ICEL2487 InnoFlue 2inch/4inch x 87 Concentric PPs/Alu Elbow

Product Description

The Centrotherm Eco Systems ICEL2487 InnoFlue Concentric Elbow is designed for reliable integration of combustion air intake within a unified system. This elbow offers efficient transitions from flue gas discharge to air intake while reducing the number of components needed. Installation is straightforward as it requires no adhesives or solvents.

• Integrated intake and exhaust system minimizes wall and roof penetrations.
• Evaluated according to UL1738 and ULCS636 standards.
• Comes with a range of adaptors and accessories for versatile use.

Product Highlights

The ICEL2487 performs effectively in both residential and commercial applications where space and efficiency are key considerations. Its robust design is suitable for use with InnoFlue Polypropylene Vent Systems.

Product Information

Standard Information

• Product Name: Concentric PPs/Alu Elbow
• Trade Name: InnoFlue

Technical Specifications

• GTIN: 0815010013175
• Part Number: 250406208380
• Material Flue Pipe: PPs
• System Type: Concentric
• Material Air Inlet Pipe: Galvanized
• Length Gross: 180.34 mm / 7.1 inch
• Height: 115.57 mm / 4.5 inch
• Diameter Air Inlet Pipe: 100 mm / 4 inch
• Width: 165.1 mm / 6.5 inch
• Net Weight: 0.49 kg / 1.1 lbs
• Diameter Flue Pipe: 60 mm / 2 inch
• Packaging / Trade Length: 180.34 mm / 7.1 inch
• Packaging / Trade Height: 115.57 mm / 4.5 inch
• Number Per Packaging: 1
• Gross Weight: 0.567 kg / 1.3 lbs
• Temperature Resistance (Max.): 120 °C
• Certificates (US/CAN): UL 1738 / ICC-ES / ULC S636 / ICC-ES
• Angle: 87 degrees
• Diameter: 2 or 4 inches ID x 4.4 inches OD
• Domestic/Import: Domestic
• Material: Aluminum / Polypropylene
• Suitable For Use With: InnoFlue Polypropylene Vent Systems
