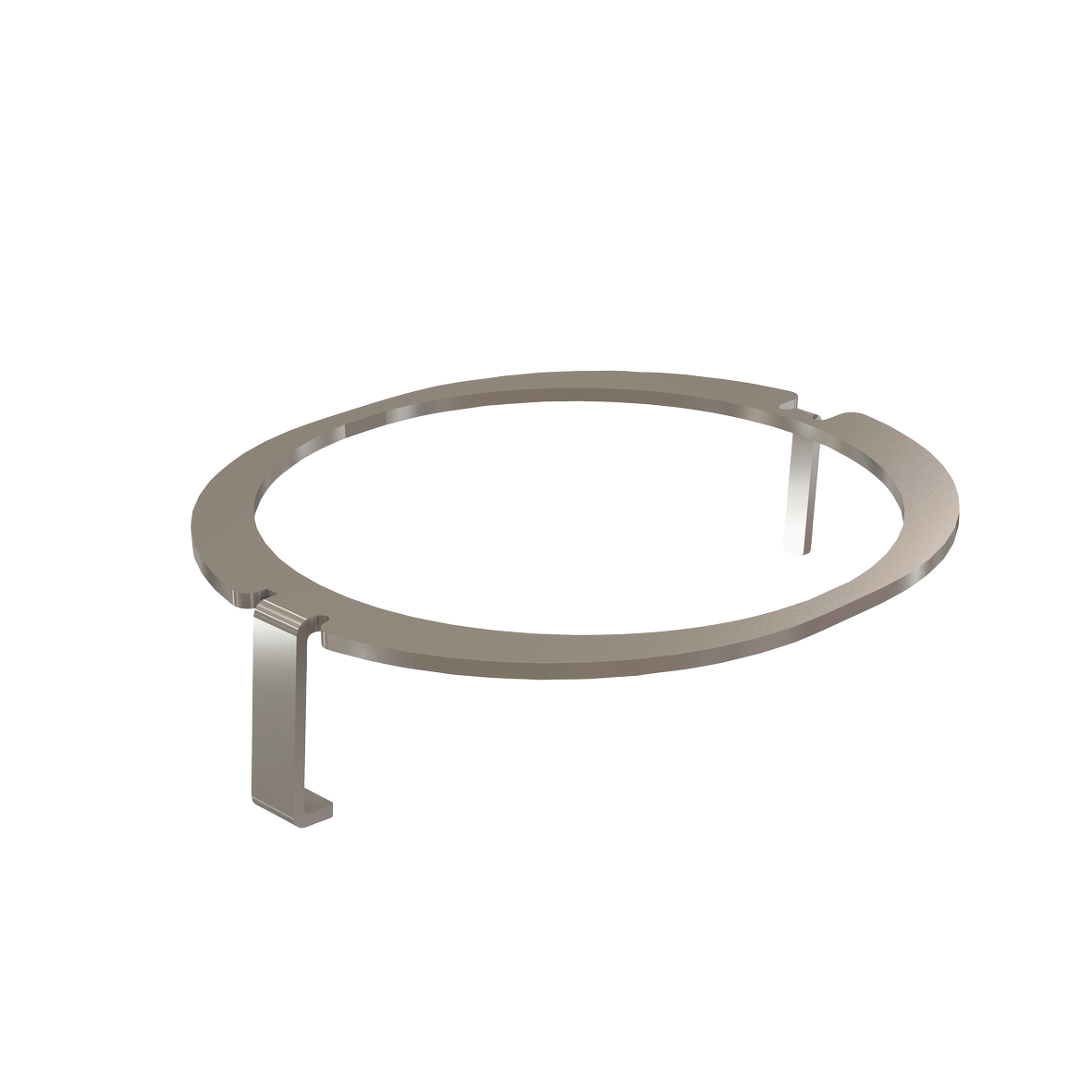

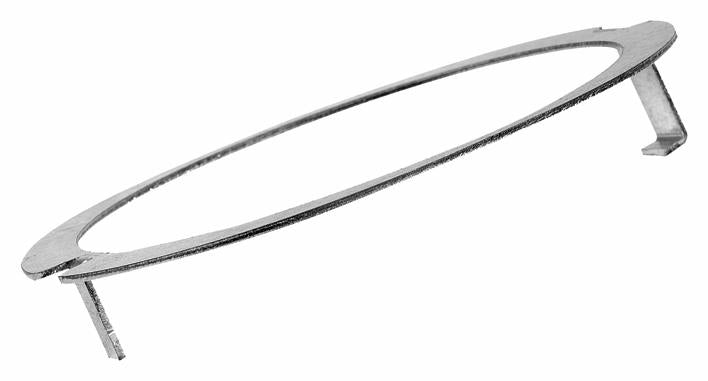

Centrotherm 250410103760 InnoFlue Connector Ring 3 inches

Product Description

The CENTROTHERM 250410103760 InnoFlue Connector Rings seamlessly integrate with Centrotherm components, ensuring a joint fitting that prevents leaks and maintains airtight exhaust flow. Required in 2", 3" and 4" diameters by UL, InnoFlue Connector Rings are evaluated to the mechanical standard to meet/exceed all relevant tests.

• Durable metal material adds additional stability to each fitting connection.
• Evaluated to UL1738 and ULCS636 by ICC.
• Cantilever system helps fitting to exceed relevant mechanical tests.

Product Highlights

The InnoFlue Connector Ring is lightweight, durable, and recommended in all diameter applications. Provides reinforcement at joints to support loads of up to 99 lbs (45Kg).

Product Information

Standard Information

• Brand: CENTROTHERM
• Manufacturer Part Number: 250410103760

Technical Specifications

• Product Name: 3'' Connector Ring
• Trade name: InnoFlue
• GTIN: 0815010010662
• Part number: 250410103760
• Material: Galvanized steel
• Length gross: 99 mm / 3.9 inch
• Height: 26 mm / 1 inch
• Diameter flue pipe: 80 mm / 3 inch
• Width: 88 mm / 3.5 inch
• Net weight: 0.03 kg / 0.1 lbs
• Intrastat: 7326908588
• Base unit packaging: Unpacked
• Packaging / Trade length: 99 mm / 3.9 inch
• Packaging / Trade height: 26 mm / 1 inch
• Number per packaging: 1
• Gross weight: 0.03 kg / 0.1 lbs
• Packaging / Trade width: 88 mm / 3.5 inch
• Certificates (US/CAN): UL 1738 – ICC-ES / ULC S636 – ICC-ES
• Diameter: 3 in ID x 4.1 in OD
• Type: SW Residential
• MPN: 250410103760
• Manufacturer: Centrotherm
• Finish: Metallic
• Item Weight: .1 lb.
• Item Dimensions: L 3.9 x W 3.5 x H 1 (in.)
