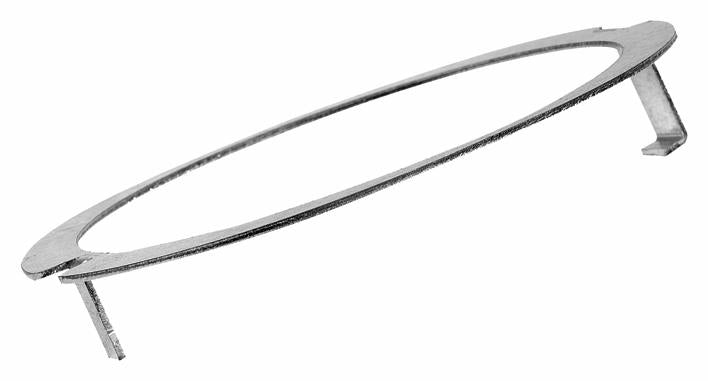

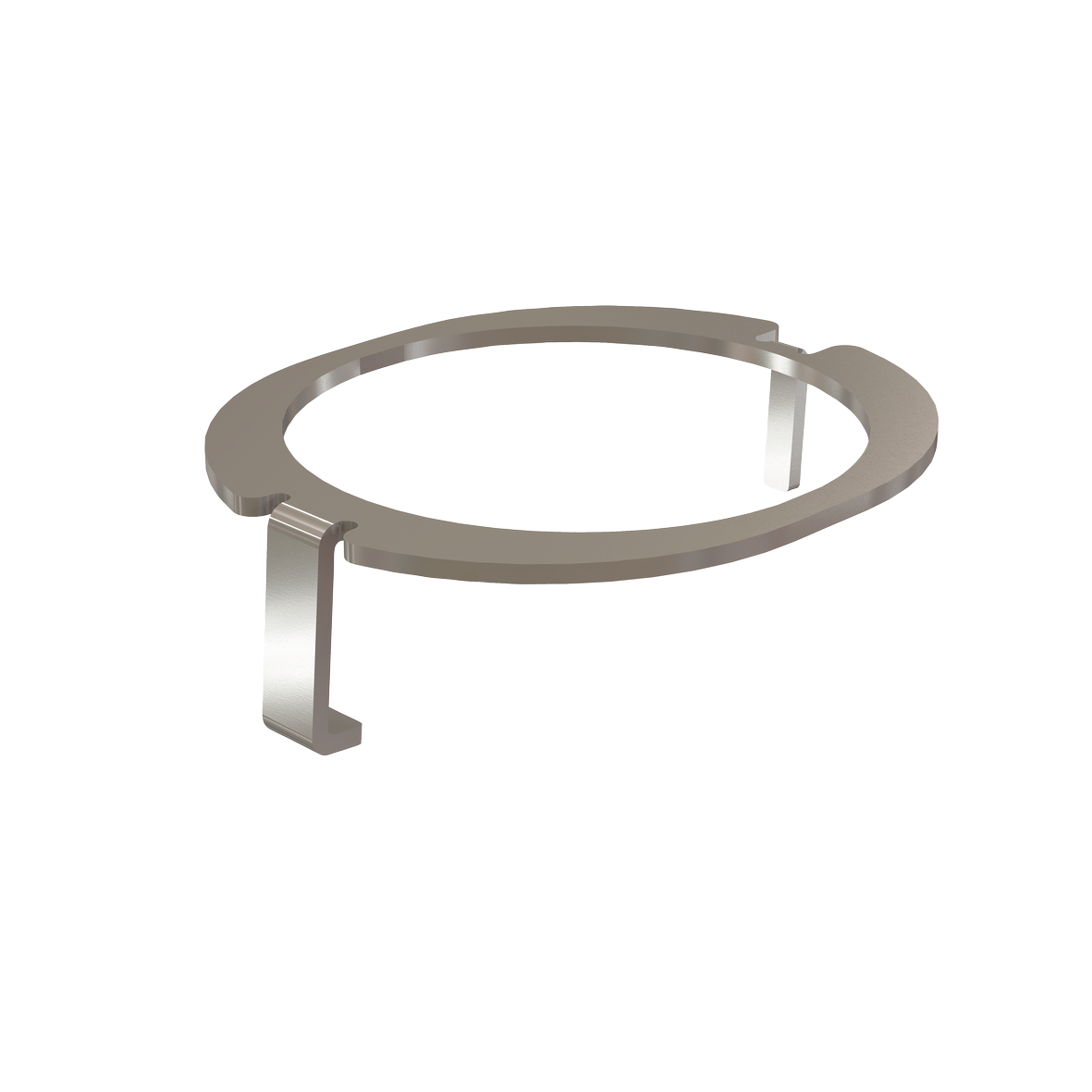

Centrotherm 250410003750 InnoFlue Connector Ring 2 inches

Product Description

The CENTROTHERM 250410003750 InnoFlue Connector Ring seamlessly integrates with Centrotherm components, ensuring a joint fitting that prevents leaks and maintains airtight exhaust flow. Made of galvanized metal, it utilizes a cantilever system to provide additional support at each fitting connection. Recommended for all diameter applications.

• Ensuring a joint fitting that prevents leaks and maintains airtight exhaust flow.
• Evaluated to UL1738 and ULCS636 by ICC.
• Cantilever system helps fitting to exceed relevant mechanical tests.

Product Highlights

Durable metal material adds additional stability to each fitting connection. Lightweight and durable.

Product Information

Standard Information

• Brand: CENTROTHERM
• Manufacturer Part Number: 250410003750
• Country of Origin: United States

Technical Specifications

• Product Name: 2'' Connector Ring
• Trade name: InnoFlue
• GTIN: 0815010011034
• Part number: 250410003750
• Material: Galvanized steel
• Length gross: 78 mm / 3.1 inch
• Height: 24 mm / 0.9 inch
• Diameter flue pipe: 60 mm / 2 inch
• Width: 68 mm / 2.7 inch
• Net weight: 0.024 kg / 0.1 lbs
• Intrastat: 7326908588
• Base unit packaging: Unpacked
• Packaging / Trade length: 78 mm / 3.1 inch
• Packaging / Trade height: 24 mm / 0.9 inch
• Number per packaging: 1
• Gross weight: 0.024 kg / 0.1 lbs
• Packaging / Trade width: 68 mm / 2.7 inch
• Certificates (US/CAN): UL 1738 – ICC-ES / ULC S636 – ICC-ES
• Diameter: 2 in ID x 3.2 in OD
• Type: SW Residential
• MPN: 250410003750
• Manufacturer Part Number: 250410003750
• UPC / GTIN: 815010011034
• Manufacturer: Centrotherm
• Finish: Metallic
• Item Weight: 0.1 lb.
• Item Dimensions: L 3.1 x W 2.7 x H .9 (in.)
