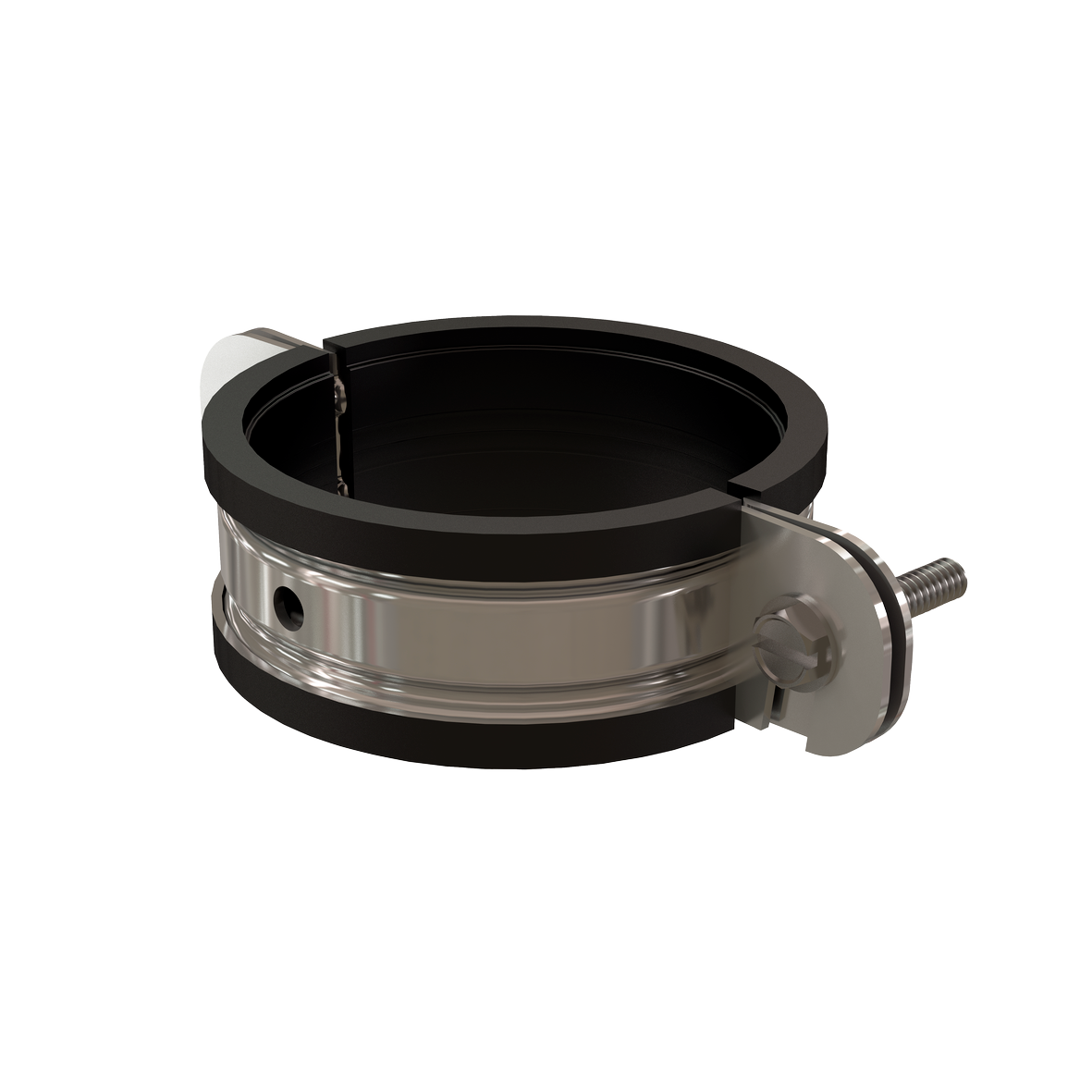

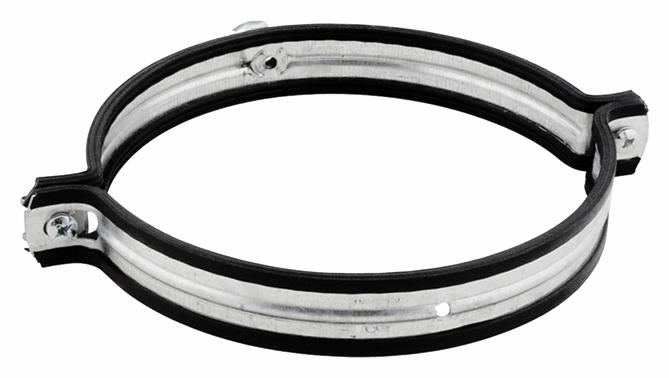

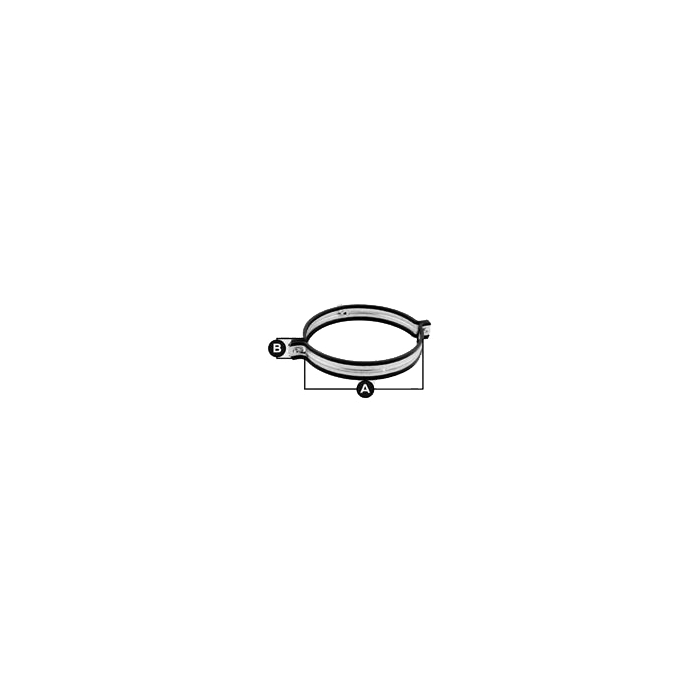

Centrotherm 250410003510 iascm02 2 inches Support Clamp With 3/8 inches Nut

Product Description

The CENTROTHERM 250410003510 IASCM02 is a 2" support clamp with a 3/8" nut, designed for use with InnoFlue® Polypropylene Vent Systems. It is constructed from steel with a zinc plated finish. The support clamp can be used for vertical or horizontal support. It integrates with a 3/8" threaded rod for easy installation.

• Used as vertical or horizontal support
• Space 78" in vertical and 39" in horizontal installations
• Accepts standard 3/8th" threaded rod.

Product Highlights

The Centrotherm IASCM02 support clamp provides a user-friendly option to support the exhaust system. Its metal interior is coated with a rubber exterior to prevent scratching.

Product Information

Standard Information

• Brand: CENTROTHERM
• Manufacturer Part Number: 250410003510
• Country of Origin: US

Technical Specifications

• MPN: 250410003510
• Manufacturer Part Number: 250410003510
• UPC / GTIN: 815010016138
• Manufacturer: Centrotherm
• Finish: Zinc Plated
• Material: Steel
• Specifications: 2 in Dia Nominal
• Suitable For Use With: InnoFlue Polypropylene Vent Systems
• Product Name: 2" Support Clamp With 3/8" Nut
• Trade name: InnoFlue
• Diameter flue pipe: 60 mm / 2 inch
• Product family: Accessories
• Product group: Single Wall - Small diameter
• Type: Object (single object)
