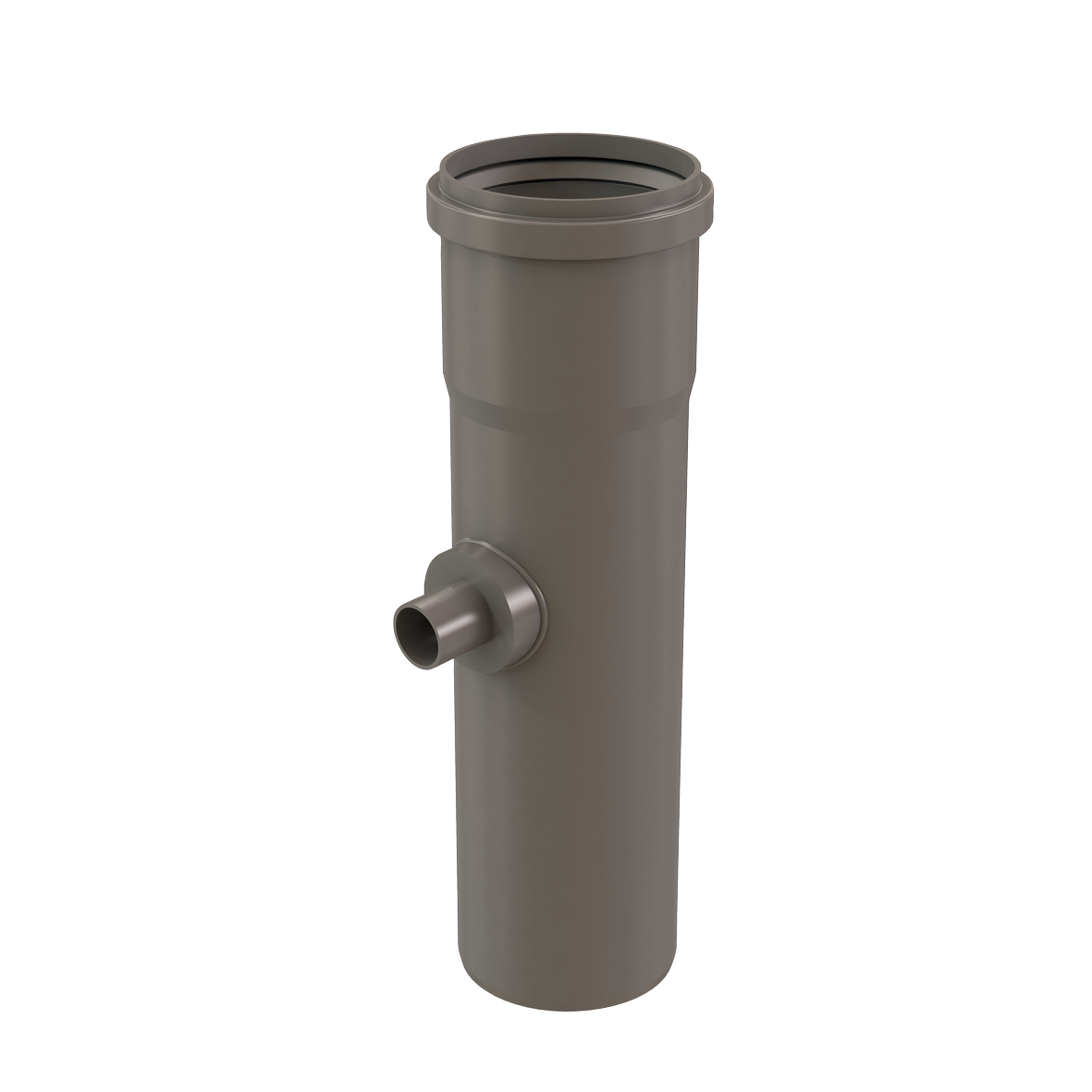

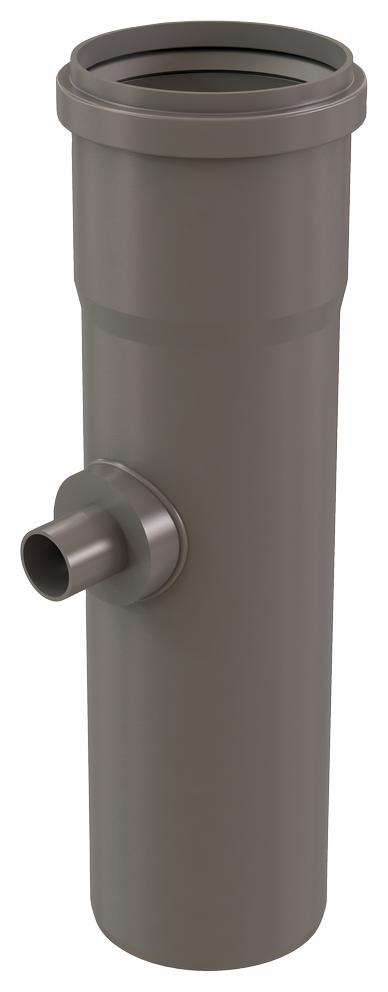

Centrotherm 250409202070 Horizontal Drain Tee 4 inches

Product Description

The CENTROTHERM 250409202070 InnoFlue Horizontal Drain Tee ensures reliable condensate management and optimal exhaust system performance. Evaluated to UL1738 and ULCS636 by ICC, it facilitates smooth condensate removal, preventing water buildup and potential damage. It integrates with any InnoFlue Siphon and installs quickly without glues, primers, or solvents.

• Integrated drain facilitates condensate management.
• Evaluated to UL1738 and ULCS636 by ICC.
• Durable and lightweight.

Product Highlights

Ensures reliable condensate management and optimal exhaust system performance. Installs quickly and easily.

Product Information

Standard Information

• Brand: CENTROTHERM
• Manufacturer Part Number: 250409202070
• Country of Origin: Domestic

Technical Specifications

• Product Name: 4" Horizontal Drain Tee
• Trade name: InnoFlue
• GTIN: 0815010010808
• Part number: 250409202070
• Material: PPs
• System type: Single wall
• Length gross: 413 mm / 16.3 inch
• Height: 128 mm / 5 inch
• Diameter flue pipe: 110 mm / 4 inch
• Width: 165 mm / 6.5 inch
• Net weight: 0.404 kg / 0.9 lbs
• Intrastat: 3917400090
• Base unit packaging: Unpacked
• Packaging / Trade length: 413 mm / 16.3 inch
• Packaging / Trade height: 128 mm / 5 inch
• Number per packaging: 1
• Gross weight: 0.404 kg / 0.9 lbs
• Packaging / Trade width: 165 mm / 6.5 inch
• Temperature resistance (max.): 120 °C
• Certificates (US/CAN): UL 1738 – ICC-ES / ULC S636 – ICC-ES
• Diameter: 4 in
• Domestic/Import: Domestic
• Finish: Gray
• Length: 12.4 In
• Type: Horizontal
• Item Weight: 0.9 lb.
• Item Dimensions: L 16.3 x W 6.5 x H 5 (in.)
