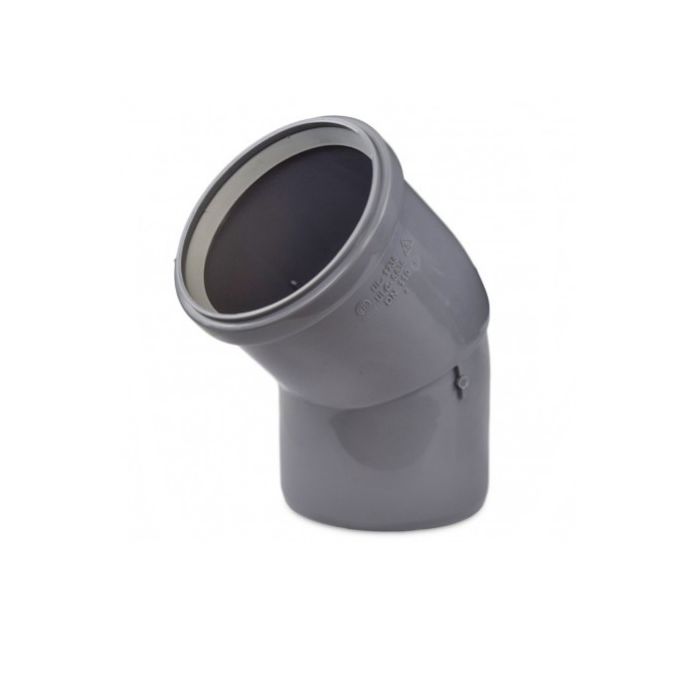

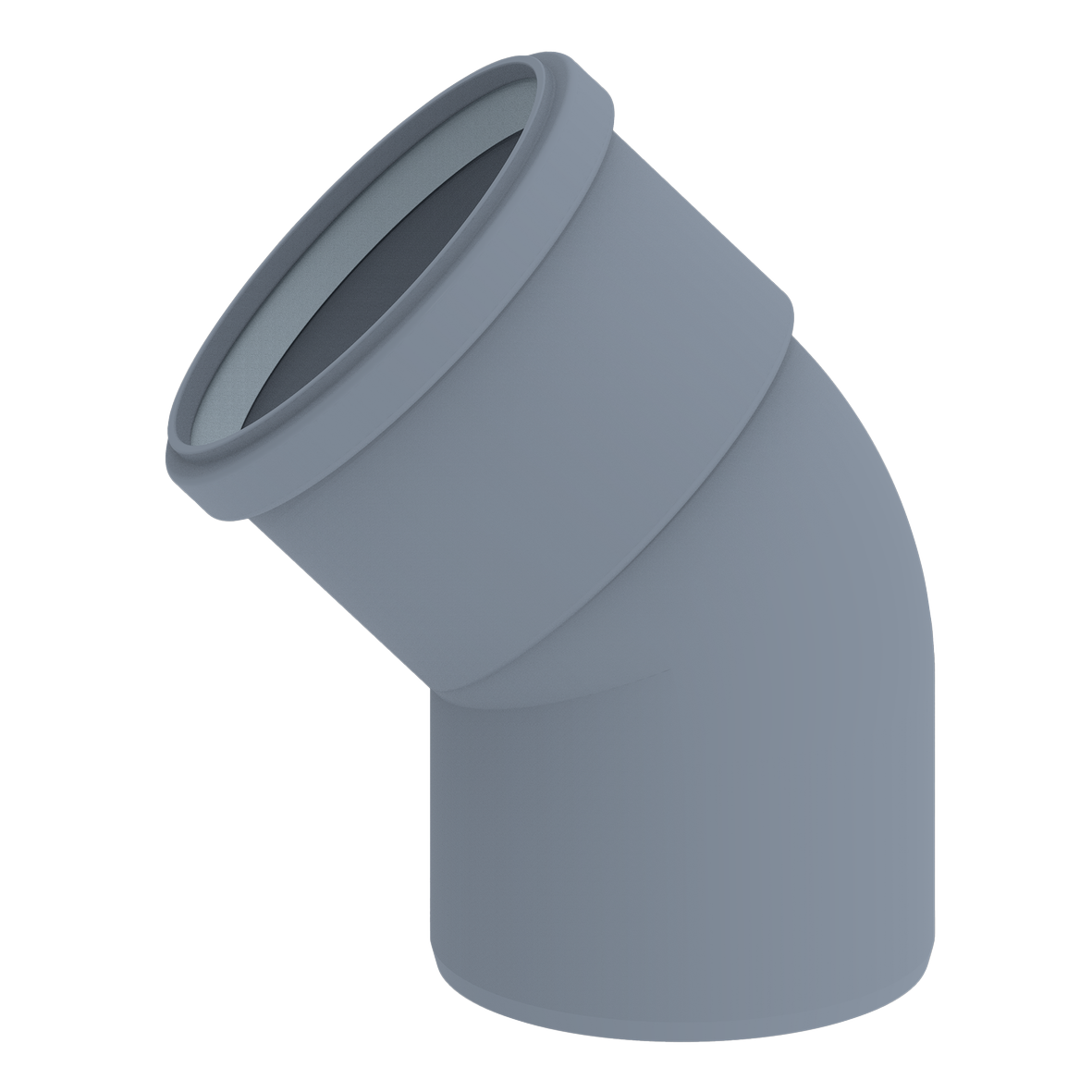

Centrotherm 250405208140 4 x 45 Elbow w/Long Socket

Product Description

The CENTROTHERM 250405208140 InnoFlue elbows provide stability to offsets in the vent system. The integrated EPDM gaskets assure an airtight seal while installing quickly without the need for glues, primers, or solvents. Effortlessly manage directional changes in the vent system. Suitable for outdoor installation.

• Engineered for venting applications
• Integrated EPDM gasket assures airtight seal
• Durable and lightweight

Product Highlights

InnoFlue elbows provide a quick solution to tricky vent layouts. Evaluated to UL1738 and ULCS636 by ICC.

Product Information

Standard Information

• Brand: CENTROTHERM
• Manufacturer Part Number: 250405208140

Technical Specifications

• Product Name: 4 x 45 Elbow w/Long Socket
• Trade name: InnoFlue
• GTIN: 0810017294282
• Part number: 250405208140
• Material: Polypropylene
• System type: Single wall
• Length gross: 205 mm / 8.1 inch
• Height: 128 mm / 5 inch
• Diameter flue pipe: 110 mm / 4 inch
• Width: 168 mm / 6.6 inch
• Net weight: 0.178 kg / 0.4 lbs
• Base unit packaging: Unpacked
• Packaging / Trade length: 205 mm / 8.1 inch
• Packaging / Trade height: 128 mm / 5 inch
• Gross weight: 0.178 kg / 0.4 lbs
• Packaging / Trade width: 168 mm / 6.6 inch
• Temperature resistance (max.): 120 °C / 248 °F
• Item Weight: 0.4 lb.
• Item Dimensions: L 8.1 x W 6.6 x H 5 (in.)
• MPN: 250405208140
• Manufacturer: Centrotherm
• Height (Inches): 5
• Depth (Inches): 8
• Weight: 0.39
• Angle: 45 deg
• Dimensions: 5 in OD
• Size: 4 in
• Center-to-End: 2.7 in
• Degree: 45
