Centrotherm 250405108080 Poly Vent 45 Degree Elbow 3 in

Product Description

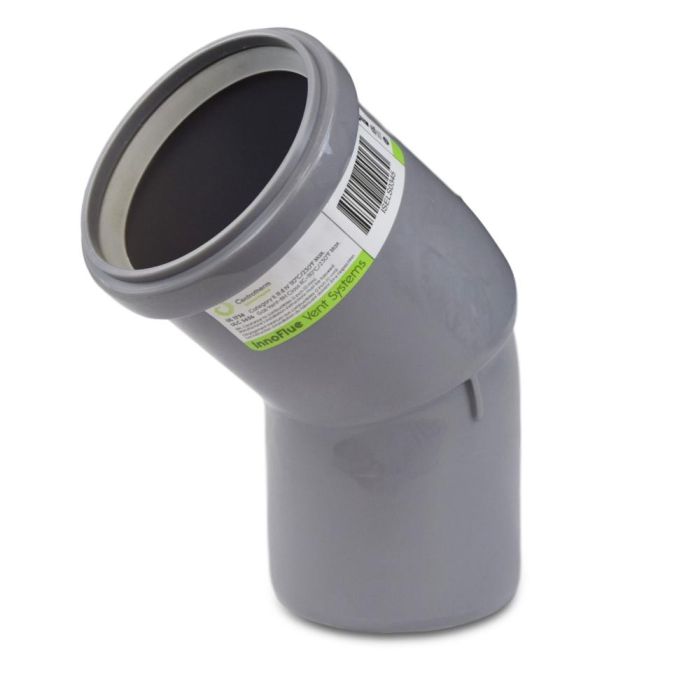

The CENTROTHERM 250405108080 is a 3-inch gasketed polypropylene vent elbow with a 45-degree sweep, designed for use in direct-vent and concentric flue systems on high-efficiency gas appliances. The polypropylene construction resists the acidic condensate produced by condensing furnaces and boilers, and the integrated gasket ensures a sealed, leak-resistant joint. This elbow is rated for service up to 230 degrees F, making it suitable for Category IV venting applications. HVAC technicians and plumbers install this fitting as part of listed polypropylene vent systems where rigid direction changes are required in the flue or combustion-air piping.

This elbow is used in residential and light-commercial venting installations for condensing gas furnaces, boilers, and water heaters that require polypropylene flue pipe. The 45-degree angle allows for moderate directional offsets in both horizontal and vertical vent runs. It is suited for installations where the flue must navigate obstructions or transition between wall penetration angles without exceeding the tight-radius clearances that a 90-degree elbow would impose.

Key Features

• 3-inch nominal pipe size fits standard polypropylene vent systems
• 45-degree elbow geometry for moderate directional offsets in flue runs
• Gasketed joints provide a sealed, condensate-resistant connection
• Polypropylene material withstands acidic flue condensate from condensing appliances
• Rated up to 230 degrees F for Category IV venting service

Compatibility

Designed as a replacement or extension component for 3-inch polypropylene vent systems used with condensing gas furnaces, boilers, and water heaters requiring Category IV flue venting.

Installation Notes

Installation should be performed by a licensed HVAC technician or plumber in accordance with the appliance manufacturer instructions and applicable mechanical codes such as the IFGC. Shut down and isolate the appliance from gas and electrical supply before servicing any vent components. Ensure the gasket is properly seated before joining sections, and support all horizontal vent runs at intervals required by the vent system listing. Do not use with PVC or ABS vent pipe not rated for condensing flue applications.

Technical Specifications

• Pipe Size: 3 inches
• Elbow Angle: 45 degrees
• Material: Polypropylene
• Maximum Temperature Rating: 230 degrees F
• Joint Type: Gasketed

Standard Information

• Brand: CENTROTHERM
• Manufacturer Part Number: 250405108080
