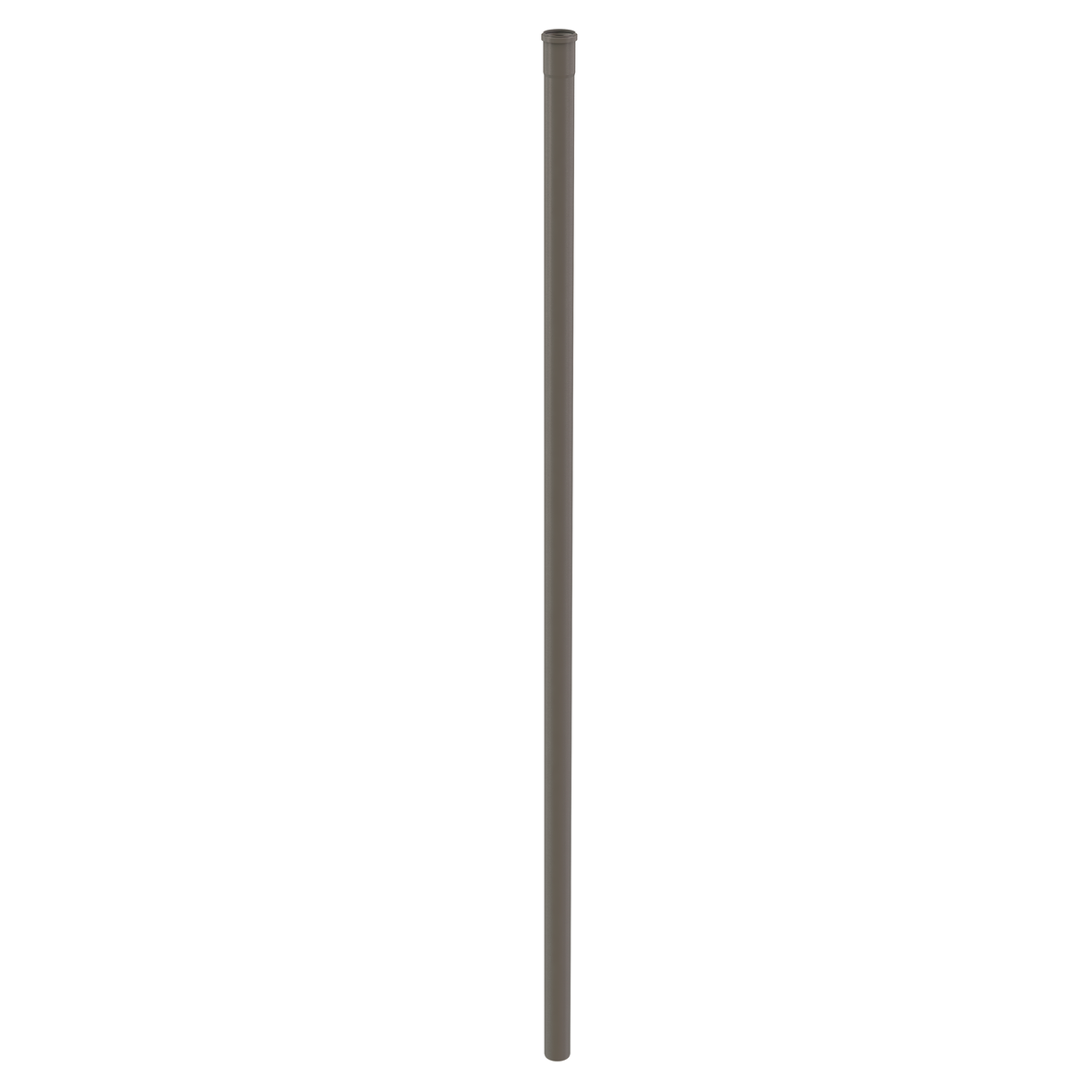

Centrotherm 250400102260 InnoFlue Vent Length 3 inches x 120 inches

Product Description

The CENTROTHERM 250400102260 InnoFlue vent lengths are constructed from UL1738 and ULCS636 listed polypropylene. Engineered to withstand flue gas temperatures up to 230°F (110°C). InnoFlue vent lengths provide an environmentally friendly venting solution that installs quickly without any glues, primers, or solvents. InnoFlue vent lengths are thin-wall and lightweight combining performance and durability.

• Evaluated to UL1738 and ULCS636 by ICC.
• Engineered for high-efficiency venting up to 230°F (110°C).
• Durable and lightweight.

Product Highlights

The vent lengths are rigid polypropylene lengths with dedicated male and female ends. Female ends contain internal gasket and male ends can be field cut and chamfered to desired length.

Product Information

Standard Information

• Brand: CENTROTHERM
• Manufacturer Part Number: 250400102260
• Country of Origin: US

Technical Specifications

• Product Name: 3" x 120" Vent Length
• Trade name: InnoFlue
• GTIN: 0815010016411
• Part number: 250400102260
• Material: PPs
• System type: Single wall
• Length gross: 3156 mm / 124.3 inch
• Height: 94 mm / 3.7 inch
• Diameter flue pipe: 80 mm / 3 inch
• Width: 94 mm / 3.7 inch
• Net weight: 1.55 kg / 3.4 lbs
• Intrastat: 3917220000
• Base unit packaging: Unpacked
• Packaging / Trade length: 3156 mm / 124.3 inch
• Packaging / Trade height: 94 mm / 3.7 inch
• Number per packaging: 1
• Gross weight: 1.55 kg / 3.4 lbs
• Packaging / Trade width: 94 mm / 3.7 inch
• Temperature resistance (max.): 120 °C
• Certificates (US/CAN): UL 1738 – ICC-ES / ULC S636 – ICC-ES
• MPN: 250400102260
• Manufacturer Part Number: 250400102260
• UPC / GTIN: 815010016411
• Manufacturer: Centrotherm
• Item Weight: 3.4 lb.
• Item Dimensions: L 124.3 x W 3.7 x H 3.7 (in.)
• Brand: Centrotherm Eco Systems
• MFR Part #: ISVL0310
• SKU #: 1173917
• Diameter: 3 in ID x 3.8 in OD
• Length: 124.2 in
• Type: Single Wall
• Finish: Gray
• Domestic/Import: Domestic
• Application: Residential
