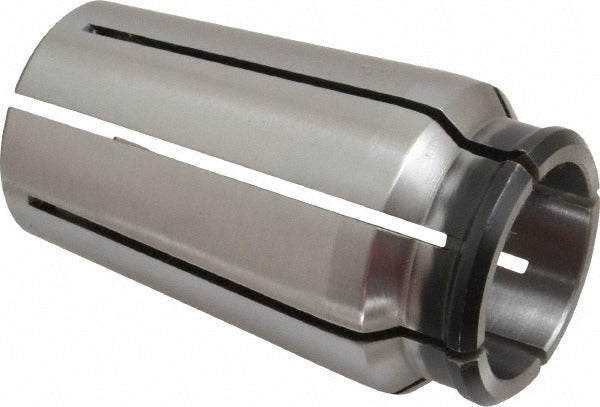

Centaur Rdf - 213 Series 100 Af Collet 1 Inch Capacity

Product Description

The CENTAUR RDF - 213 is a Series 100 AF collet designed to hold workpieces ranging from 63/64 inch to 1 inch in diameter. With an overall diameter of 1.45 inches and an overall length of 2.5 inches, this collet provides secure, concentric clamping for turning, milling, and grinding applications. Machinists and toolroom technicians rely on Series 100 AF collets for consistent grip and runout control when holding round stock or tooling shanks at or near the 1-inch capacity range. The RDF - 213 is a single-piece collet unit sold individually.

This collet is suited for use in machine tool spindles that accept the Series 100 AF collet system. It is appropriate for light to medium material removal operations in both job shop and production environments where precise workholding at the 1-inch capacity is required. Typical applications include CNC lathes, manual lathes, and collet-chuck setups where the spindle is configured for the 100 AF series standard.

Key Features

• Collet capacity range from 63/64 inch to 1 inch accommodates stock at or near the 1-inch nominal size
• Overall diameter of 1.45 inches fits spindles designed for Series 100 AF collets
• Overall length of 2.5 inches provides full engagement within compatible collet chucks
• Series 100 AF design for concentric clamping and reliable grip on round workpieces
• Sold as an individual unit with a minimum order quantity of 1

Compatibility

Designed for use in machine tool spindles and collet chucks configured for the Series 100 AF collet standard. Verify spindle series and collet seat dimensions against your machine specifications before installation.

Installation Notes

Installation should be performed by a qualified machinist or toolroom technician. Power down and de-energize the machine tool completely before inserting or removing the collet. Inspect the collet bore and spindle seat for chips or damage prior to seating the collet, and never force a collet into a spindle that does not accept it freely. Refer to the machine manufacturer's manual for draw-bar torque procedures applicable to your specific spindle.
