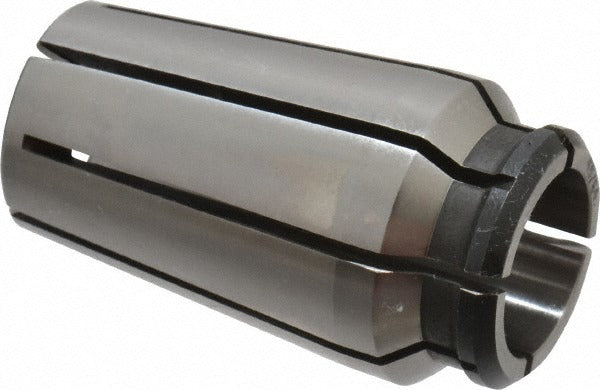

Centaur Rdf - 135 Series 75 Af Collet 11/16-45/64 in

Product Description

The CENTAUR RDF - 135 is a Series 75 AF collet designed for precision workholding in lathe, mill, and turning applications. It accepts stock ranging from 11/16 inches minimum to 45/64 inches (0.7031 inches) maximum collet capacity, making it well suited for close-tolerance gripping of round, hex, or square stock within that range. The collet measures 1.13 inches in overall diameter and 2.02 inches in overall length. Machinists and toolroom technicians install this collet into compatible Series 75 AF collet chucks or collet fixtures where consistent, repeatable clamping force and concentricity are required.

This collet is used in production and job-shop machining environments where the Series 75 AF system is already in use. Typical applications include CNC turning centers, manual lathes, and milling machines equipped with the appropriate collet chuck body. The 11/16 to 45/64 inch capacity range is particularly common when machining bar stock or pre-turned workpieces in that diameter band. It is sold individually and is intended for professional machining operations where tooling precision is critical.

Key Features

• Series 75 AF collet system compatibility for consistent fitment in matching chuck bodies
• Capacity range of 11/16 inches to 45/64 inches (0.7031 inches decimal) for close-tolerance workholding
• 1.13 inch overall diameter maintains proper seating and concentricity in the collet chuck
• 2.02 inch overall length suits standard collet chuck depth requirements
• Sold as a single unit allowing targeted replacement or capacity-specific additions to tooling inventory

Compatibility

Designed for use with Series 75 AF collet chuck systems requiring a collet capacity in the 11/16 to 45/64 inch range. No additional specific compatible model numbers were provided in the product data.

Installation Notes

Installation is performed by qualified machinists or toolroom technicians. Before inserting or removing a collet, ensure the machine spindle is fully stopped and all energy sources are locked out per shop safety procedures. Inspect the collet bore and chuck taper for chips or wear before seating the collet. Do not exceed the stated maximum collet capacity, as overloading the collet can compromise gripping force and workpiece concentricity.
