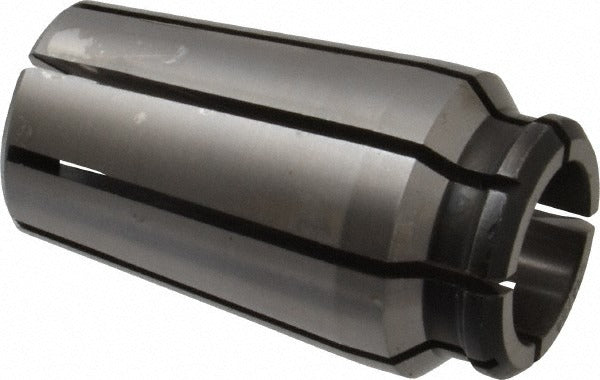

Centaur Rdf - 133 Series 75 Af Collet 21/32-43/64 in

Product Description

The CENTAUR RDF - 133 is a Series 75 AF collet designed for precision workholding in machining applications. It accepts round stock with a collet capacity ranging from 21/32 inches to 43/64 inches (0.6719 inches maximum in decimal), making it suited for close-tolerance gripping of bar stock and tooling shanks. The overall diameter is 1.13 inches and the overall length is 2.02 inches. This collet is installed by machinists and toolroom technicians working with lathes, milling machines, or other spindle equipment that accept the Series 75 AF collet format.

The RDF - 133 fits into equipment configured for Series 75 AF collets and is appropriate for both production and toolroom environments. Its capacity range targets workpieces near the 43/64-inch nominal size, a common dimension in general machining and light manufacturing. Installation is performed by machine operators or maintenance machinists during setup or tooling changeovers.

Key Features

• Collet capacity range: 21/32 inches minimum to 43/64 inches (0.6719 inches) maximum
• Series 75 AF collet format for compatibility with matching spindle noses and closers
• Overall diameter of 1.13 inches for precise spindle fit
• Overall length of 2.02 inches for standard Series 75 AF geometry
• Single-piece collet construction for consistent gripping force

Compatibility

Designed as an OEM-style replacement or standard fitment for machine spindles and collet chucks configured to accept Series 75 AF collets.

Installation Notes

Installation is performed by qualified machinists or toolroom personnel. Always power down and lock out the machine spindle before inserting or removing a collet. Use the appropriate collet wrench or closer for the Series 75 AF system and confirm that the collet bore is clean and free of chips before seating. Follow the machine manufacturer's torque and clamping guidelines for the specific spindle closer in use.
