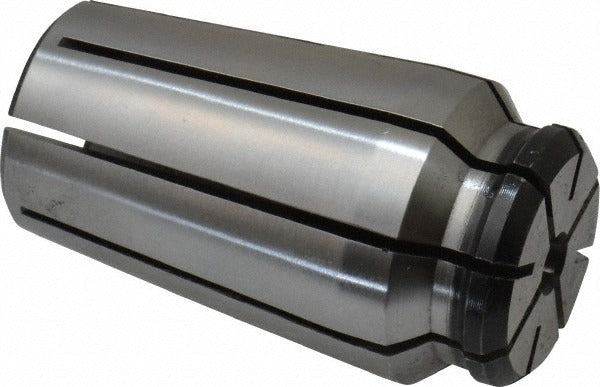

Centaur Rdf - 101 Series 75 Af Collet 3/16 to 13/64 in

Product Description

The CENTAUR RDF - 101 is a Series 75 AF collet designed to hold workpieces ranging from 3/16 inch to 13/64 inch (0.2031 inch maximum) in capacity. Collets in this series provide precise, repeatable workholding for machining operations, securing round stock or tooling in compatible collet chucks or spindles. The RDF - 101 measures 1.13 inches in overall diameter and 2.02 inches in overall length, making it a compact component suited to close-tolerance setups. Machinists, toolroom technicians, and CNC operators typically install and replace collets as part of routine toolholding maintenance or job changeovers.

The Series 75 AF collet is intended for use in machine tool applications where accurate workholding within the 3/16 to 13/64 inch capacity range is required. It fits lathes, milling machines, screw machines, or similar equipment that accept Series 75 AF-style collet tooling. This part is suited to both production and job-shop environments where consistent gripping force and concentricity are necessary for part quality.

Key Features

• Collet capacity range of 3/16 inch to 13/64 inch (0.2031 inch decimal maximum)
• Series 75 AF collet design for compatibility with matching collet chucks and spindles
• 1.13 inch overall diameter for a compact, precise fit in the collet seat
• 2.02 inch overall length for stable workholding engagement
• Sold individually — package quantity of one

Compatibility

Designed as a replacement or supplemental collet for machine tool spindles and collet chucks that accept Series 75 AF style collets within the 3/16 to 13/64 inch capacity range.

Installation Notes

Installation is performed by qualified machinists or toolroom technicians. Always power down and lock out the machine spindle before inserting or removing a collet. Inspect the collet seat and collet body for chips, burrs, or wear before installation, as debris in the seat can affect concentricity and gripping force. Do not exceed the rated capacity range of the collet, as oversizing the workpiece can damage both the collet and the spindle nose.
