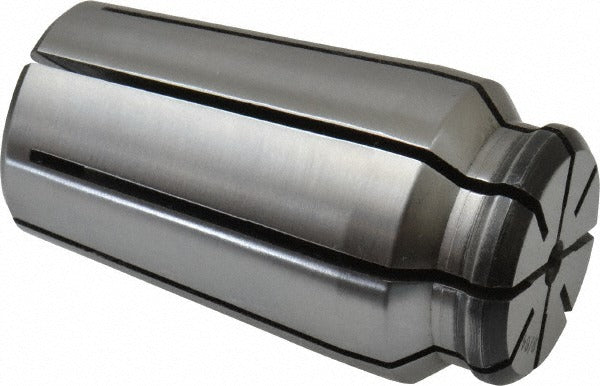

Centaur Rdf - 096 Series 75 Af Collet 1/8 to 9/64 in

Product Description

The CENTAUR RDF - 096 is a Series 75 AF collet designed for use in precision toolholding applications. It accepts shank diameters from 1/8 inch up to 9/64 inch (0.1406 inches), making it suited for small-diameter tooling common in machining, grinding, and routing operations. The collet measures 1.13 inches in overall diameter and 2.02 inches in overall length. Machinists and tool room technicians install this collet into compatible Series 75 AF collet chucks to secure cutting tools, drill bits, or workholding shanks with consistent grip and concentricity.

This collet is intended for use in industrial machine tool setups where Series 75 AF toolholding systems are already in place. Typical applications include precision CNC machining centers, manual mills, and grinding machines operating with small-diameter cutting tools or workpiece shanks. The 1/8 to 9/64 inch capacity range targets fine finishing operations and light material removal passes where accurate tool runout is critical to part quality.

Key Features

• Collet capacity range: 1/8 inch to 9/64 inch (0.1406 inches maximum)
• Series 75 AF collet series for use with compatible toolholding chucks
• Overall diameter of 1.13 inches for proper chuck fitment
• Overall length of 2.02 inches
• Single-piece package quantity with minimum order quantity of one

Compatibility

Designed as an OEM-style replacement or direct fitment collet for machine tool setups using Series 75 AF collet chuck systems.

Installation Notes

Installation should be performed by a qualified machinist or toolroom technician. Disengage and lock out all machine power before removing or installing collets. Ensure the collet bore, taper, and chuck are clean and free of chips or debris before seating the collet. Do not exceed the stated maximum collet capacity, as overloading the collet can cause tool slippage or collet damage.
