Centaur CM-SB-5 1-13/16 5 Gang Welded Box

Product Description

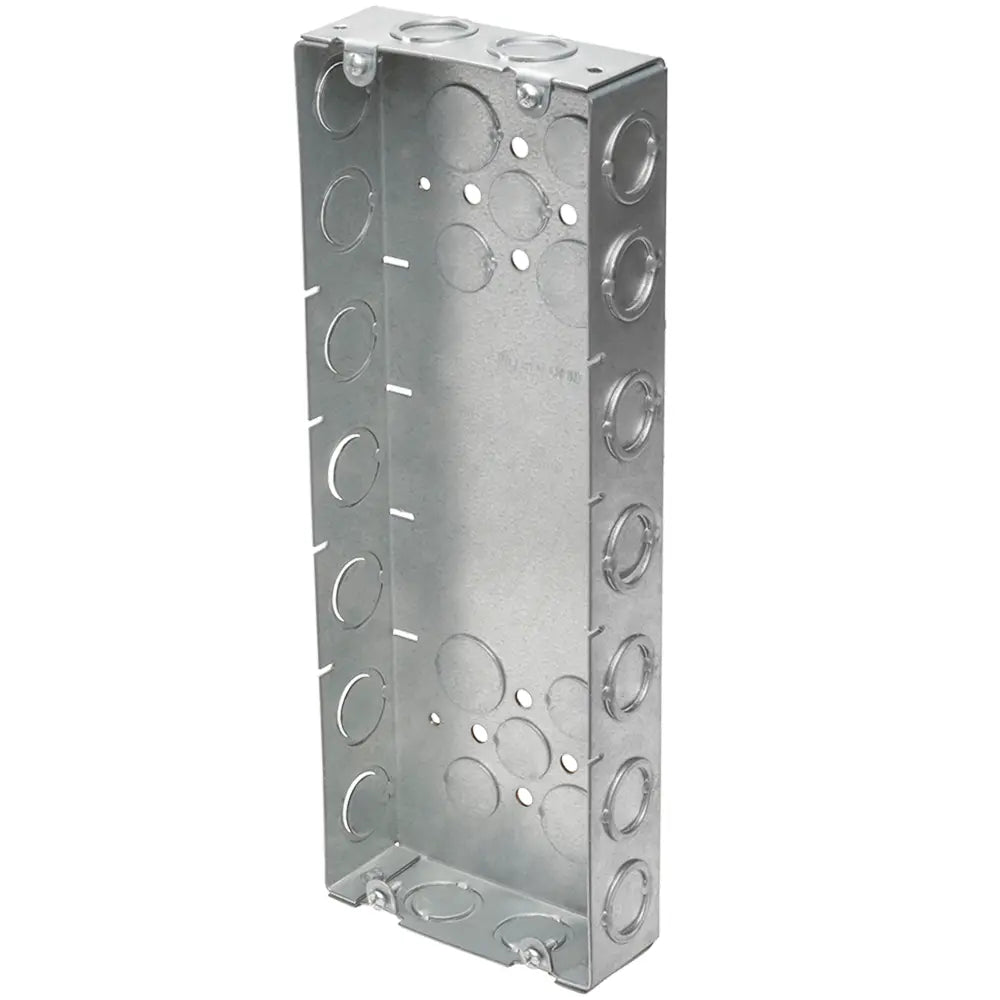

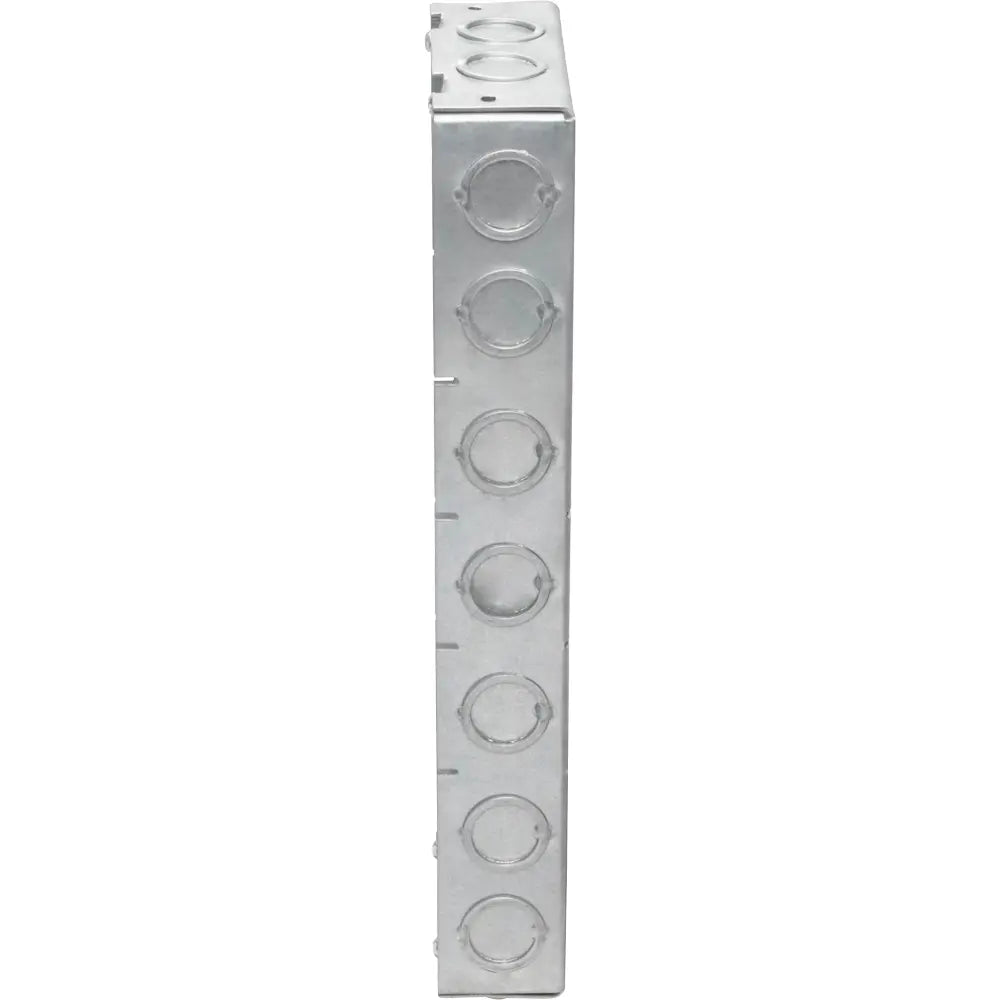

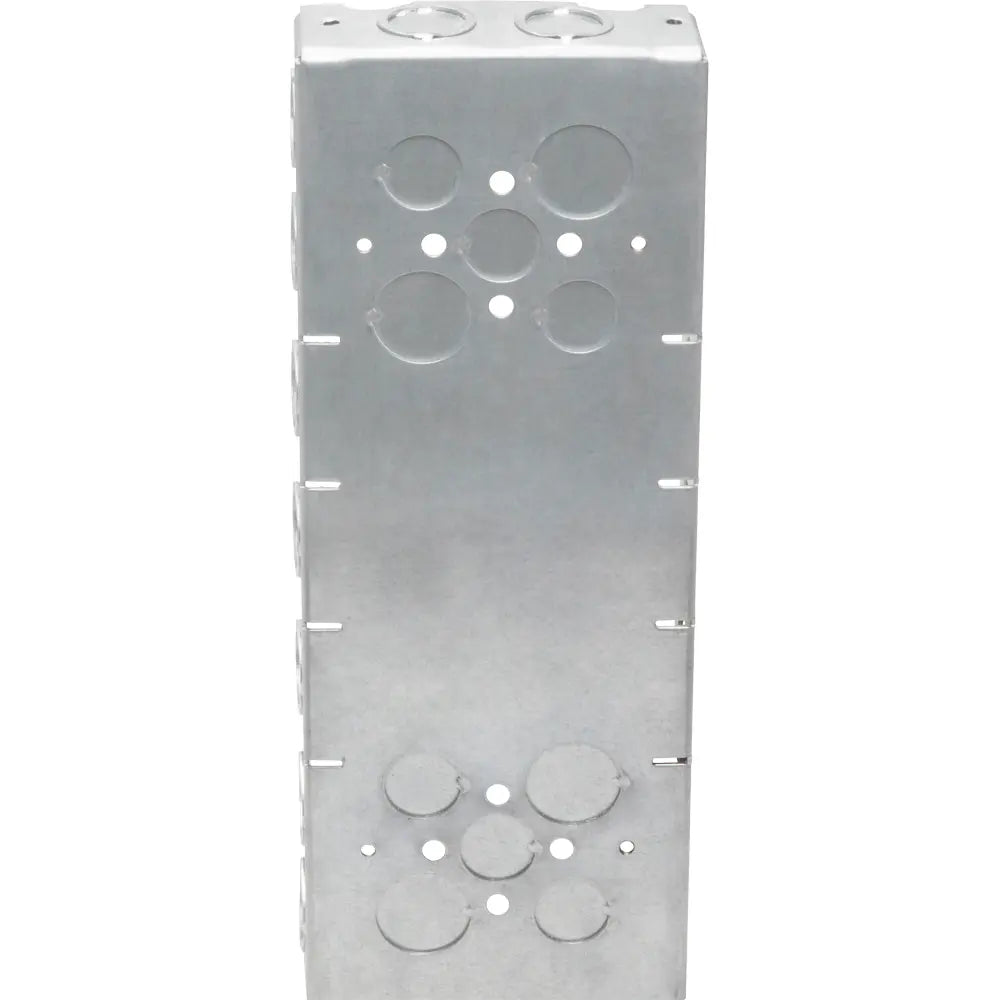

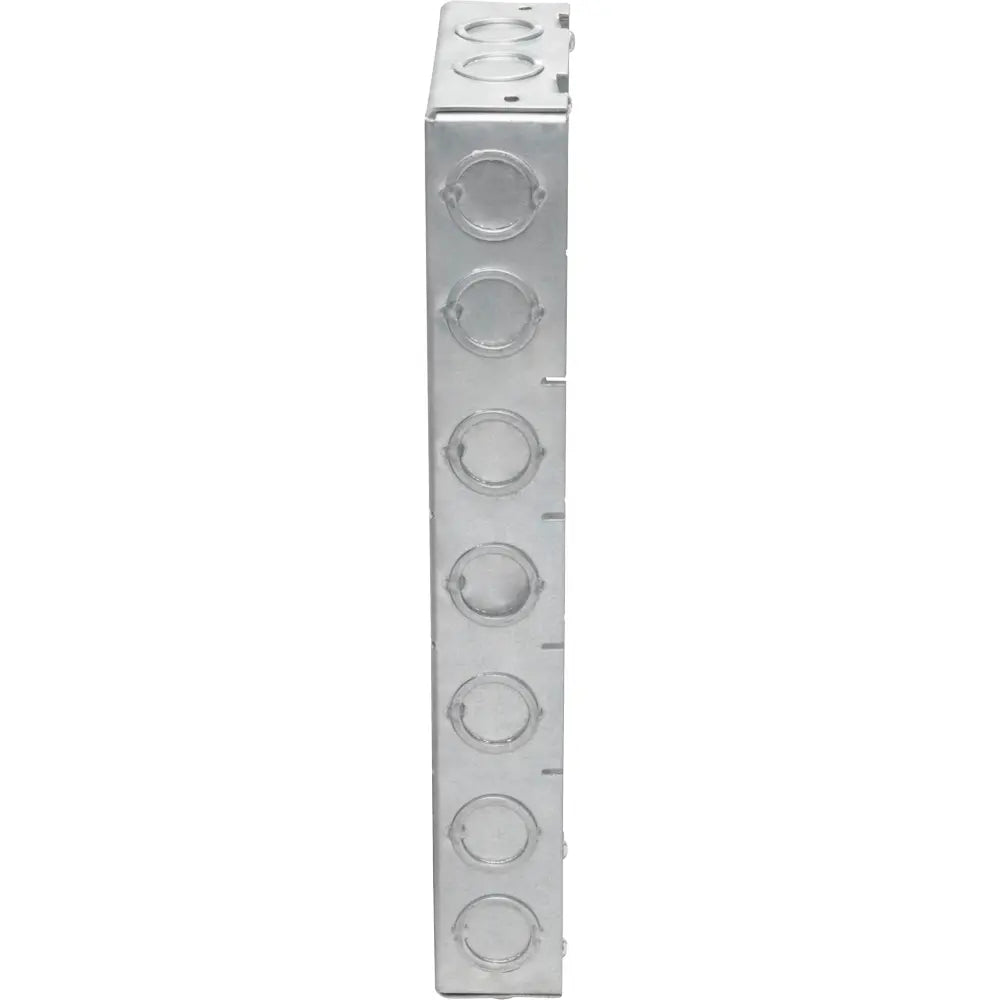

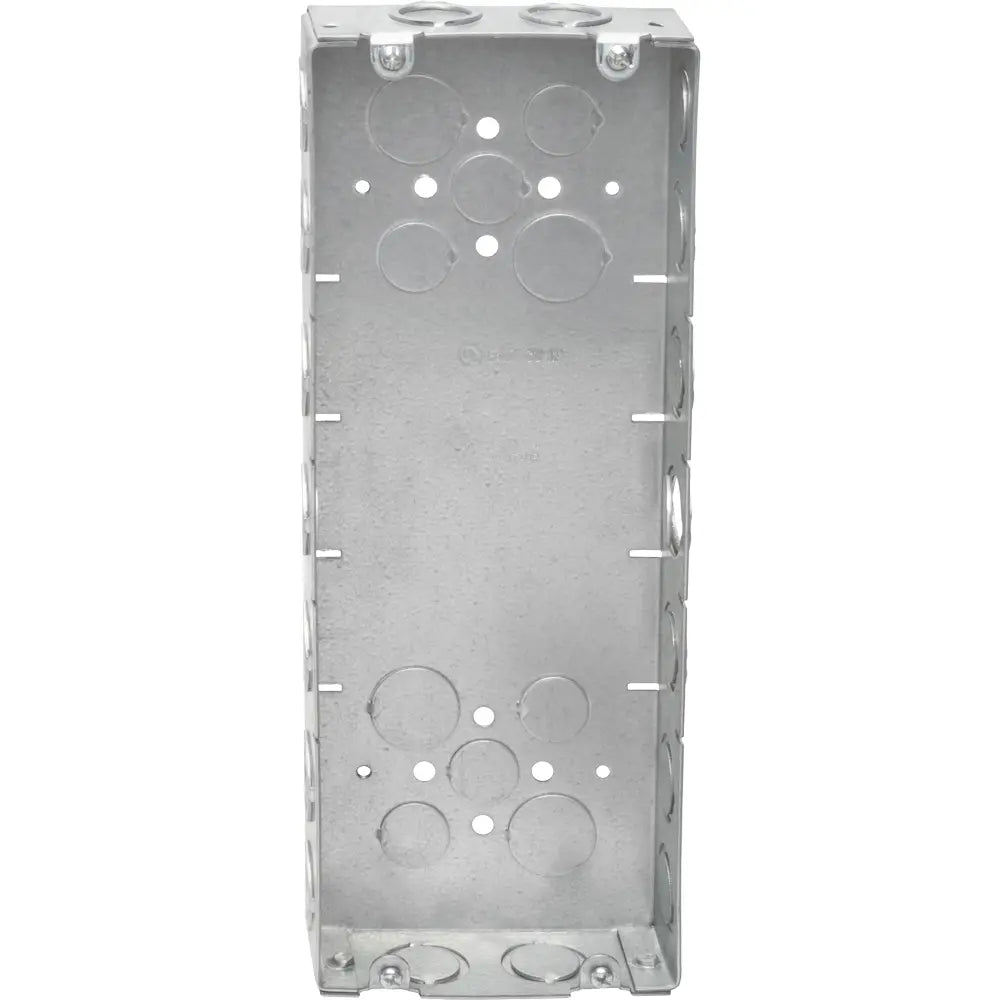

The Centaur CM-SB-5 is a durable five-gang welded box made from steel, ensuring reliability in various electrical installations. It has a depth of one and seven-eighths inches and measures twelve and one-quarter inches wide and four and nine-sixteenths inches high. This product offers a cubic capacity of ninety-four point eight cubic inches, accommodating a range of wiring needs.

• Constructed from sturdy steel material.
• Features multiple knockouts for easy installation.
• Designed for vertical mounting.

Product Highlights

The Centaur CM-SB-5 is suitable for both residential and commercial applications, providing essential support for multiple electrical connections. Its design meets UL standards.

Product Information

Standard Information

• Part Number: 0262-8294
• UPC: 190010381012

Technical Specifications

• Type: Five Gang
• Color: Gray
• Depth: 1.875 inches
• Height: 4.625 inches
• Weight: 1.9 pounds
• Material: Steel
• Mounting: Vertical
• Standard: UL
• Insulated: Non-Insulated
• Knockouts: (10) 1/2 (8) MKO (6) 1/2 (4) 3/4
• Cable Entry: KO
• Cubic Capacity: 94.8 inches
• Country of Origin: CN
