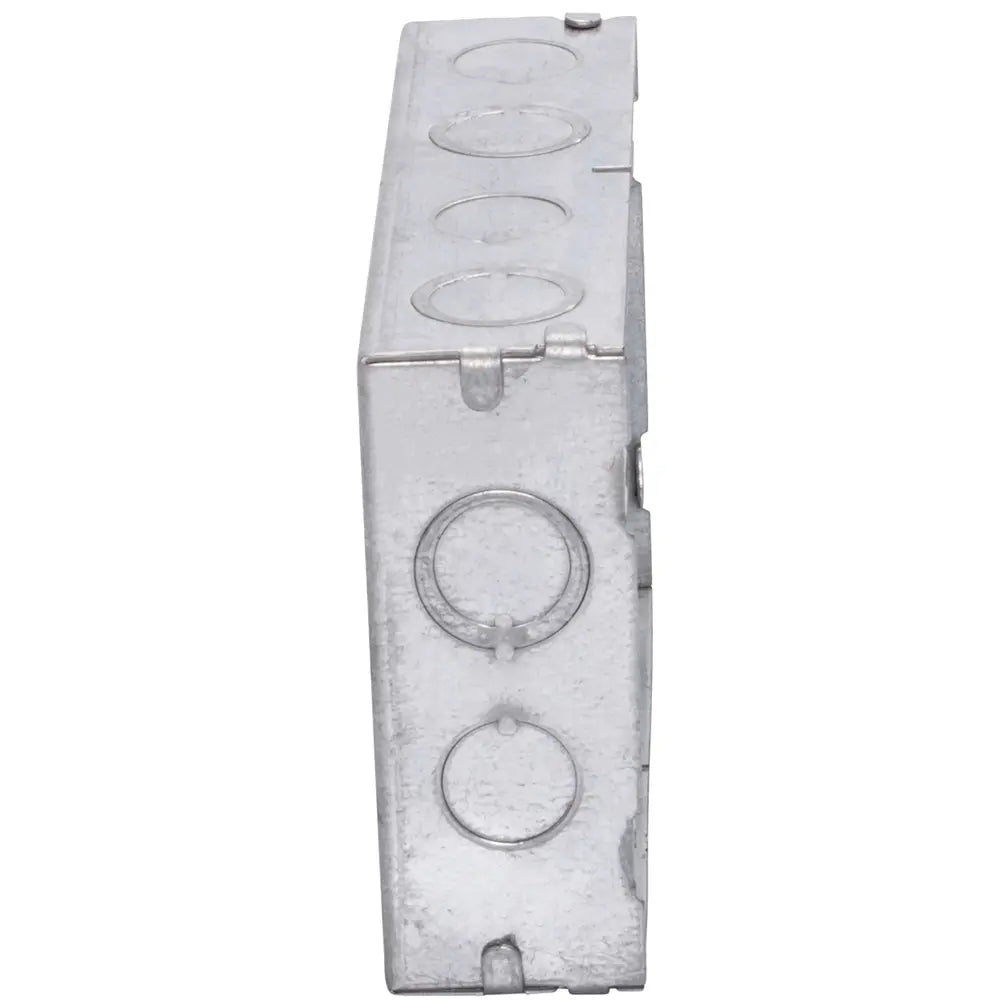

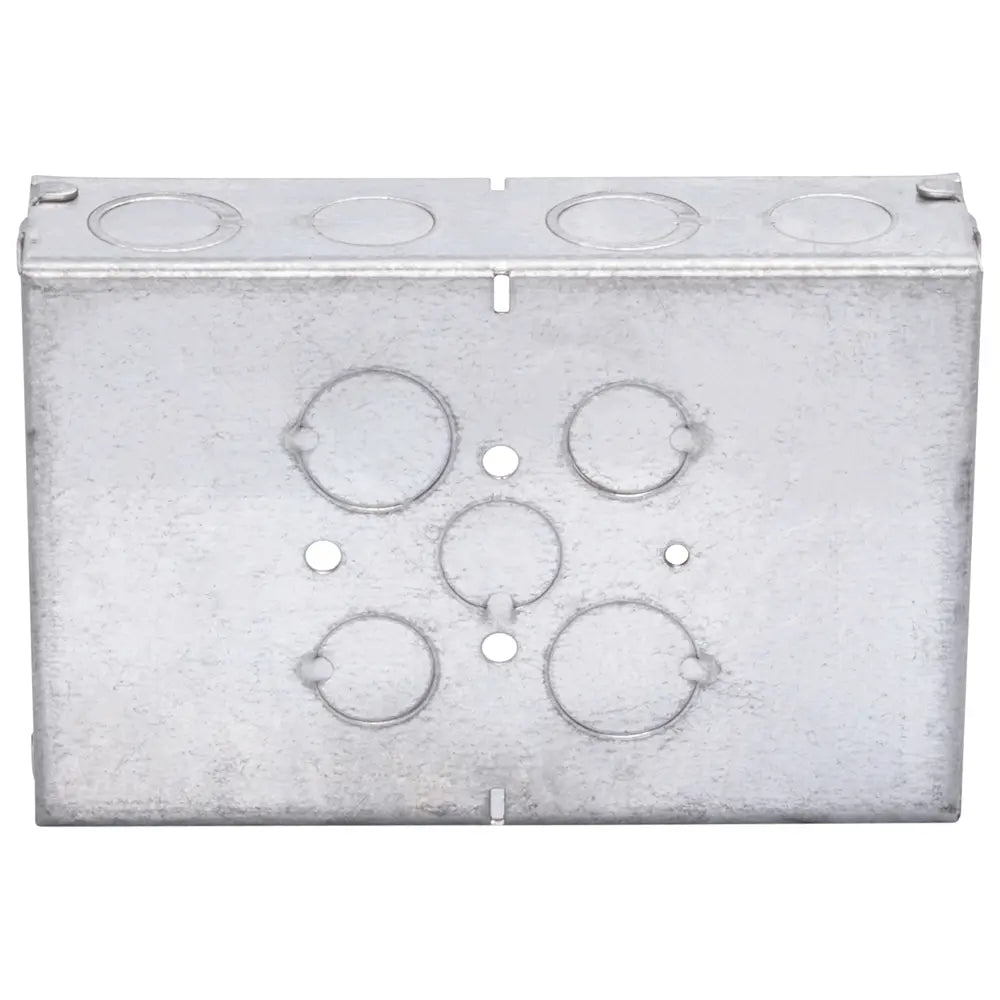

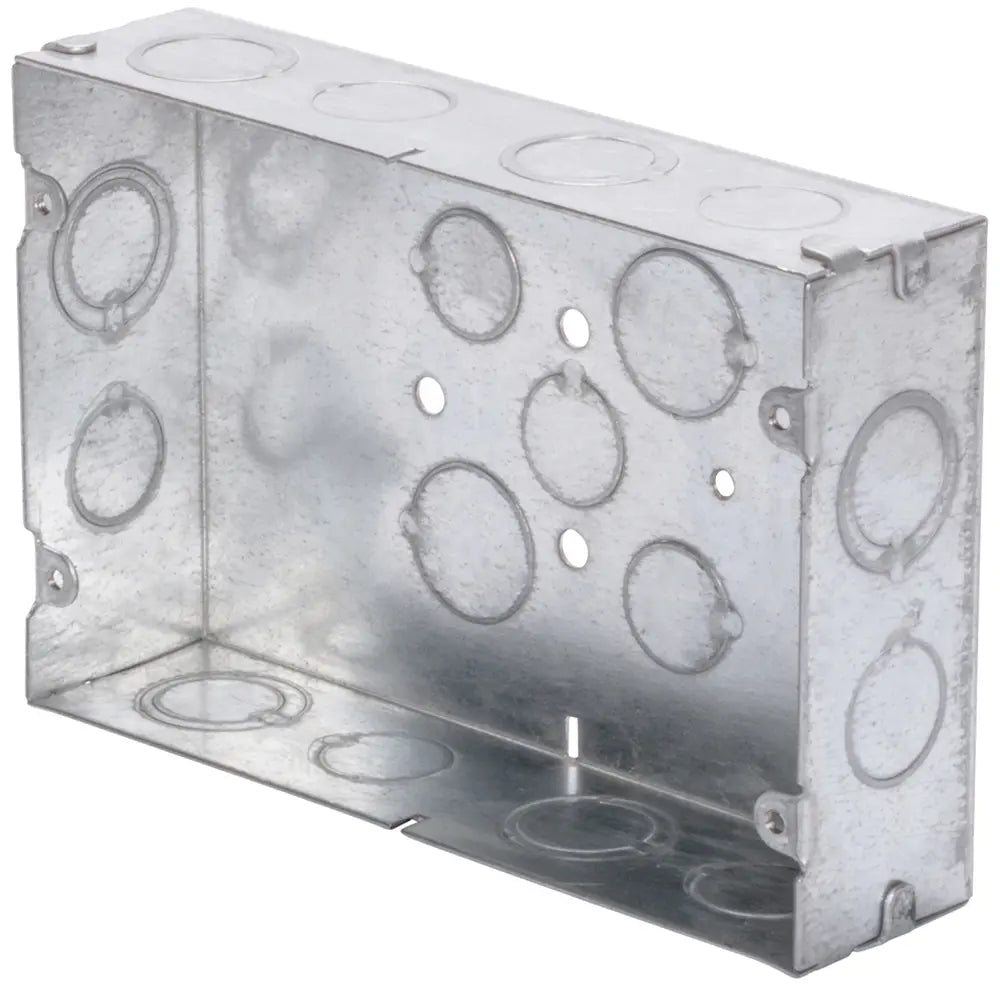

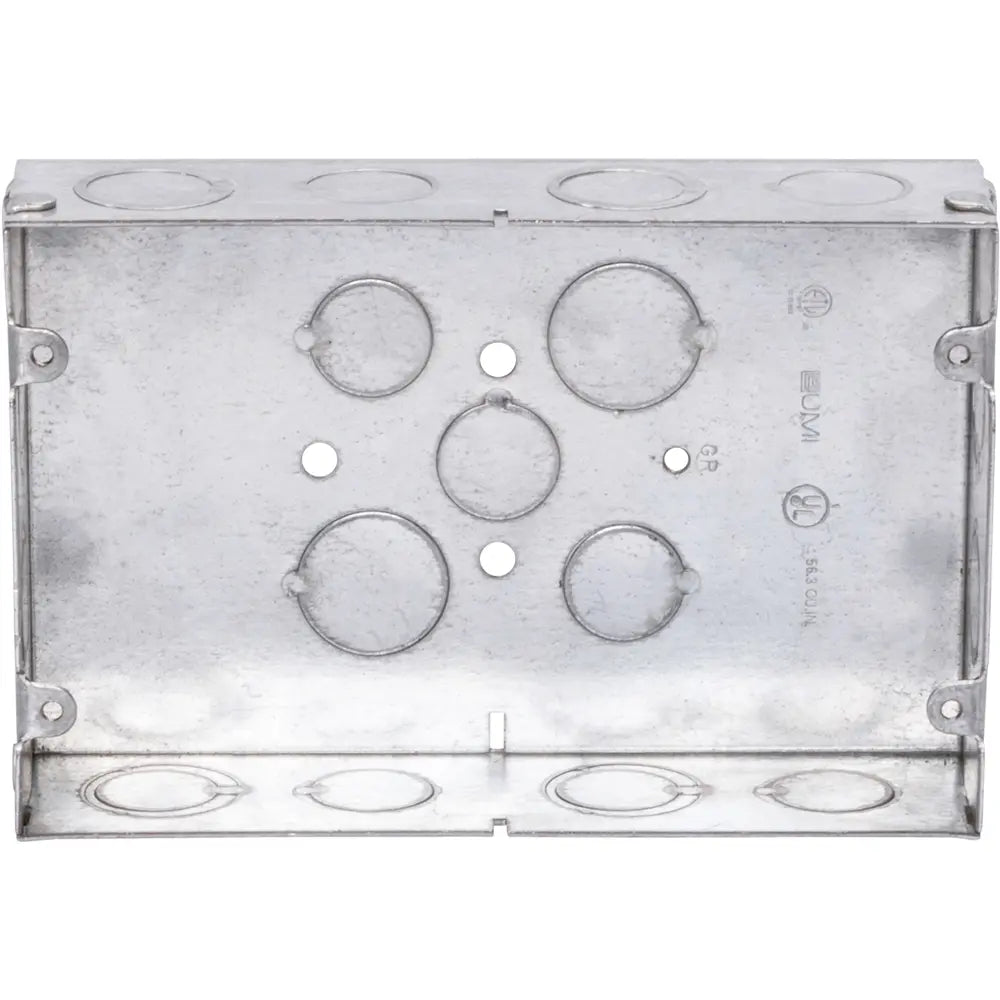

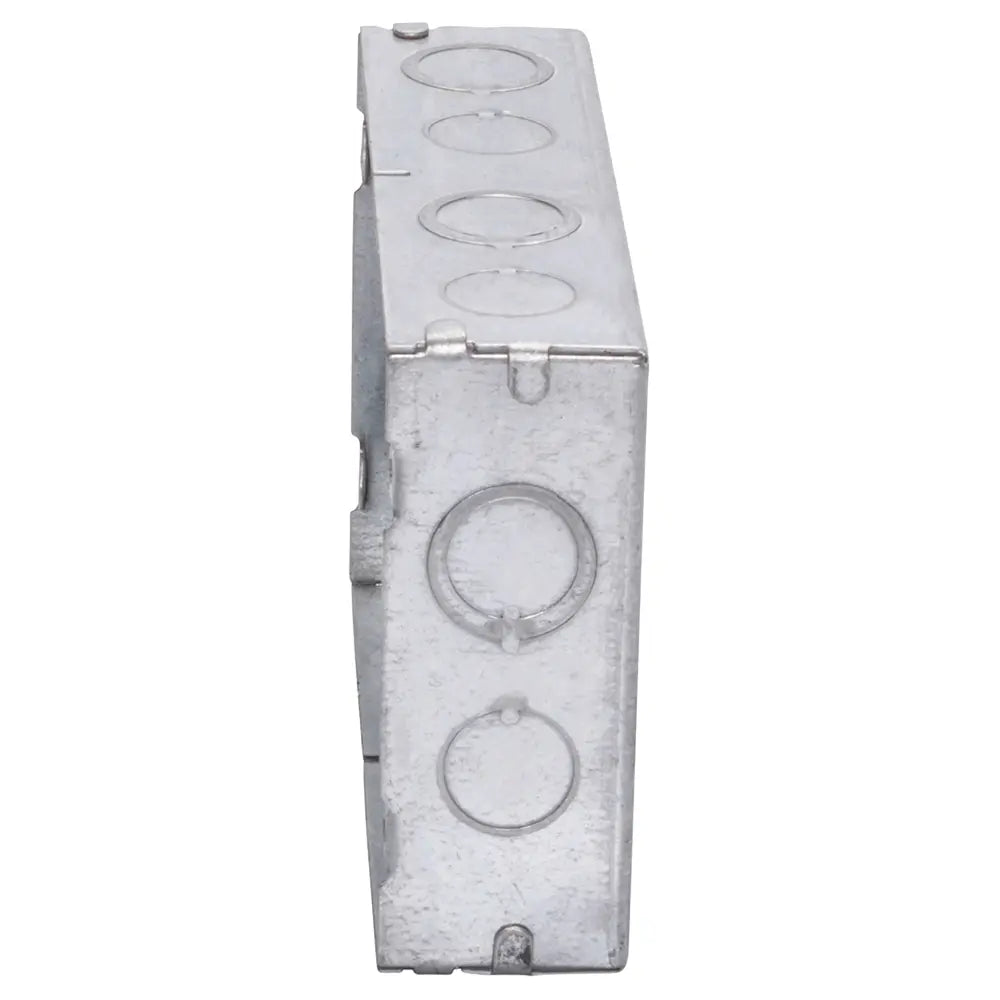

Centaur CM-SB-3 1-13/16 3 Gang Welded Box

Product Description

The Centaur CM-SB-3 1-13/16 3 Gang Welded Box is designed for vertical mounting in electrical installations. This steel switch box features a non-insulated construction with a cubic capacity of sixty-five cubic inches. The overall dimensions of the box are four and a half inches in height, eight and five-eighths inches in width, and one and five-eighths inches in depth. With a weight of one point four pounds, the box offers a compact yet durable option for housing electrical connections.

• Includes multiple knockouts for flexible cable entry.
• Meets UL standards for safety and reliability.
• Robust design suitable for various electrical applications.

Product Highlights

The Centaur CM-SB-3 is suitable for both residential and commercial use, allowing for efficient organization of wires and connections in various environments.

Product Information

Standard Information

• Brand: Centaur
• MPN: CM-SB-3

Technical Specifications

• Type: 3-Gang Welded Box
• Material: Steel
• Height: 4.5 inches
• Width: 8.625 inches
• Depth: 1.625 inches
• Weight: 1.4 pounds
• Insulated: Non-Insulated
• Knockouts: (6) 1/2, (6) MKO, (3) 1/2, (2) 3/4
