Centaur CM-4RB-MKO 4 Octagon Box Welded 1-1/2 Deep

Product Description

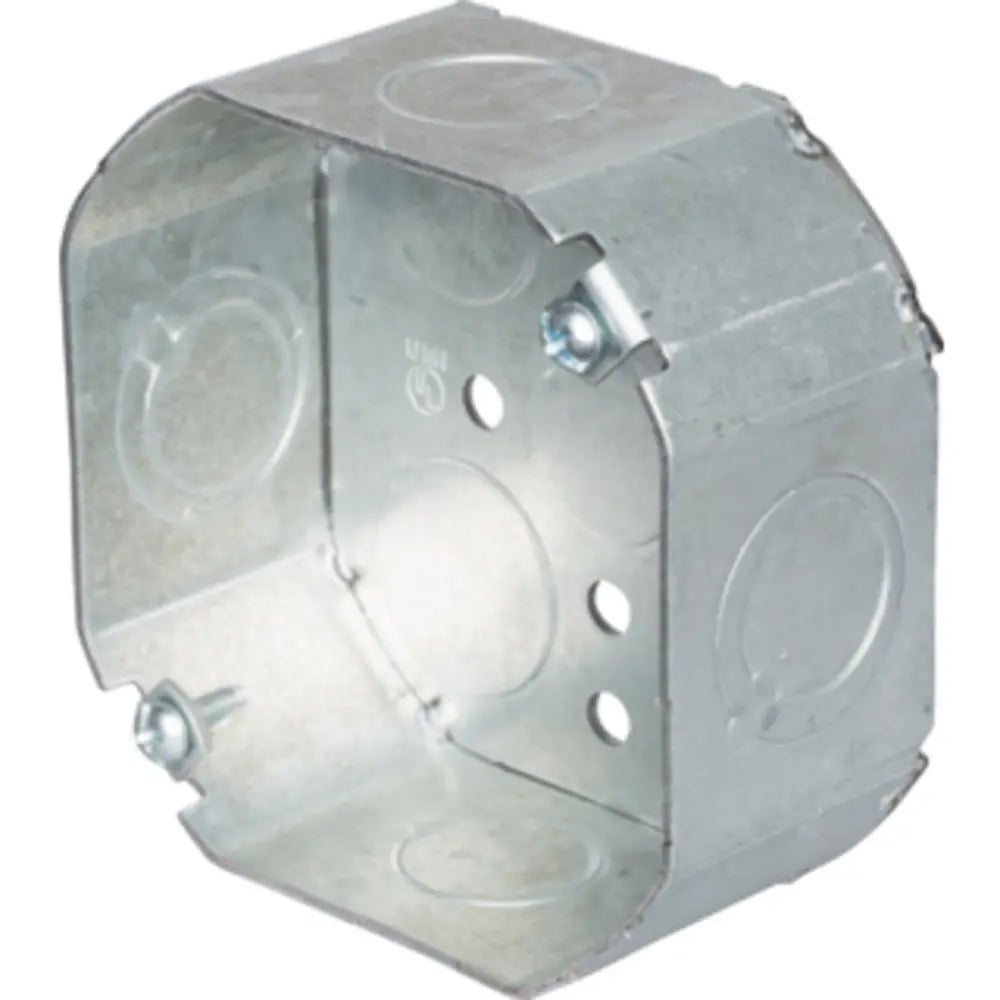

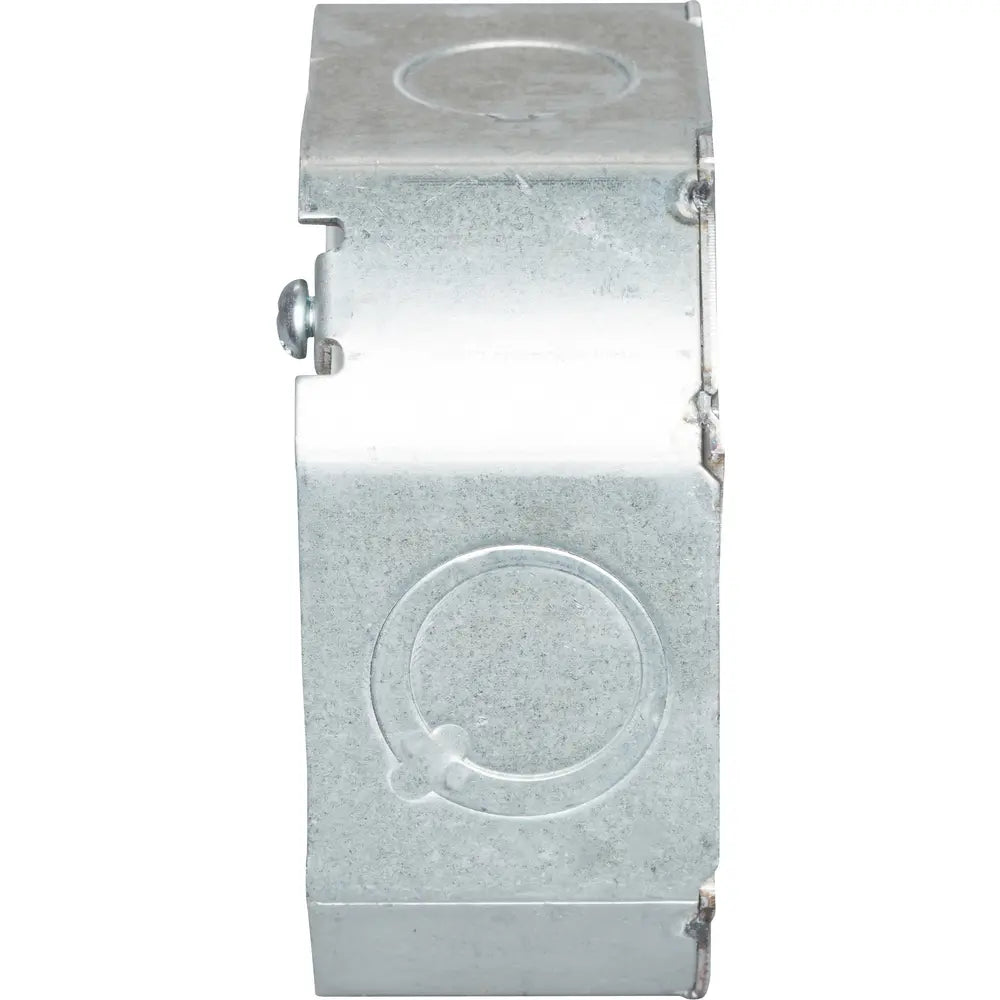

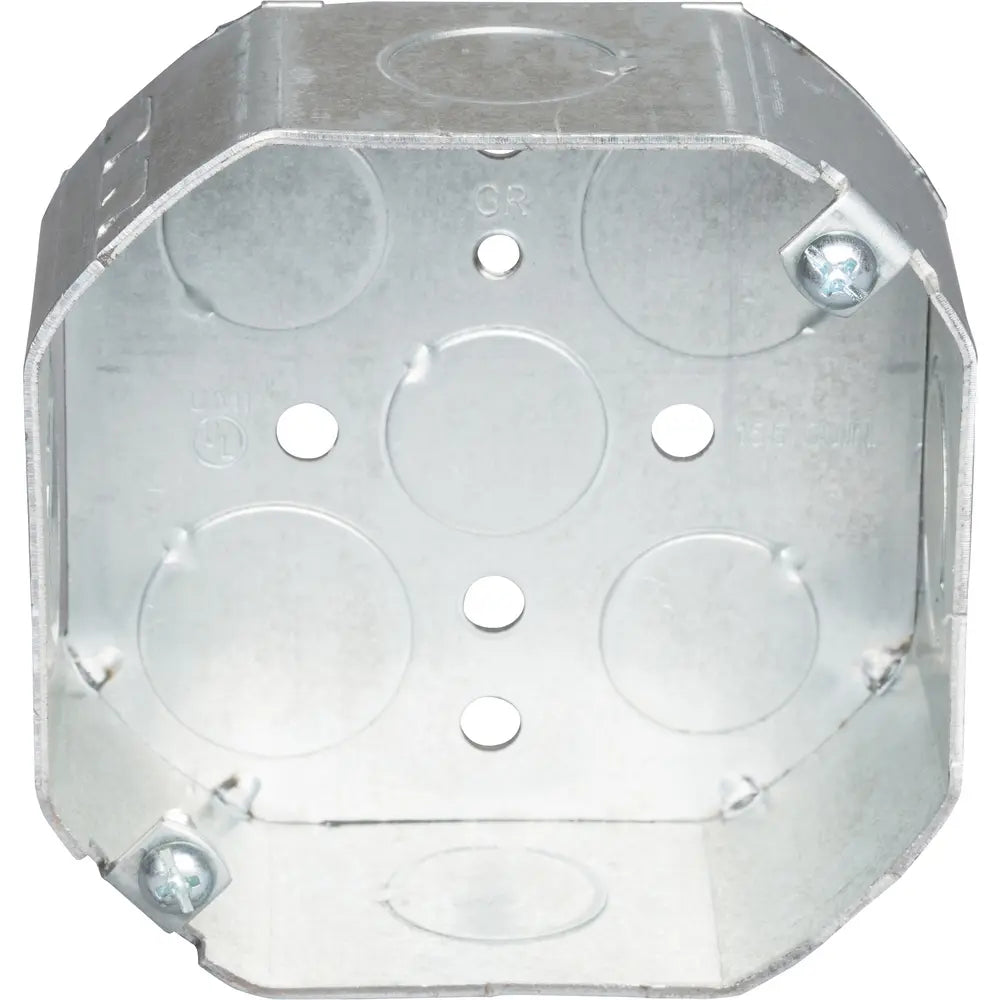

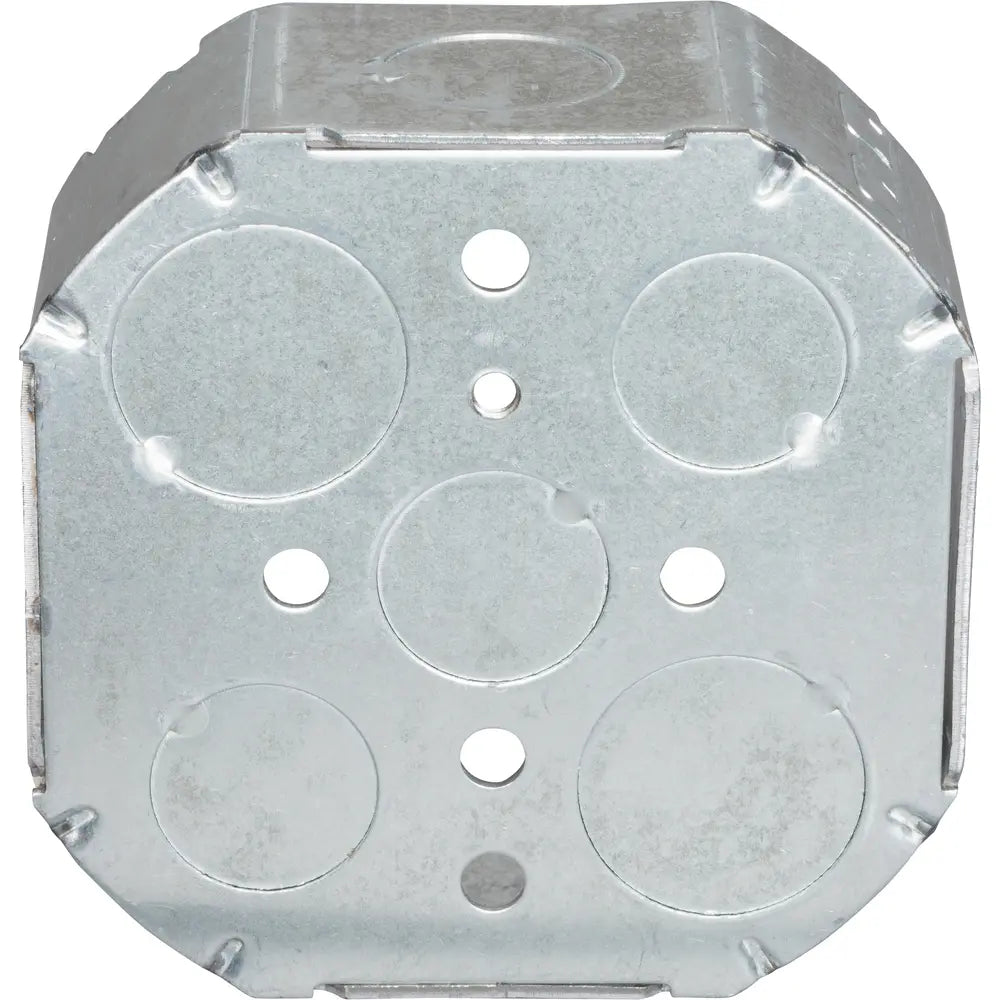

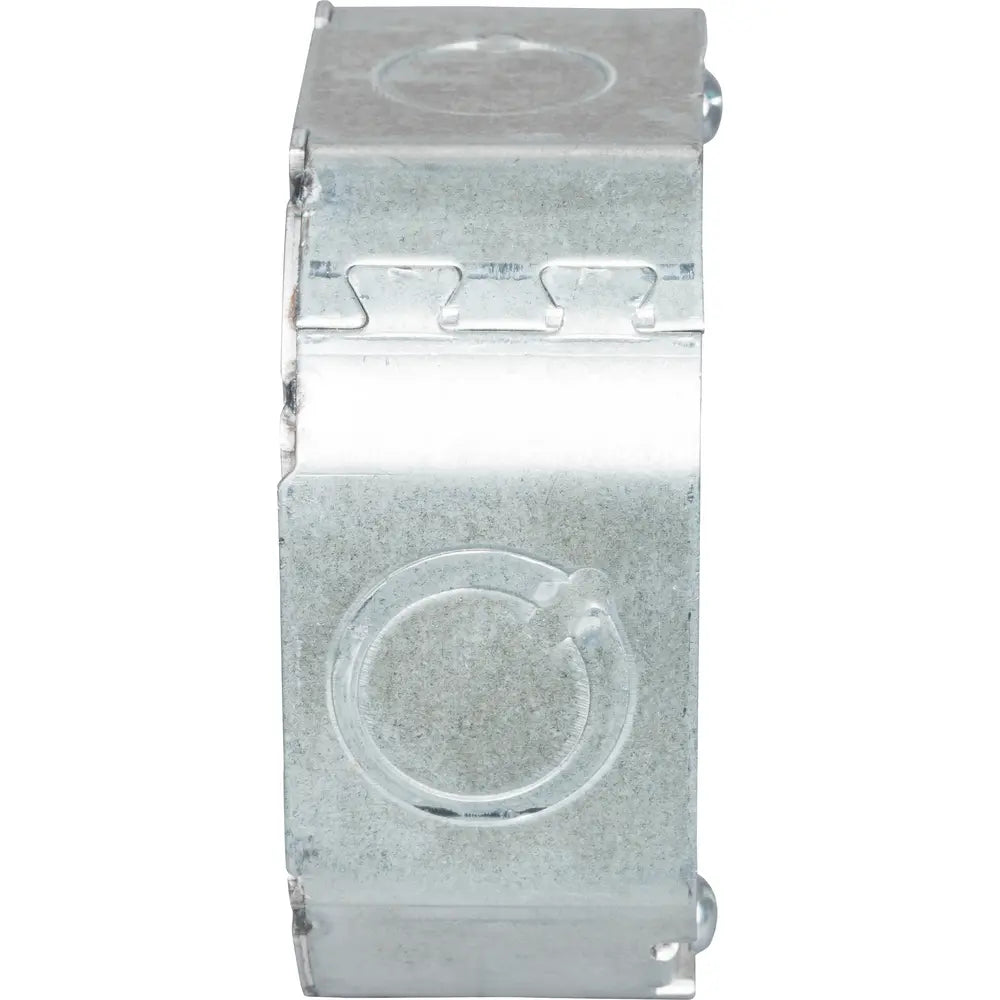

The Centaur CM-4RB-MKO 4 Octagon Box is made of welded, sixteen-gauge steel. It is designed for flush mounting in various electrical applications. This box features a diameter of four inches and a depth of one and a half inches. It has a cubic capacity of fifteen point five, capable of housing multiple wires safely. The box includes multiple knockouts: two half-inch and two MKO on the sides, along with three half-inch and two three-quarter inch on the bottom, enabling flexible connections.

• Welded, durable steel construction
• Multiple knockouts for easy cable entry
• Meets UL standards for safety

Product Highlights

This octagon box is suitable for a variety of electrical installations, providing reliable performance in both residential and commercial settings.

Product Information

Standard Information

• UPC: 190010380480
• Type: Octagon Box

Technical Specifications

• Diameter: 4 inches
• Depth: 1.5 inches
• Width: 4 inches
• Weight: 0.53 pounds
• Material: Steel
• Standard: UL
• Knockouts: 5 (1/2 inch), 2 (3/4 inch), 2 (1/2 inch)
• Cubic Capacity: 15.5 cubic inches
