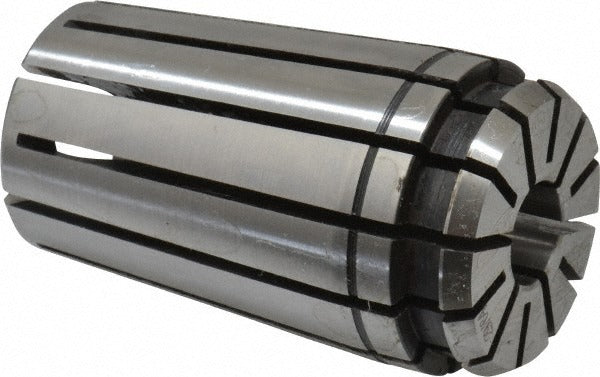

Centaur 70024 Tg/pg 100 Single Angle Collet 0.4531 in

Product Description

The CENTAUR 70024 is a standard single angle collet in the TG/PG 100 series, designed for precision workholding in CNC machining centers and toolholding systems. It accepts a 0.4531 inch (29/64 inch) bore diameter and delivers a total indicator runout (TIR) of 0.0005 inches, making it suitable for applications where concentricity and repeatability are critical. The collet measures 2.38 inches in overall length with a maximum body diameter of 1.38 inches. Machinists and toolroom technicians install this collet into compatible TG/PG 100 toolholders for milling, drilling, and reaming operations.

This collet is intended for use in TG/PG 100 series toolholding systems commonly found in production and job-shop machining environments. The TG style collet design provides a broad clamping range and is used across both vertical and horizontal machining centers. Applications include high-speed milling and precision drilling where low runout is required to maintain part tolerance and extend cutting tool life. It is packaged individually and sold in a minimum order quantity of one.

Key Features

• 0.4531 inch (29/64 inch) bore for precise tool shank engagement
• 0.0005 inch TIR for high concentricity and repeatable tool positioning
• 2.38 inch overall length for standard TG/PG 100 toolholder reach
• 1.38 inch maximum body diameter matches TG/PG 100 series specifications
• Single angle collet design provides consistent clamping force across the contact surface

Compatibility

Designed as a direct-fit replacement for TG/PG 100 series toolholding systems requiring a 0.4531 inch bore collet.

Installation Notes

Installation should be performed by a qualified machinist or toolroom technician familiar with TG/PG 100 series toolholders. Power down and lock out the machine spindle before removing or seating any collet. Inspect the collet bore and toolholder taper for chips, burrs, or wear before assembly. Use the appropriate collet wrench and torque to the toolholder specification provided by the toolholder manufacturer.
