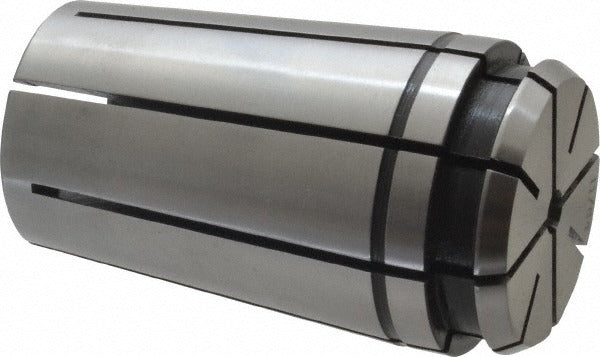

Centaur 70006 Tg/pg 100 Standard Single Angle Collet 0.1719 in

Product Description

The CENTAUR 70006 is a standard single angle collet in the TG/PG 100 series, designed for precision workholding in CNC machining and toolholding applications. It accepts a 0.1719-inch (11/64 inch) bore diameter and delivers a total indicated runout (TIR) of 0.0005 inches, making it suitable for applications that demand close tolerances. With a body diameter of 1.38 inches and an overall length of 2.38 inches, the 70006 fits standard TG/PG 100 collet chucks used across a range of machine tool setups. Machinists, toolroom technicians, and CNC operators working in production or precision environments are the typical end users for this collet.

This collet is intended for use in TG/PG 100 collet chuck systems commonly found on CNC machining centers, lathes, and manual milling machines where consistent gripping force and minimal runout are required. The standard single angle design is well-suited for light to medium material removal operations as well as finish passes where tool concentricity directly affects surface quality and dimensional accuracy. It is a direct fit for any chuck body rated for the TG/PG 100 collet series.

Key Features

• TG/PG 100 series collet — fits standard TG/PG 100 collet chucks
• 0.1719-inch (11/64 inch) bore for precise shank gripping
• 0.0005-inch TIR for high-concentricity toolholding
• 1.38-inch maximum body diameter suits standard TG 100 chuck bores
• 2.38-inch overall length provides stable tool engagement depth
• Standard single angle geometry for broad compatibility within the TG/PG 100 system

Compatibility

Designed as a direct-fit replacement or additional collet for TG/PG 100 series collet chuck systems.

Installation Notes

Installation is performed by qualified machinists or toolroom technicians. Always power down and lock out the machine spindle before inserting or removing a collet. Ensure the collet bore, chuck body, and clamping nut are clean and free of chips or debris before seating the collet, as contamination directly affects runout. Follow the machine tool manufacturer's recommended clamping torque procedure for TG/PG 100 collet nuts.
