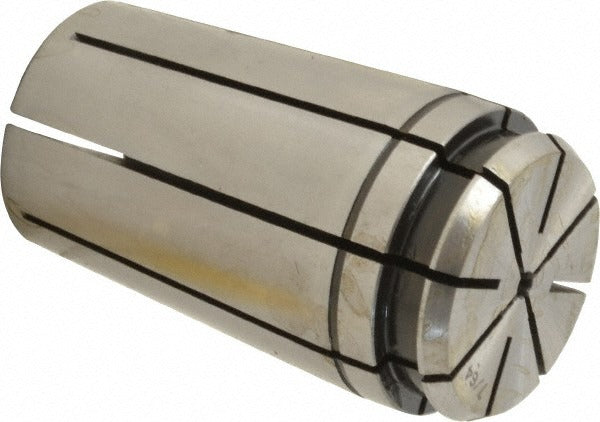

Centaur 70002 Tg/pg 100 Standard Single Angle Collet

Product Description

The CENTAUR 70002 is a standard single angle collet designed for TG/PG 100 tooling systems used in precision machining applications. With a 0.1094 inch (7/64 inch) bore, a 1.38 inch maximum body diameter, and an overall length of 2.38 inches, this collet is built for accurate workholding and tool clamping in milling and turning operations. A total indicator runout (TIR) rating of 0.0005 inches reflects the close tolerances required for consistent, repeatable cuts. Machinists and tool room technicians install this collet in compatible TG/PG 100 collet chucks to hold round shank tooling and workpieces during machining.

This collet is suited for use in production and job shop environments where TG/PG 100 collet chuck systems are already in service. It is a direct-fit replacement or supplemental collet for shops running small-diameter tooling in vertical machining centers, horizontal mills, and similar equipment that accept the TG/PG 100 collet series. The 7/64 inch nominal bore size makes it appropriate for small end mills, drills, and round stock within that diameter range.

Key Features

• TG/PG 100 collet series for broad compatibility with standard collet chuck bodies
• 0.1094 inch (7/64 inch) bore diameter for small-shank tooling and workpieces
• 0.0005 inch TIR for high-precision, low-runout tool holding
• 1.38 inch maximum body diameter fits standard TG/PG 100 chuck profiles
• 2.38 inch overall length provides adequate tool engagement depth
• Single angle collet design for secure, concentric clamping

Compatibility

Designed for use with TG/PG 100 series collet chuck systems that accept standard single angle collets with a 0.1094 inch bore. Verify chuck series and bore size requirements before ordering.

Installation Notes

Installation should be performed by a qualified machinist or toolroom technician. Before inserting or removing the collet, ensure the machine spindle is fully powered down and brought to a complete stop. Use the appropriate collet wrench or spanner for the TG/PG 100 chuck to seat and tighten the collet properly. Inspect the collet and chuck bore for debris or damage before assembly to maintain the rated TIR performance.
