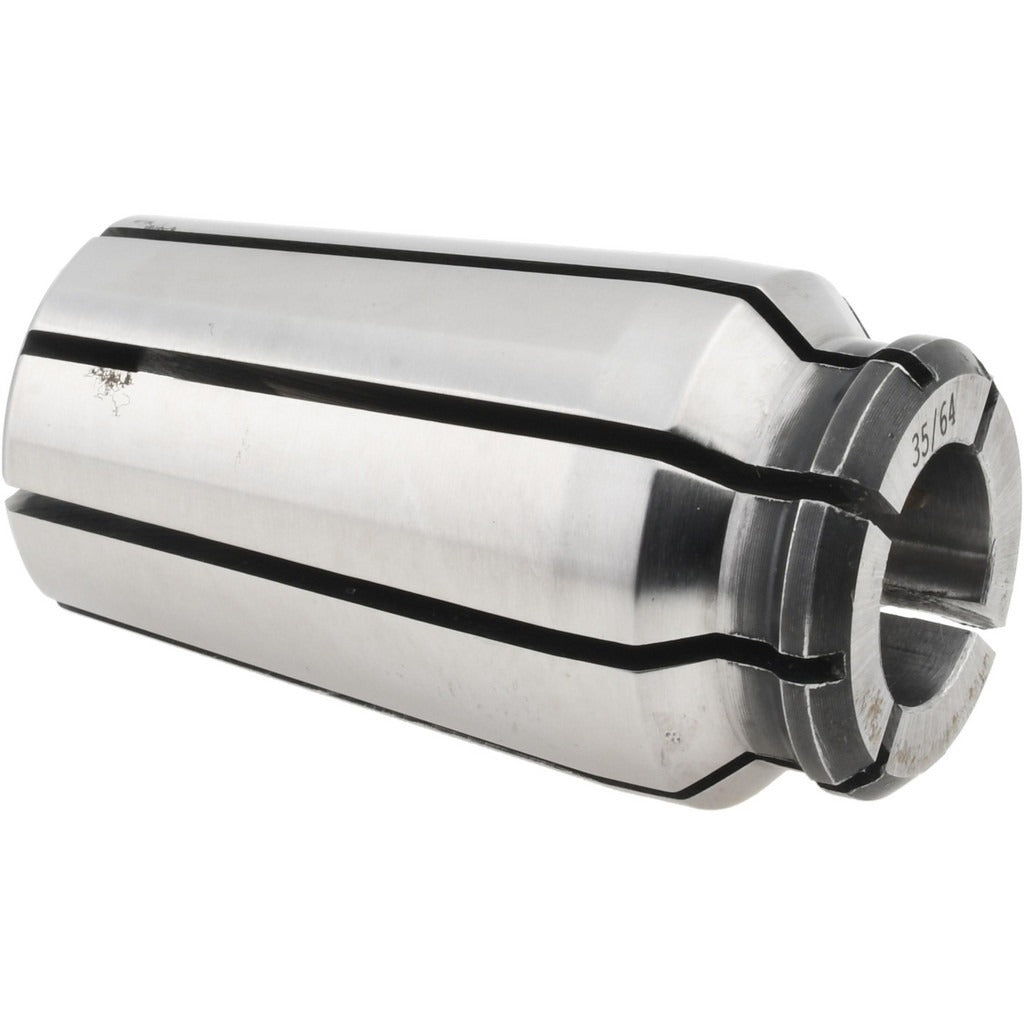

Centaur 50047 TG75 PG75 Collet Set 13 Piece 3/4 Inch

Product Description

The CENTAUR 50047 is a 13-piece collet set designed for TG75 and PG75 single-angle collet systems used in CNC machining, milling, and toolholding applications. The set covers a capacity range from 3/8 inch through 3/4 inch in 1/32-inch increments, giving machinists and toolroom technicians a broad selection of bore sizes in a single package. The single-angle collet design provides consistent gripping force and concentricity across the included sizes. At 2.7 pounds, the set is compact enough for bench storage or tool crib organization. This is a working toolholding consumable, not a precision gauge component, and is suited to production and job-shop environments alike.

This collet set is used in machine tool setups where TG75 or PG75 collet chucks are installed. Typical applications include vertical machining centers, horizontal mills, and toolroom lathes equipped with TG or PG 75-series collet chuck bodies. The 13 included sizes address the most common shank diameters encountered in end mills, drills, and reamers within the 3/8-inch to 3/4-inch range. Machinists working with imperial tooling will find the 1/32-inch increment coverage practical for production changeovers and mixed-shank tooling inventories.

Key Features

• 13 collets included, covering sizes from 3/8 inch to 3/4 inch
• 1/32-inch size increments for fine-resolution toolshank coverage
• Single-angle collet system for uniform gripping and concentricity
• Compatible with TG75 and PG75 collet chuck series
• Sizes included: 3/8, 13/32, 7/16, 15/32, 1/2, 17/32, 9/16, 19/32, 5/8, 21/32, 11/16, 23/32, 3/4 inch
• Set weight of 2.7 pounds supports easy transport and storage

Compatibility

Designed for use with TG75 and PG75 series collet chuck bodies requiring single-angle collets in the 3/8-inch to 3/4-inch capacity range.

Installation Notes

Collet installation should be performed by a qualified machinist or toolroom technician familiar with TG and PG series collet systems. Always de-energize and lock out the machine spindle before seating or removing collets. Ensure the collet bore, chuck taper, and clamping nut are clean and free of chips or coolant residue before assembly. Follow the machine tool manufacturer's torque and clamping procedures for the specific chuck body in use.
