Centaur 50046 TG75 PG75 Collet Set 22 Piece 3/4 in

Product Description

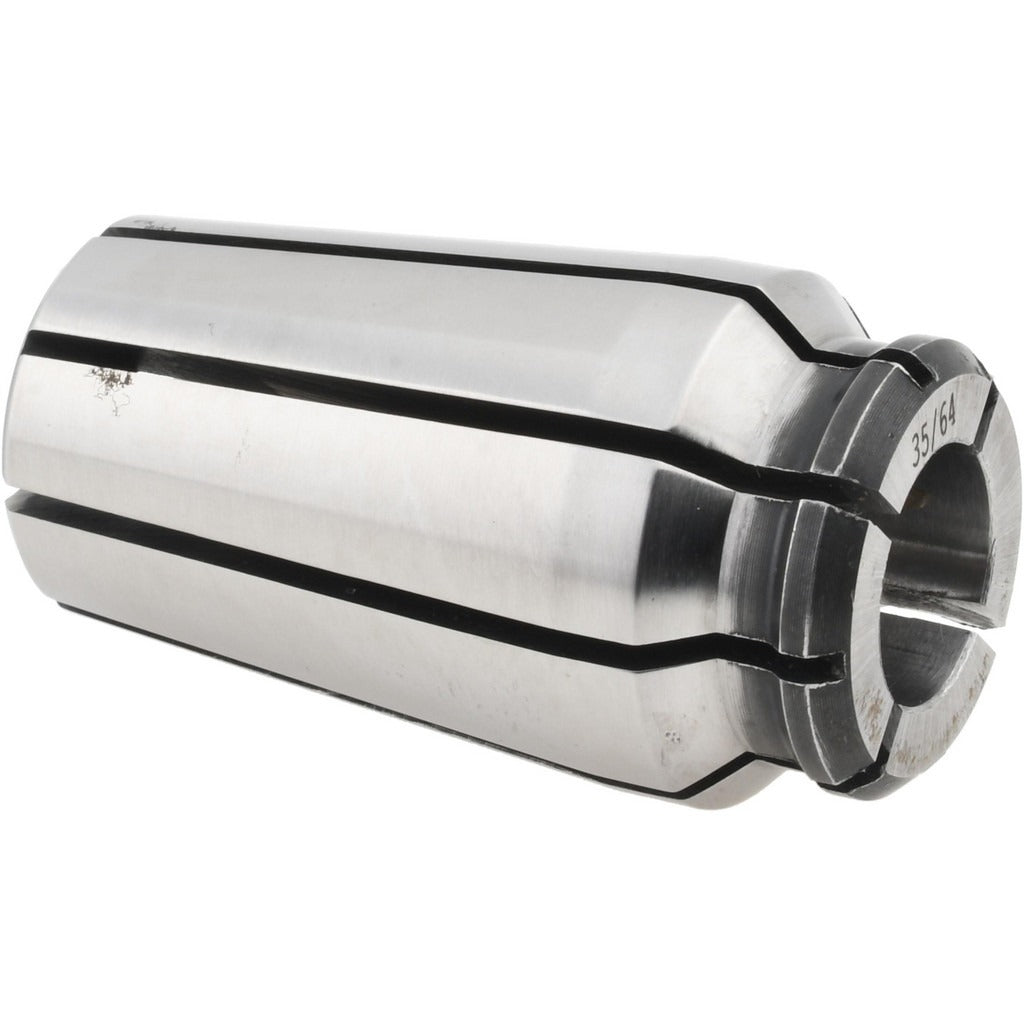

The CENTAUR 50046 is a 22-piece collet set designed for TG75 and PG75 tooling systems using a single-angle collet design. The set covers a capacity range from 0.0938 inches (3/32 inch) up to 0.75 inches (3/4 inch), with size increments of 1/32 inch across all 22 collets. This type of collet set is used in precision machining environments to securely hold round-shank cutting tools in compatible spindles and tool holders. Machinists and tooling technicians responsible for CNC or manual milling setups will find this set provides broad coverage across common shank sizes without needing individual collet procurement.

The 50046 collet set is suited for production and job-shop machining environments where TG75 or PG75 collet chucks are in use. The full 22-piece range covers fractional inch shank sizes commonly encountered in milling, drilling, and reaming operations. Having the complete incremental set on hand reduces tooling changeover delays and supports a wide variety of cutting tool shank diameters in a single kit. Typical users include CNC machinists, tool crib personnel, and machine shop supervisors managing multiple spindle setups.

Key Features

• 22-piece set covers 0.0938 inch to 0.75 inch capacity in 1/32 inch increments
• Compatible with TG75 and PG75 collet systems using a single-angle collet design
• Includes all fractional inch sizes from 3/32 inch through 3/4 inch
• Full incremental coverage reduces the need for individual collet sourcing
• Packaged as a single kit (package quantity of 1 set)

Compatibility

Designed for use with TG75 and PG75 single-angle collet chucks and compatible tooling holders requiring collets in the 3/4 inch maximum capacity class.

Installation Notes

Collet installation and removal should be performed by a qualified machinist familiar with the specific collet chuck system in use. Always ensure the spindle or tool holder is fully de-energized and at a complete stop before changing collets. Clean collet tapers and chuck bores before seating to ensure proper tool runout and clamping force. Refer to the machine tool manufacturer torque specifications for collet nut tightening — do not use impact tooling on collet nuts.
