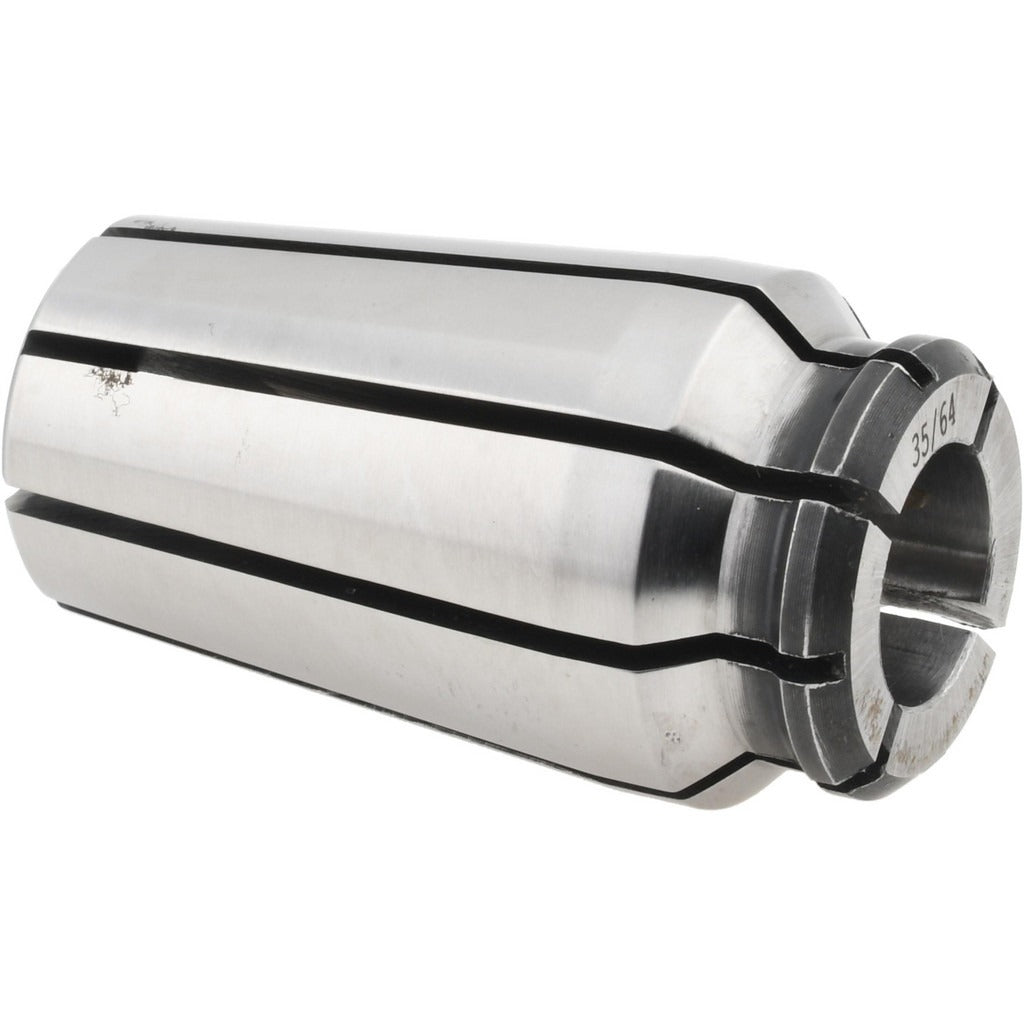

Centaur 50045 TG75 PG75 Collet Set 25 Piece 3/4 Inch

Product Description

The CENTAUR 50045 is a 25-piece single angle collet set designed for TG75 and PG75 toolholding systems. It covers a capacity range from 3/8 inch through 3/4 inch in 1/64-inch increments, giving machinists and toolroom technicians broad coverage across common shank sizes without switching collet systems. The set is built around a single angle interface, which provides consistent clamping force and runout control when properly seated in a compatible toolholder. At 5 pounds, the full set is compact enough for bench storage or toolcrib organization. Installation and use fall within standard machining and toolholding practice.

This collet set is suited for CNC machining centers, manual mills, and toolroom equipment configured for the TG75 or PG75 collet system. The 25 included collets span the most frequently used shank diameters in that range, making the set practical for shops that run varied tooling across a single machine or a group of machines sharing the same collet series. The 1/64-inch increment spacing reduces the need for adapters or intermediate bushings when fitting close-tolerance tool shanks.

Key Features

• 25-piece set covering 3/8 inch through 3/4 inch in 1/64-inch increments
• Single angle collet system for consistent seating and clamping force
• Compatible with TG75 and PG75 toolholding series
• Includes 25 individual collet sizes: 13/32, 27/64, 7/16, 29/64, 15/32, 31/64, 1/2, 33/64, 17/32, 35/64, 9/16, 37/64, 19/32, 39/64, 5/8, 41/64, 21/32, 43/64, 11/16, 45/64, 23/32, 47/64, 3/4, 25/64, and 3/8
• Organized as a complete set for efficient toolcrib stocking and inventory control

Compatibility

Designed for use with TG75 and PG75 series collet toolholders that accept single angle collets in the 3/8 inch through 3/4 inch capacity range.

Installation Notes

Collet installation should be performed by a qualified machinist or toolroom technician familiar with TG/PG toolholding systems. Before installing or removing collets, ensure the machine spindle is fully stopped and all power is isolated per shop lockout/tagout procedures. Collets should be inspected for damage, debris, and proper seating in the toolholder before tightening. Do not exceed the toolholder manufacturer's specified torque for the collet nut.
