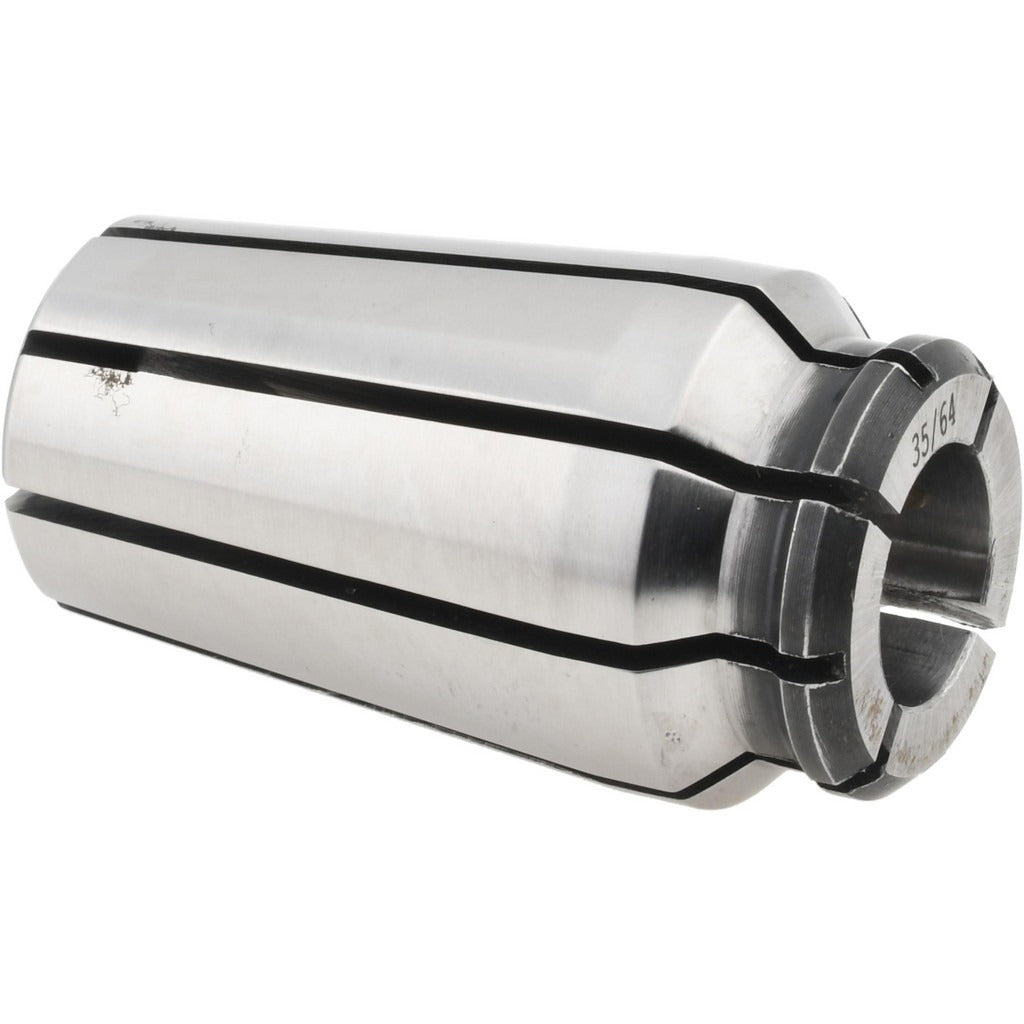

Centaur 50044 Collet Set TG75 PG75 43 Piece 3/4 Inch

Product Description

The CENTAUR 50044 is a 43-piece collet set designed for TG75 and PG75 single-angle collet systems used in CNC machining, milling, and toolholding applications. The set covers a capacity range from 0.0938 inches (3/32 inch) up to 0.75 inches (3/4 inch), with size increments of 1/64 inch to provide precise toolholding across a wide range of shank diameters. The complete 43-piece assortment eliminates the need to source individual collets, making it a practical solution for shops that run varied tooling. Machinists and toolroom technicians are the primary installers of this set.

This collet set is suited for machine shops running TG75 or PG75 toolholding systems, including CNC machining centers, vertical mills, and manual milling machines that accept the TG/PG 75 collet series. The single-angle collet design is common in production environments where consistent gripping force and runout control are required across multiple tool diameters. The 1/64-inch increment spacing ensures coverage for fractional shank tooling throughout the full capacity range of the system.

Key Features

• 43-piece set covering 0.0938 to 0.75 inches in 1/64-inch increments
• Compatible with TG75 and PG75 single-angle collet systems
• Single-angle collet design for consistent gripping and reduced runout
• Complete fractional inch coverage eliminates individual collet sourcing
• Set weight of 8.8 pounds suited for toolroom or machine-side storage

Compatibility

Designed for use with TG75 and PG75 series single-angle collet toolholding systems accepting collets with a maximum capacity of 3/4 inch.

Installation Notes

Collet installation and removal should be performed by a qualified machinist with the spindle fully stopped and machine power locked out per shop safety procedures. Use the appropriate collet nut and spanner wrench specified for the TG75 or PG75 toolholder to achieve proper seating. Inspect collet bore and taper surfaces for chips or debris before installation, as contamination will directly affect runout and gripping force. Do not exceed the maximum capacity rating of any individual collet in the set.
