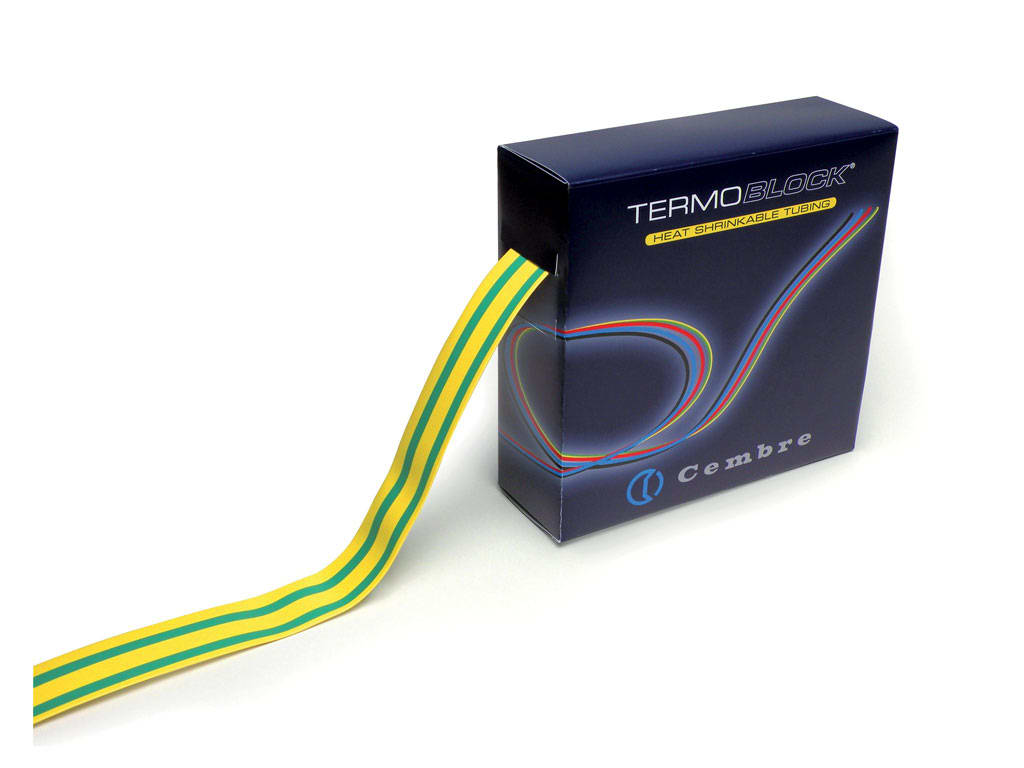

Cembre TBS95X10Y/G Heat Shrink Tubing 9.5mm

Product Description

The CEMBRE TBS95X10Y/G is a yellow/green heat shrink tubing, 9.5mm in size. This durable polyolefin tubing is designed for earth cable identification and insulation. It features a 2:1 shrink ratio and is halogen-free, ensuring safety and environmental responsibility. UL approved, it provides reliable protection for wiring in demanding environments.

• Durable
• For earth cable identification
• For insulation

Product Highlights

Provides insulation and protection for electrical conductors, connections, and terminations. Widely used in various industrial sectors.

Product Information

Standard Information

• Brand: CEMBRE
• Manufacturer Part Number: TBS95X10Y/G
• Country of Origin: China

Technical Specifications

• Manufacturer Code: TBS95X10Y/G
• UL approval: Yes
• With inner glue: No
• Inner diameter after heat-shrink: 4.80
• Wall thickness after shrinking: 0.60
• Inner diameter before heat-shrink: 9.50
• Shrink rate: 2:1
• Printable: No
• Nominal diameter inch: 3/8 inch
• Brand: Cembre
• Material: Polyolefin
• Type: Thin-walled
• Net Weight: 0.21900000
• Operating temperature: -55...125 °C
• Length: 10.00
• Halogen free: Yes
• Minimum operating temperature: -55 °C
• Maximum operating temperature: 125 °C
• Tensile strength after thermal ageing: 7.3 N/mm²
• Dielectric strength according to IEC 243: 15 kV/mm
• Volume resistance according to IEC 93: 10^14
• Minimum shrinkage temperature: 70 °C
• Full shrinkage temperature: 110 °C
• Customs code: 39173200
• Elongation at break after thermal ageing according to UL: 100 %
• UL 224 certification: Yes
• Copper compatibility according to UL 224: Yes
• Low temperature flexibility according to UL 224: No failure
• Flammability according to UL 224: VW-1
• Heat resistance according to UL: No failure
• Insulation resistance according to UL 224: No perforation at 2500V
• UL standard: 224
• Coil length [m]: 10
• Inner diameter pre shrinkage [mm]: 9.5
• Inner diameter after shrinkage [mm]: 4.5
• Thickness after shrinkage [mm]: 0.56
• ROHS compliant: Yes
• Part Number: 2811170
• Manufacturer: TERMOBLOCK
• Cat Number: TBS95X10Y/G
• Tensile Strength (Post Thermal Aging): 7.3 N/mm²
• Elongation at Break (Post Thermal Aging): 100%
• Dielectric Strength: 15 kV/mm (IEC 243)
• Flammability: VW-1 (UL 224)
• Internal diameter before retraction: 9.5 mm
• Internal diameter after retraction: 4.5 mm
• Wall thickness after retraction: 0.56 mm
• Color: Green-yellow
• Transparent: no
• With internal adhesive: no
