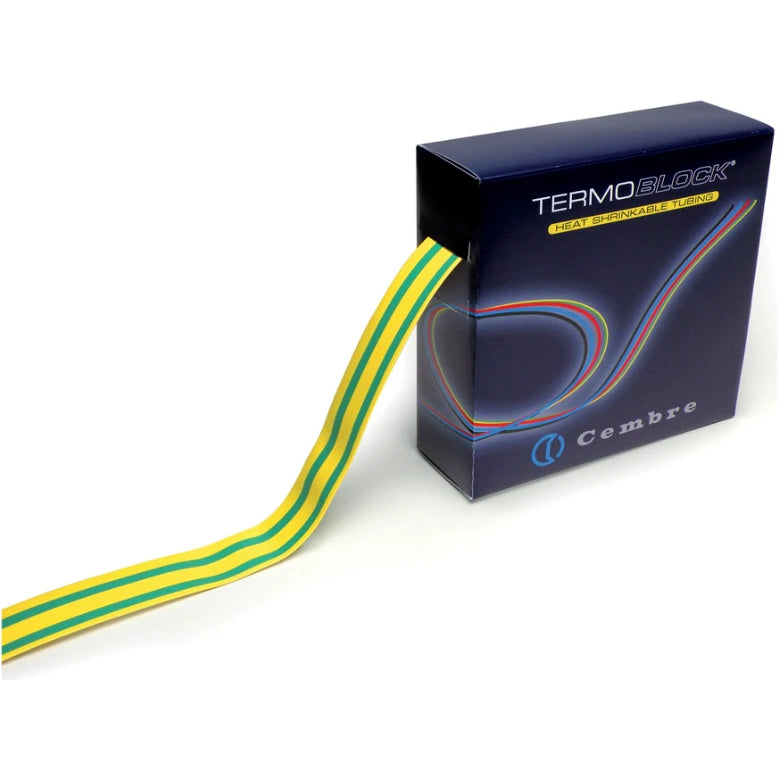

Cembre TBS64X10Y/G Thermoblock Heat Shrink Sheath, 10 m

Brand: CEMBRE
SKU: TBS64X10Y/G
Availability: Out Of Stock
$56.32
$56.32
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The CEMBRE TBS64X10Y/G is a heat shrinkable sleeve made of flame-retardant polyolefin with a 2:1 shrink ratio. It is designed for insulating electrical conductors and protecting connections, electrical terminations, and antennas from weather and corrosive chemicals. It ensures high levels of environmental tolerability, flexibility, shrinkage, non-flammability, and stability in performance.

  • Made of flame-retardant polyolefin material
  • Features a 2:1 shrink ratio
  • Ideal for insulating electrical conductors

Product Highlights

This heat shrink is resistant to weather and corrosive chemicals, and provides excellent electrical insulation and mechanical protection.

Product Information

Standard Information

  • Brand: CEMBRE
  • Manufacturer Part Number: TBS64X10Y/G
  • Country of Origin: ITALY
Technical Specifications
Minimum operating temperature
-55 °C
Maximum operating temperature
125 °C
Tensile strength after thermal ageing
7.3 N/mm²
Dielectric strength according to IEC 243
15 kV/mm
Volume resistance according to IEC 93
10^14
Minimum shrinkage temperature
70 °C
Shrinkage ratio
2:1
Material
Polyolefin (Halogen-Free)
Halogen free
Yes
Full shrinkage temperature
110 °C
Unit in minimal packaging
1 PCE
Unit in standard packaging
1 PCE
Customs code
39173200
Elongation at break after thermal ageing according to UL
100 %
UL 224 certification
Yes
Copper compatibility according to UL 224
Yes
Low temperature flexibility according to UL 224
No failure
Flammability according to UL 224
VW-1
Heat resistance according to UL
No failure
Insulation resistance according to UL 224
No perforation at 2500V
UL standard
224
ROHS compliant
Yes
Coil length
10 m
Inner diameter pre shrinkage
6.5 mm
Inner diameter after shrinkage
3 mm
Thickness after shrinkage
0.56 mm
Manufacturer Code
TBS64X10Y/G
UL approval
Yes
With inner glue
No
Wall thickness after shrinking
0.55 mm
Nominal diameter inch
1/4 inch
Brand
Cembre
Type
Heat-shrink
Net Weight
0.15600000
Operating temperature
-55 - 125 °C
Model
Thin-walled
Colour
Green/yellow
Package Weight
0.15600000
Length
10 m
Printable
No
Part Number
2811168
Cat Number
TBS64X10Y/G
Electrocode
36D1
ETIM Class 7
Shrink tubing [EC000217]
Inner Diameter Pre-Shrinkage
6.5mm
Inner Diameter After Shrinkage
3mm
Thickness After Shrinkage
0.56mm
Color
Yellow/Green
Shrink tubing
Yes
Inner diameter after heat-shrink
3.2 mm
Inner diameter before heat-shrink
6.4 mm
Nominal cross section
- - - mm²
Part No
TBS64X10YG
