Cembre PL1-M Through Connector 4-6mm² (Pack of 100)

Brand: CEMBRE
SKU: PL1-M
Availability: In Stock

Ships same day if ordered by 12 pm
$50.50
$50.50
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

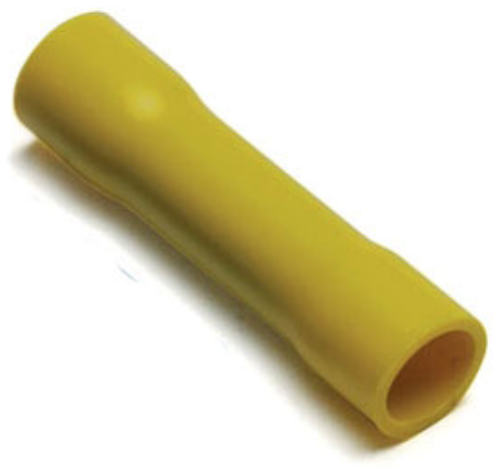

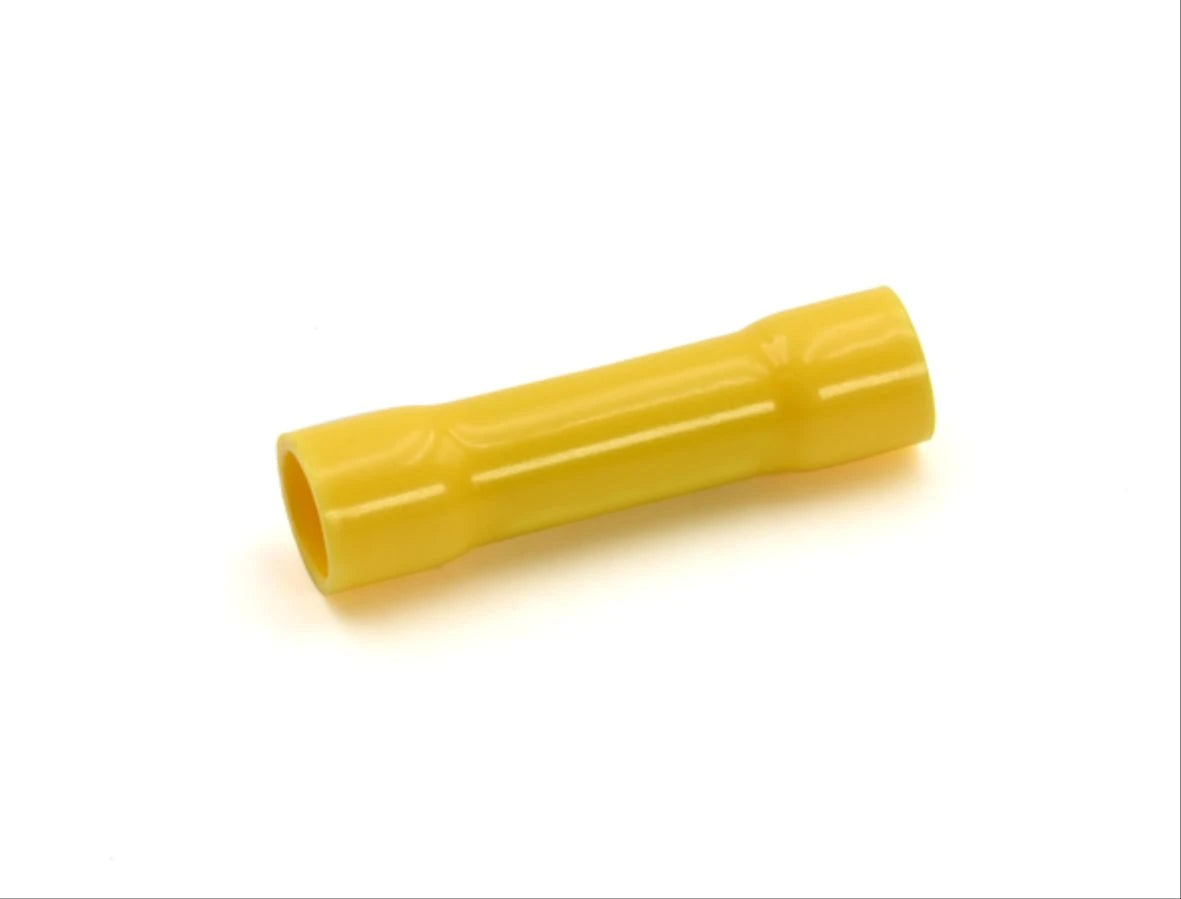

The Cembre PL1-M is a butt and parallel connector with PVC insulation suitable for copper conductors. This connector is electrolytically tin plated to avoid oxidation. The PVC sleeve eliminates the need to insulate the terminal and avoids conductor breakage at the barrel entrance. Operating temperature: -20 to 80°C.

  • PVC Insulated
  • Suitable for copper conductors
  • Electrolytically tin plated

Product Highlights

The Cembre PL1-M connector ensures strong, insulated connections for larger conductors sized 4mm² to 6mm².

Product Information

Standard Information

  • Brand: CEMBRE
  • Manufacturer Part Number: PL1-M
Technical Specifications
Minimum operating temperature
-20 °C
Maximum operating temperature
80 °C
Threshold of operating temperature for short periods
90 °C
Type of connector
butt through connector
Central stop
Yes
Type of insulation
full
Surface treatment
tin plating
Crimping geometry
radial
Conductor body material
Rame elettrolitico con purezza superiore al 99,95%
Insulated cover material
Polyvinylchloride PVC
Annealing
Yes
Cable stripping length
9 mm
Unit in minimal packaging
100 PCE
Customs code
85369010
ROHS compliant
Yes
Insulated cover colour
yellow
Range of cable cross section [mm²]
4 - 6
Ø [mm]
5.25
Ø2 [mm]
3.6
L [mm]
32
A [mm]
16
C [mm]
32
Ø3 [mm]
7
Unit in standard packaging [pce]
500
Self-extinguishing fire class according to UL 94
V0
UL standard
486C
Connector
Connector
Type (Cable Baskets)
Butt
Extra Information
PVC Insulated -20 to 80 Degrees C For 4 to 6Sq.mm Copper Conductor
Material
Copper
Colour
Yellow
Finish
Electrolytic
Length 2
32 mm
Diameter
6.5 mm
CE Approved
Y
Standards
UL (Canada and US) UL 486A
Type
Butt
Material (EF001257)
Copper
Colour (EF003882)
Yellow
Finish (EF006569)
Electrolytic
Colour (EF000007)
Yellow
Nominal cross section
4mm² - 6mm²
Model Type
Standard version
Sleeve form
Long
Suitable for solid cores
No
Useful for stranded conductors
Yes
Suitable for fine strand conductors
Yes
Suitable for high temperatures (to 650 °C)
No
Suitable for insulated varnish
No
Suitable for round conductors
Yes
Suitable for flat conductors
No
Insulation
Polyvinyl chloride (PVC)
Colour insulation
Yellow
Voltage row
Up to 600 V
Type of connection
Percussion connector
For pull protected connections
No
Oil stop/centre bar
Yes
Manufacturer Code
PL1-M
AWG-range
12
Model
Standard version
Cable Entry
4 - 6mm²
Crimp Colour
Yellow
Crimp Type
Barrel
Cable Size (mm²)
4.0-6.0mm
