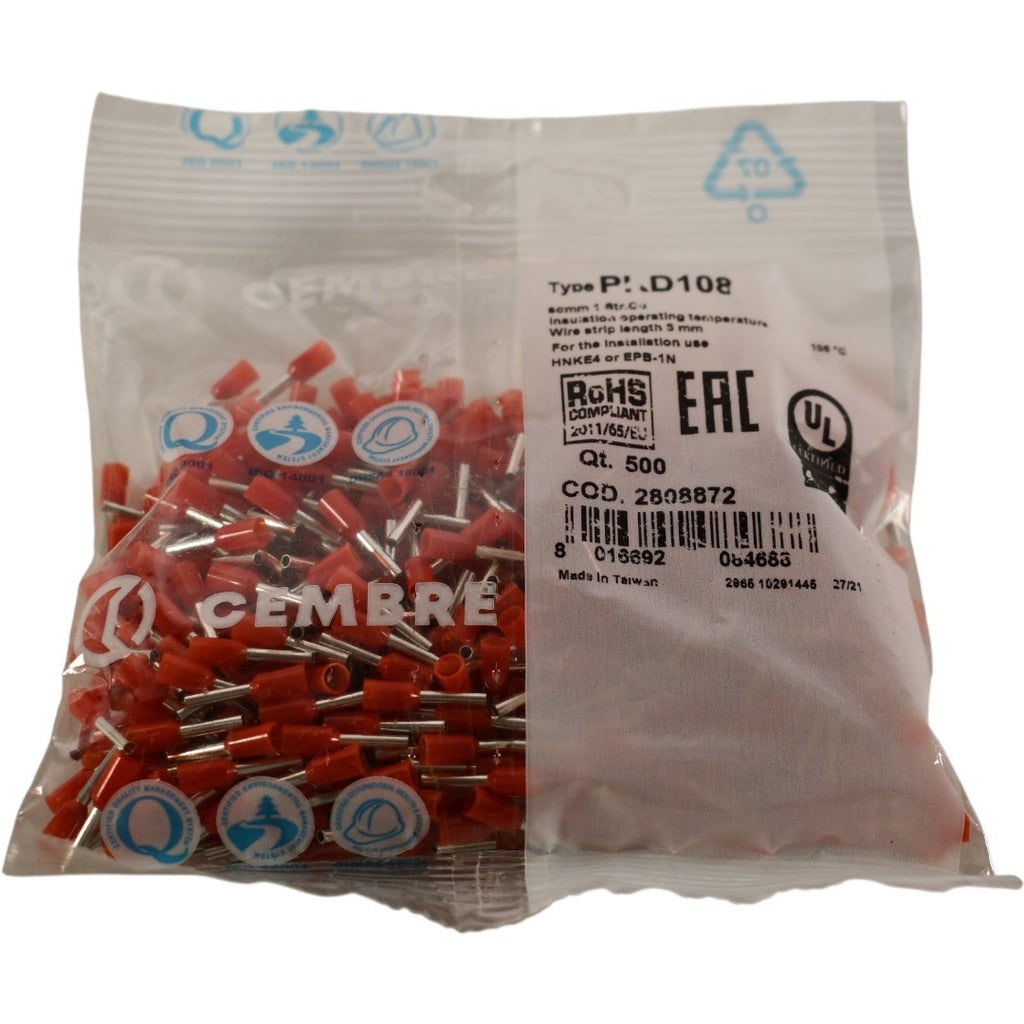

Cembre Pkd108 End Sleeve 17 AWG

Product Description

The CEMBRE PKD108 end sleeve is designed for connecting flexible multi-terminal wires with screw terminals and terminal blocks. Constructed from electrolytic copper pipe of more than 99.9% purity with PA 6 insulation coating, it simplifies installation and restoration of cable insulation. PKD series end sleeves are in accordance with DIN 46 228/4.

• Made from electrolytic copper pipe of more than 99.9% purity
• PA 6 insulation coating simplifies installation
• Compliant with DIN 46 228/4

Product Highlights

The CEMBRE PKD108 ensures secure wire termination with high-quality construction and DIN standard compliance.

Product Information

Standard Information

• Brand: CEMBRE
• Manufacturer Part Number: PKD108
• Country of Origin: Germany

Technical Specifications

• Easy insertion input: Yes
• Surface treatment: tin plating
• Conductor body material: Rame elettrolitico con purezza superiore al 99,95%
• Minimum operating temperature [0c]: -20
• Maximum operating temperature [0c]: 120
• Threshold of operating temperature for short periods [0c]: 130
• Insulated cover colour: red
• Compatible cable class: 5 class
• Crimping geometry: trapezium; Square
• Range of cable cross section [mm2]: 1
• Insulated cover material: Polyamide
• Annealing: Yes
• Halogen free: Yes
• C [mm]: 6
• 2 [mm]: 3
• 3 [mm]: 3.5
• Cable stripping length [mm]: 8
• 1 [mm]: 1.7
• P [mm]: 8
• L [mm]: 14
• ROHS compliant: Yes
• EN 45545-2 certification (r22): HL1
• Self-extinguishing fire class according to UL 94: V2
• UL standard: 486F
• Part Number: 2808872
• Cat Number: PKD108
• Standard: DIN 46 228/4
• Fire Rating: UL 94 V2
• Conductor Material: Electrolytic Copper (99.95% purity)
• Conductor Plating: Tin (min. 35m)
• Insulation Material: Polyamide PA6 (Red)
• Dielectric Strength: 16.5 kV/mm
• Cable Cross Section: 1 mm2
• ETIM Class: EC000005 (Cable end sleeve)
