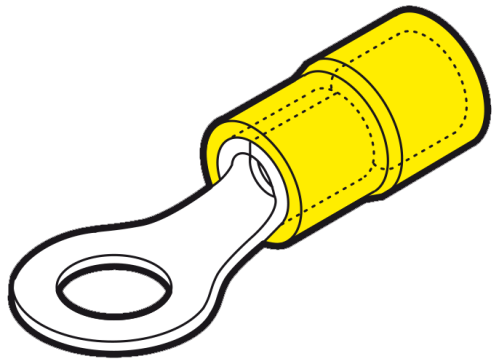

Cembre GF-M5 Ring Terminal 4÷6 (12÷10) 5mm

Product Description

The CEMBRE GF-M5 ring terminal connects, terminates, and crimps low voltage cables. Its funnel-shaped PVC sleeve ensures complete insertion of copper conductor strands into the terminal barrel, creating a secure electrical and mechanical connection. The barrel's rifled internal surface improves contact with conductor strands, increasing tensile strength. It has an operating temperature range of 20°C to 80°C (Surge + 90°C).

• Ring Terminal
• Funnel shaped PVC sleeve guarantees complete insertion of copper conductor strands
• Internal surface of the cable terminal barrel is rifled to improve contact

Product Highlights

Cembre GF-M5 ring terminals ensure secure and reliable connections for low voltage cables, with enhanced tensile strength and a wide operating temperature range.

Product Information

Standard Information

• Brand: CEMBRE
• Manufacturer Part Number: GF-M5
• Country of Origin: Canada

Technical Specifications

• Crimp Type: Ring Terminal
• Conductor Size sqmm (AWG): 4 6 (12 10)
• Stud mm: 5
• Cembre Type: GF-M 5
• : 6.7
• B: 9.0
• M: 8.1
• N: 4.5
• L: 26.8
• d: 5.3
• Minimum operating temperature: -20 C
• Maximum operating temperature: 75 C
• Threshold of operating temperature for short periods: 90 C
• Number of holes on the palm: 1
• Type of insulation: partial
• Easy insertion input: Yes
• Surface treatment: tin plating
• Crimping geometry: radial
• Conductor body material: Rame elettrolitico con purezza superiore al 99,95%
• Insulated cover material: Polyvinylchloride PVC
• Annealing: Yes
• Insulation Material: PVC
• Cable Size Range: 12 to 10 AWG mm2
• Length: 26.8 mm
• Diameter: 6.7 mm
