Cembre GF-F608P Gf-Fp Female Disconnect Connector

Product Description

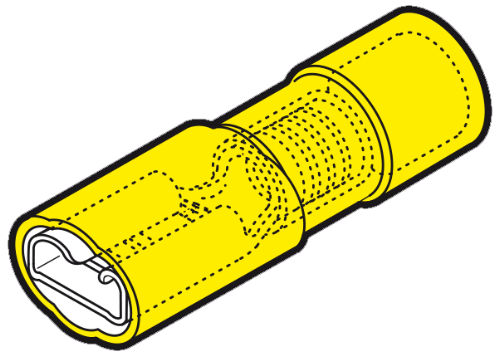

The CEMBRE GF-F608P female disconnect connector is fully insulated in polycarbonate and partially reinforced for copper conductors. It is halogen free. The connector ensures a secure and reliable electrical connection. It features a flared entry for quick and easy wire insertion.

• Fully insulated in polycarbonate
• Halogen free
• For copper conductors

Product Highlights

The CEMBRE GF-F608P female disconnect connector ensures a secure and reliable electrical connection.

Product Information

Standard Information

• Brand: CEMBRE
• Manufacturer Part Number: GF-F608P
• Country of Origin: Italy

Technical Specifications

• Minimum operating temperature: -20 °C
• Maximum operating temperature: 115 °C
• Threshold of operating temperature for short periods: 130 °C
• Barrel reinforcement ring: Yes
• Type of insulation: full
• Easy insertion input: Yes
• Surface treatment: tin plating
• Crimping geometry: radial
• Conductor body material: brass
• Insulated cover material: Polycarbonate
• Halogen free: Yes
• Unit in minimal packaging: 100 PCE
• Customs code: 85366990
• ROHS compliant: Yes
• EN 45545-2 certification(R22): HL2
• EN 45545-2 certification(R23): HL3
• Self-extinguishing fire class according to UL 94: V0
• Insulated cover colour: yellow
• Range of cable cross section [mm²]: 4 6
• UL standard: 486A-486B
• Tongue width [mm]: 6.7
• Tongue length [mm]: 7.8
• L [mm]: 25.8
• A [mm]: 6.5
• C [mm]: 6.6
• Ø2 [mm]: 8.1
• Ø3 [mm]: 4.8
• Ø [mm]: 8
• Cable stripping length [mm]: 8
• Unit in standard packaging [pce]: 800
• Conductor Size: 4-6mm²
• Tab size: 6.35 x 0.8mm
• Cable Size Range: 12 to 10 AWG mm2
• Insulation Material: Cable Terminations|Material & Finish|Insulation Material
• CE Approved: Y
• Standards: UL (Canada and US) UL 310
• Fully Insulated: Fully Insulated
