Cembre BF-F608P Female Disconnect Connector 1.5-2.5mm²

Product Description

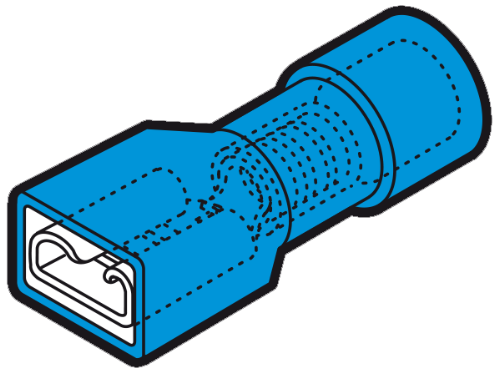

The CEMBRE BF-F608P is a female disconnect connector, fully insulated in polycarbonate and partially reinforced, designed for copper conductors. These halogen-free terminals ensure secure and reliable electrical connections. They feature a unique funnel shape for total insertion of conductor strands, with an operating temperature range of -20°C to +115°C.

• Fully insulated in polycarbonate
• Halogen free
• Operating temperature range of -20°C to +115°C

Product Highlights

The Cembre BF-F608P ensures secure and reliable connections for copper conductors.

Product Information

Standard Information

• Brand: CEMBRE
• Manufacturer Part Number: BF-F608P

Technical Specifications

• Minimum operating temperature: -20 °C
• Maximum operating temperature: 115 °C
• Threshold of operating temperature for short periods: 130 °C
• Barrel reinforcement ring: Yes
• Type of insulation: full
• Easy insertion input: Yes
• Surface treatment: tin plating
• Crimping geometry: radial
• Conductor body material: brass
• Insulated cover material: Polycarbonate
• Halogen free: Yes
• Unit in minimal packaging: 100 PCE
• Customs code: 85366990
• ROHS compliant: Yes
• EN 45545-2 certification(R22): HL2
• EN 45545-2 certification(R23): HL3
• Self-extinguishing fire class according to UL 94: V0
• Insulated cover colour: Blue
• Range of cable cross section [mm²]: 1.5 2.5
• Tongue width [mm]: 6.8
• Tongue length [mm]: 7.8

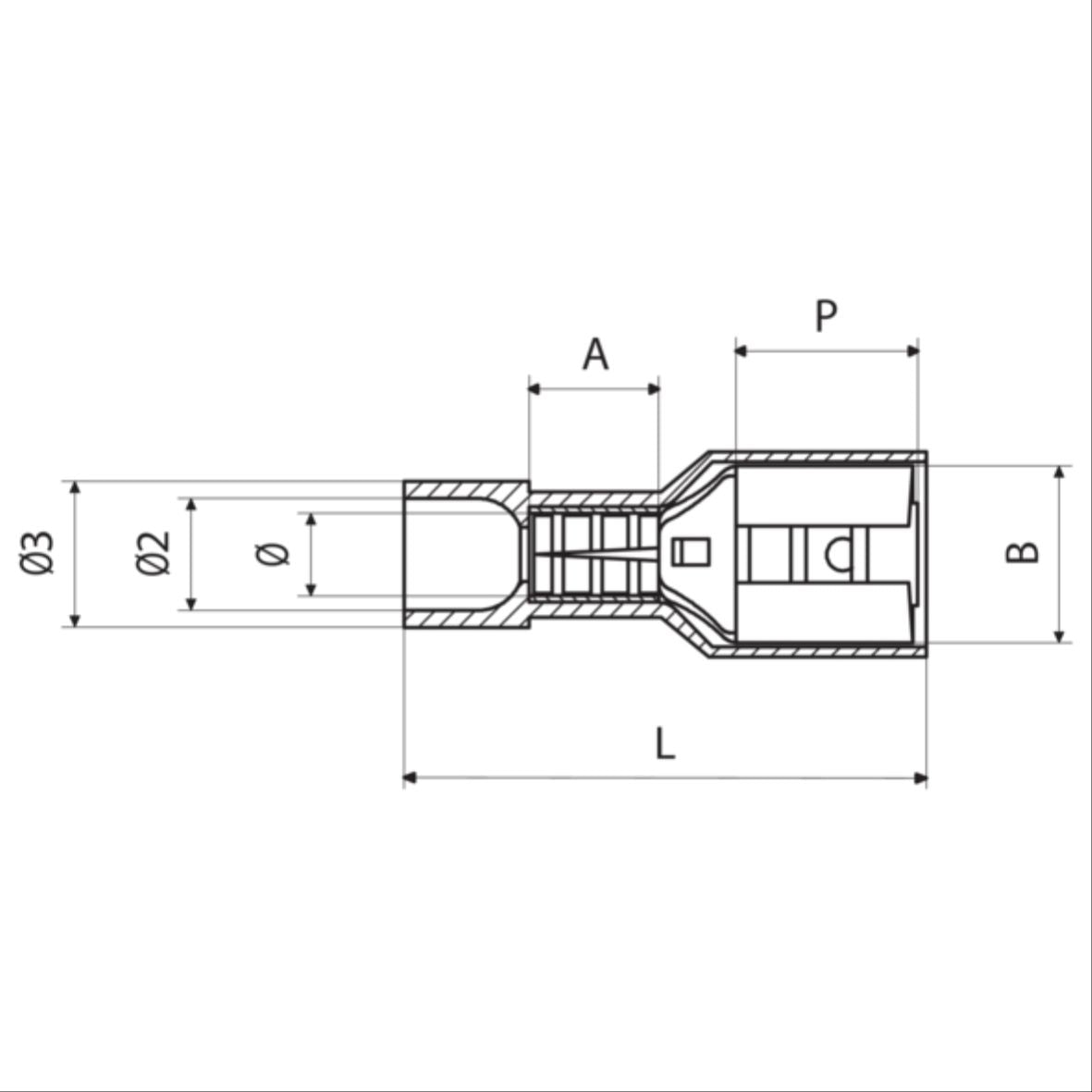

• L [mm]: 23
• A [mm]: 4.9
• C [mm]: 6.8
• Ø2 [mm]: 3.4
• Ø3 [mm]: 6
• Unit in standard packaging [pce]: 1000
• UL standard: 486A-486B
• Cembre Terminal Type: BF-F 608P
• Cond. Size sqmm (AWG): 1.5 2.5 (16 14)
• Tab Size: 6.35 x 0.8
• Quantity Terminals Box/Bag: 1000/100
• Catalogue Code: 381635
• MPN: BF-F608P
• Terminal: Cable Terminations|Description|Product
• Insulated: Cable Terminations|Features
• Insulation Colour: Cable Terminations|Features|Insulation Colour
• Tab/Pin Size: 6.35mm x 0.8mm mm
• Insulation Material: Cable Terminations|Material & Finish|Insulation Material
• CE Approved: Y
• Standards: UL (Canada and US) UL 310
• Finish: Blue
• Cable Size Range: 16 to 14 AWG mm2
• Manufacturer: Cembre Ltd
• Conductor Size: 1.5-2.5mm²
• Length: 23mm
• Colour: Blue
