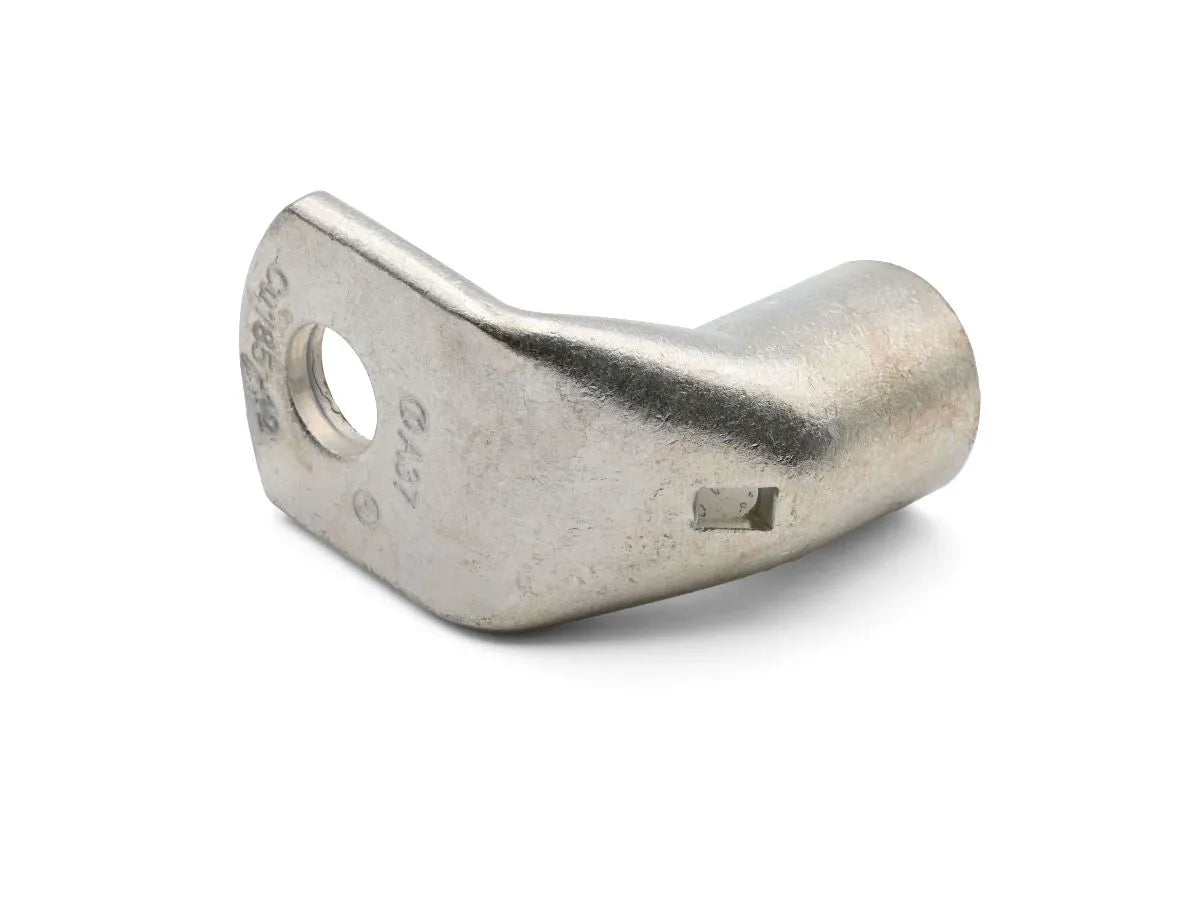

Cembre A48-L12 Ring Terminal 90°

Product Description

The CEMBRE A48-L12 ring terminal is manufactured from electrolytic Copper tube with a purity greater than 99.9%. Dimensions are designed for efficient electrical conductivity and mechanical strength. Annealed to guarantee optimum ductility, the terminal features an inspection hole for full conductor insertion and is tin plated to prevent oxidation.

• Manufactured from electrolytic Copper tube with a purity greater than 99.9%
• Dimensions of the tube are designed to obtain the most efficient electrical conductivity and mechanical strength to resist vibration and pull out
• CEMBRE lugs are annealed to guarantee optimum ductility

Product Highlights

This copper tube ring terminal is designed for efficient conductivity and mechanical strength, withstanding vibration and pull out. It features an inspection hole and tin plating.

Product Information

Standard Information

• Brand: CEMBRE
• Manufacturer Part Number: A48-L12
• Country of Origin: UK

Technical Specifications

• Minimum operating temperature: -50 °C
• Maximum operating temperature: 150 °C
• Spy hole: Yes
• Bend angle of the connection: 90 °
• Number of holes on the palm: 1
• Easy insertion input: Yes
• Surface treatment: tin plating
• Crimping geometry: hexagonal; indent
• Conductor body material: Rame elettrolitico con purezza superiore al 99,95%
• Annealing: Yes
• ROHS compliant: Yes
• Range of cable cross section (flexible) [mm²]: 185 ÷ 240
• Range of cable cross section (low stranded) [mm²]: 240
• Screw diameter: M12
• ØD [mm]: 13.2
• B [mm]: 39
• N [mm]: 14
• M [mm]: 50
• A [mm]: 33
• Ø [mm]: 21.1
• Ø1 [mm]: 27.2
• Reference standard: UL 486A-486B
• UL standard: UL486A-486B
• Stud Diameter: M12
• Brand: Cembre
• Crimp Type: Angled Palm
• Product Type: Copper Tube Lugs
• Cable Size (mm²): 240.0mm
• Stud Size (mm): 12mm
• Manufacturer: Cembre
• Manufacturer Part Number: 2341295
• Alternative Product SKU: A48-L12
• Packed Quantity: 10
