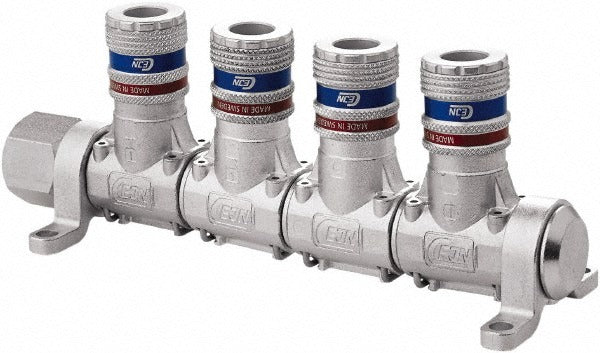

Cejn 19-902-9154-NPT Air Manifold 1 Inlet 4 Outlet Npt

Product Description

The CEJN 19-902-9154-NPT is a steel compressed air manifold designed to distribute airflow from a single supply line to multiple outlet points in pneumatic systems. It features one 1/2-inch NPT inlet port and four 1/4-inch NPT outlet ports, allowing a single compressed air source to feed up to four tools, actuators, or branch lines simultaneously. The manifold is rated to a maximum working pressure of 230 psi and handles temperatures from -4 degrees F to 212 degrees F. It uses Asian-interchange coupler geometry and threaded NPT connections throughout. Licensed HVAC technicians, industrial maintenance techs, and plumbing professionals install this type of manifold in compressed air distribution systems requiring point-of-use splitting.

This manifold suits compressed air distribution in light industrial, commercial, and shop environments where a single compressor or trunk line feeds multiple pneumatic tools or control devices. With an outlet center-to-center distance of 4.21 inches, the four outlet ports provide adequate spacing for standard quick-disconnect fittings or NPT-threaded adapters. It is appropriate for panel-mount or bench-mount installations where a clean, organized distribution point is required. The NPT thread type ensures compatibility with standard North American pipe fittings and pneumatic components.

Key Features

• 1 inlet port at 1/2-inch NPT for main supply connection
• 4 outlet ports at 1/4-inch NPT for multi-point air distribution
• 230 psi maximum working pressure rating
• Operating temperature range of -4 degrees F to 212 degrees F
• Steel construction with zinc finish for corrosion resistance
• Asian-interchange coupler type for broad fitting compatibility
• Panel-mount capability with 0.245-inch diameter mounting hole

Compatibility

Designed for use with Asian-interchange series pneumatic quick-disconnect couplers and standard NPT-threaded fittings in compressed air distribution applications. Confirm thread type and coupler series before installation.

Installation Notes

Installation should be performed by a qualified maintenance technician or pipefitter familiar with compressed air systems and NPT threaded connections. Depressurize and lock out the compressed air supply before installing or servicing this manifold. Apply thread sealant rated for pneumatic service to all NPT connections to prevent air leaks. Verify that system operating pressure does not exceed the 230 psi maximum rating of this manifold.
