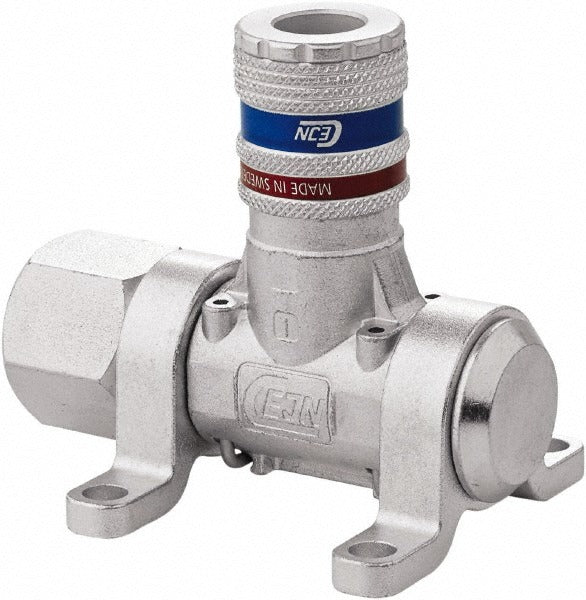

Cejn 19-902-9101-NPT Pneumatic Manifold Npt Steel

Product Description

The CEJN 19-902-9101-NPT is a steel pneumatic manifold designed for compressed air distribution in industrial and trade service applications. It features a 1/2 inch NPT inlet and a 1/4 inch NPT outlet, with one inlet port and one outlet port. Rated to a maximum working pressure of 230 psi and suitable for operating temperatures from -4 degrees F to 212 degrees F, this manifold handles the demands of typical shop air and pneumatic tool systems. HVAC technicians, plumbers, and industrial maintenance professionals install this type of manifold to consolidate air supply lines at a central distribution point.

This manifold is suited for light industrial and commercial pneumatic systems where a compact, single-inlet single-outlet distribution block is required. With an overall length of 3 inches, width of 2.28 inches, and height of 2.7 inches, it fits in tight equipment bays and service panels. The NPT thread type ensures compatibility with standard North American pipe fittings. The interchange coupler type is classified as industrial, making it appropriate for use with standard industrial quick-connect couplings in compressed air service lines.

Key Features

• 230 psi maximum working pressure for demanding compressed air applications
• NPT thread type on both inlet and outlet for standard North American fitting compatibility
• Steel and zinc construction for durability in shop and industrial environments
• Operating temperature range of -4 degrees F to 212 degrees F
• Compact footprint at 3 inches OAL x 2.28 inches OAW x 2.7 inches OAH
• Mounting hole diameter of 0.245 inches for secure panel or bracket installation

Compatibility

Designed as an OEM-style replacement or direct-fit manifold for industrial pneumatic systems using standard NPT connections and industrial interchange quick-connect couplers.

Installation Notes

Installation should be performed by a qualified technician familiar with compressed air system service. Depressurize the air supply line completely before removing or installing any manifold component. Apply thread sealant appropriate for pneumatic service to all NPT connections and verify all joints are leak-free before returning the system to pressure. Follow applicable local codes and manufacturer guidelines for compressed air distribution work.
