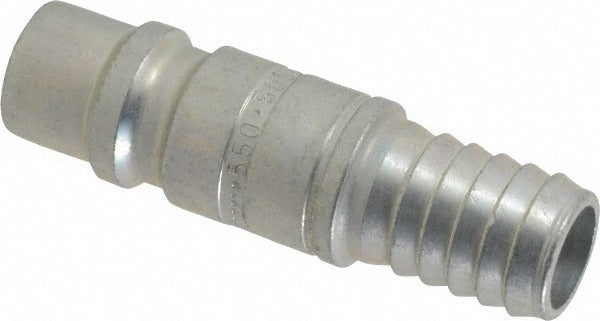

Cejn 10 550 5005 Pneumatic Hose Coupling 1/2 in

Product Description

The CEJN 10 550 5005 is a high-flow pneumatic hose coupling connector designed for industrial compressed-air systems. Built from zinc-finished steel, this Series 550 connector uses a hose barb thread type sized at 1/2 inch, with a matching 1/2 inch body diameter and 1/2 inch hose inside diameter. It is rated for a maximum working pressure of 232 psi and handles temperatures from -4 degrees F to 212 degrees F, making it suitable for demanding shop and plant environments. Licensed HVAC technicians, plumbers, maintenance mechanics, and industrial service professionals install this fitting as part of pneumatic tool and equipment lines.

This coupling connector is suited for industrial interchange pneumatic systems where reliable, high-flow air delivery is required. Typical installations include air compressor drop lines, pneumatic tool stations, and industrial air distribution manifolds. The hose barb connection style makes it compatible with standard flexible air hose assemblies in 1/2 inch inside diameter configurations. It is appropriate for both light manufacturing and heavy-duty maintenance environments operating within its rated pressure and temperature range.

Key Features

• High-flow connector design supports efficient air delivery in industrial interchange systems
• Maximum working pressure of 232 psi for demanding compressed-air applications
• Operating temperature range of -4 degrees F to 212 degrees F
• Zinc-finished steel construction for corrosion resistance and durability
• Hose barb connection type fits 1/2 inch inside diameter flexible air hose
• 1/2 inch body diameter and thread size for straightforward sizing and selection

Compatibility

Designed as an industrial interchange-style replacement or addition for pneumatic systems using 1/2 inch inside diameter hose barb connections rated up to 232 psi.

Installation Notes

Installation is typically performed by qualified maintenance mechanics or pneumatic system technicians. Depressurize the air line completely before removing or installing any coupling. Inspect the hose end for cuts or deformation before seating the barb, and secure the hose with an appropriate clamp rated for the working pressure. Follow applicable OSHA and facility safety standards for compressed-air system work.
