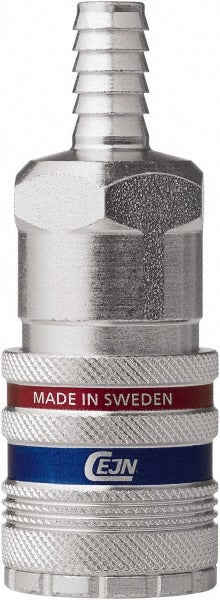

Cejn 10 550 2005 Safety Coupler 1/2 in Hose Barb

Product Description

The CEJN 10 550 2005 is a safety-style pneumatic hose coupling designed for compressed air and industrial pneumatic systems. Built with a brass and steel construction and a zinc finish, this coupler features a 1/2 inch hose barb connection and a 1/2 inch body diameter. It holds a maximum working pressure of 232 psi and an operating temperature range of -4 degrees F to 212 degrees F. The Industrial Interchange configuration makes it a widely compatible choice for shop and facility air distribution systems. Licensed HVAC and mechanical contractors, industrial maintenance technicians, and compressed air system installers are the primary users.

This coupling fits pneumatic hose applications where a hose barb connection to 1/2 inch inside diameter hose is required. It is suited for both light industrial and commercial compressed air systems operating within standard shop pressures. The safety coupler design helps prevent accidental disconnection under pressure, making it appropriate for high-cycle or high-demand service environments. The Industrial Interchange configuration allows it to work alongside tools and fittings following that common standard.

Key Features

• Safety coupler design resists accidental disconnection under pressure
• 1/2 inch hose barb connection fits 1/2 inch inside diameter hose
• 232 psi maximum working pressure for standard industrial air systems
• Operating range of -4 degrees F to 212 degrees F
• Brass and steel construction with zinc finish for durability
• Industrial Interchange type for broad tool and fitting compatibility

Compatibility

Designed as an OEM-style replacement or new-installation fitting for pneumatic systems using Industrial Interchange couplings with 1/2 inch inside diameter hose barb connections.

Installation Notes

Installation should be performed by a qualified mechanical or pneumatic systems technician. Depressurize the air line completely before disconnecting or installing any coupling. Secure the hose barb connection with an appropriate clamp to prevent blowoff under pressure. Follow applicable OSHA compressed air safety guidelines and local mechanical codes when servicing pneumatic distribution systems.
