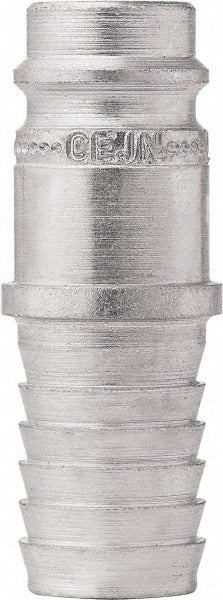

Cejn 10 410 5005 Pneumatic Hose Coupling High Flow

Product Description

The CEJN 10 410 5005 is a high flow pneumatic hose coupling connector designed for compressed air and pneumatic systems requiring efficient, high-volume airflow. Built from zinc-finished steel, this hose barb connector features a 3/8-inch body diameter and accepts a 1/2-inch inside diameter hose. It is rated for a maximum working pressure of 232 psi and handles temperatures from -4 degrees F to 212 degrees F, making it suitable for a wide range of shop and industrial pneumatic applications. HVAC technicians, pipefitters, and industrial maintenance professionals regularly specify this type of fitting where reliable, leak-resistant hose connections are needed.

This connector is suited for use in residential, commercial, and light industrial pneumatic systems. The hose barb thread type provides a secure mechanical grip on rubber or reinforced air hose with a 1/2-inch inside diameter. The high flow interchange design allows for increased airflow compared to standard industrial interchange couplings, reducing pressure drop at the connection point. Typical installations include compressed air distribution lines, pneumatic tool supply, and equipment feed lines where maintaining flow rate is critical.

Key Features

• High flow interchange design minimizes pressure drop across the connection
• Steel construction with zinc finish for corrosion resistance in shop environments
• 3/8-inch body diameter with 1/2-inch hose inside diameter compatibility
• Maximum working pressure of 232 psi for demanding pneumatic applications
• Operating temperature range of -4 degrees F to 212 degrees F
• Series 410 hose barb connector for secure, tool-free hose attachment

Compatibility

Designed as a high flow interchange style hose barb connector compatible with 1/2-inch inside diameter pneumatic hose. Conforms to the high flow interchange standard for use where high flow couplings are specified.

Installation Notes

Installation is typically performed by a qualified pneumatic technician or pipefitter. Always depressurize the air line completely before disconnecting or installing any fitting. Ensure the hose inside diameter matches the barb size before assembly, and use appropriate clamps or crimps per the hose manufacturer's recommendation to maintain a secure, leak-free seal. Verify that the system's maximum operating pressure does not exceed the 232 psi rating of this fitting.
