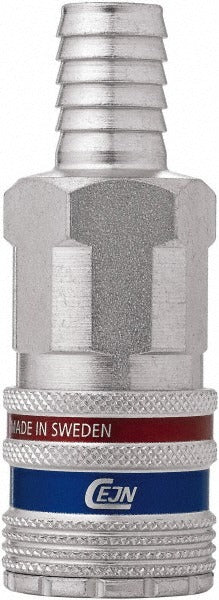

Cejn 10 410 2005 Safety Coupler High Flow Hose Barb

Product Description

The CEJN 10 410 2005 is a safety coupler designed for pneumatic systems requiring reliable high-flow connections. Built from brass and steel with a zinc finish, this hose barb coupler features a 3/8 inch body diameter and accepts a 1/2 inch inside diameter hose. It is rated to a maximum working pressure of 232 psi and operates across a temperature range of -4 degrees F to 212 degrees F. The high-flow interchange design allows for faster air delivery compared to standard industrial interchange couplers, making it well suited for demanding pneumatic tool and equipment applications. Licensed technicians and industrial mechanics are the typical installers.

This coupler is appropriate for use in residential, commercial, and light industrial pneumatic systems where high-flow capacity is needed. The hose barb connection style makes it compatible with flexible pneumatic hose lines. It is commonly installed on compressor outlet lines, pneumatic distribution manifolds, and portable tool supply hoses. The safety coupler design helps prevent unintended disconnection under pressure, which is a critical requirement in production and service environments where accidental line drops can cause injury or equipment damage.

Key Features

• High-flow interchange type for increased air volume delivery
• Safety coupler design reduces risk of accidental disconnection under pressure
• Maximum working pressure of 232 psi for demanding pneumatic applications
• Operating temperature range of -4 degrees F to 212 degrees F
• Hose barb connection for secure attachment to flexible pneumatic hose
• Brass and steel construction with zinc finish for durability and corrosion resistance

Compatibility

Designed as an OEM-style replacement safety coupler for pneumatic systems using high-flow interchange standard fittings with 1/2 inch inside diameter hose and 1/2 inch hose barb connections.

Installation Notes

Installation should be performed by a qualified technician familiar with pneumatic systems. Depressurize and de-energize the pneumatic line completely before replacing or installing any coupler. Ensure the hose barb is fully seated and secured with an appropriate clamp rated for the system operating pressure. Follow applicable OSHA and compressed air safety guidelines when working on pressurized pneumatic systems.
