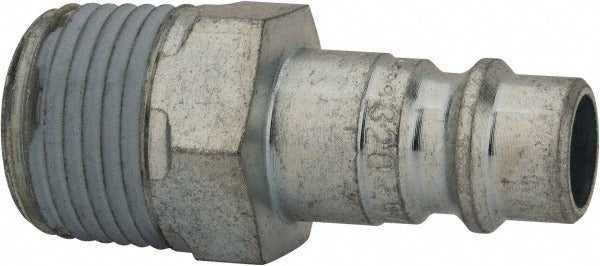

Cejn 10 320 5454 Pneumatic Hose Connector High Flow

Product Description

The CEJN 10 320 5454 is a High Flow interchange pneumatic hose connector designed for compressed air and pneumatic tool systems. The connector features a 3/8 inch MNPT thread and a 1/4 inch body diameter, making it a direct-threaded fitting for use in high-demand pneumatic circuits. Constructed from zinc-finished steel, it is built to handle a maximum working pressure of 230 psi and a temperature range of -4 degrees F to 212 degrees F. Licensed HVAC technicians, plumbers, and industrial service professionals use this fitting to maintain reliable air supply connections in tool, equipment, and process piping applications.

This connector is suited for residential, commercial, and light industrial pneumatic systems where High Flow interchange compatibility is required. The 3/8 inch NPT threaded connection allows direct installation into standard air compressor manifolds, tool drops, and pneumatic distribution lines. The zinc finish provides basic corrosion resistance for shop and service environments. It ships individually and is appropriate for single-unit replacement or new installation work.

Key Features

• High Flow interchange type for increased air volume delivery
• 3/8 inch MNPT threaded connection for standard NPT fittings
• 1/4 inch body diameter connector
• Zinc-finished steel construction rated to 230 psi maximum working pressure
• Operating temperature range: -4 degrees F to 212 degrees F

Compatibility

Designed as an OEM-style replacement or new-installation connector for pneumatic systems using High Flow interchange couplings with 3/8 inch NPT threaded ports.

Installation Notes

Installation should be performed by a qualified technician familiar with compressed air system fittings. Depressurize and bleed the air line completely before removing or installing any fitting. Apply thread sealant tape or compound rated for pneumatic service to the MNPT threads before installation. Follow applicable local codes and system manufacturer guidelines for pneumatic distribution work.
