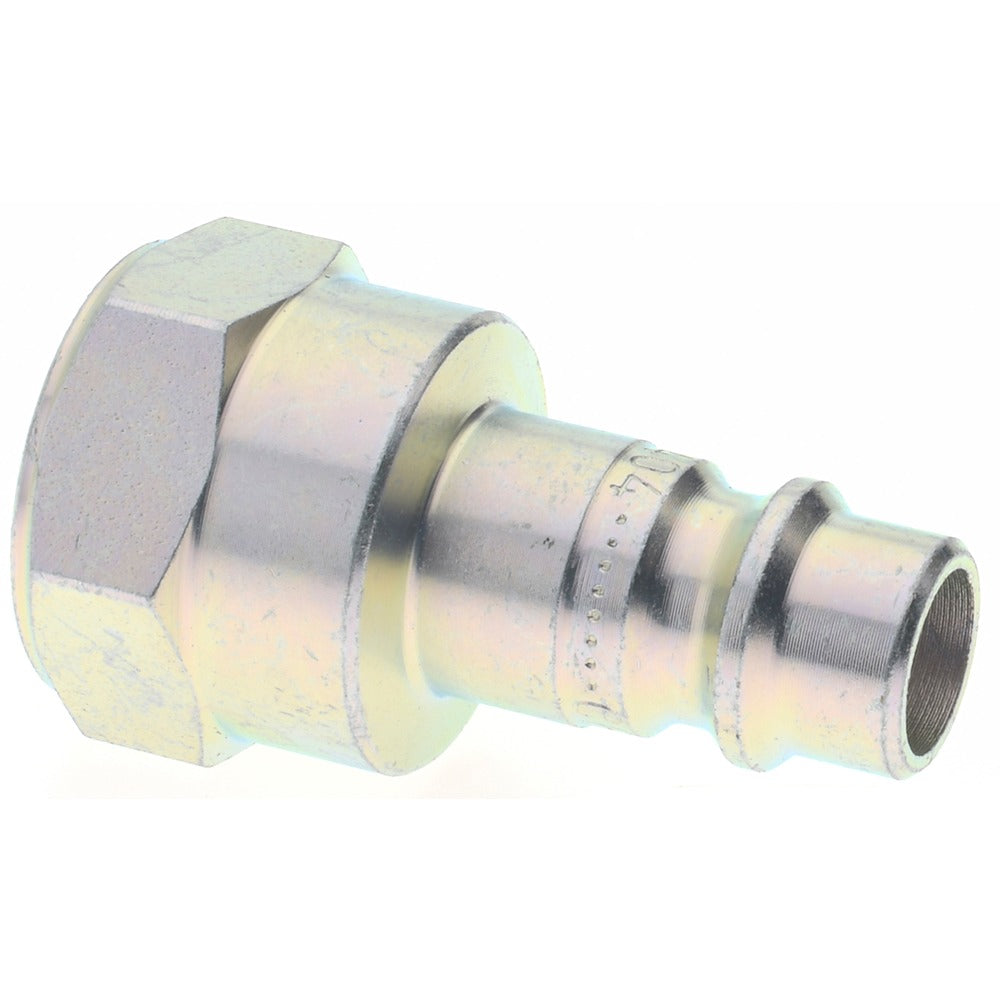

Cejn 10 320 5404 Pneumatic Hose Coupling High Flow

Product Description

The CEJN 10 320 5404 is a threaded pneumatic hose coupling connector designed for compressed air and pneumatic tool lines. It features a 1/4 inch body diameter with a 3/8 inch female NPT (FNPT) threaded connection and a High Flow interchange design, making it compatible with High Flow series couplers in industrial and shop environments. The zinc-plated steel construction provides corrosion resistance suited to typical shop and light industrial use. Rated to 230 psi maximum working pressure, this connector handles the demands of standard pneumatic systems. HVAC technicians, plumbers, and mechanical contractors commonly use fittings of this type to connect hoses and tools on service carts and compressor lines.

This coupling is suited for use in residential and light commercial mechanical service environments where High Flow interchange pneumatic systems are in use. It is a threaded connector type, installed directly onto compressor outlets, manifolds, hose assemblies, or tool drop lines with a 3/8 inch FNPT port. The operating temperature range of -4 degrees F to 212 degrees F covers the full range of typical indoor and outdoor service conditions.

Key Features

• High Flow interchange connector for increased airflow capacity over standard interchange designs
• 3/8 inch FNPT threaded connection for direct installation into standard ported fittings and manifolds
• 1/4 inch body diameter sized for common pneumatic hose and tool lines
• 230 psi maximum working pressure rating suitable for most shop compressor systems
• Zinc-plated steel body resists corrosion in shop and field service environments
• Rated from -4 degrees F to 212 degrees F for year-round service use

Compatibility

Designed for use with High Flow interchange pneumatic coupling systems. Fits applications requiring a 3/8 inch FNPT threaded connector with a 1/4 inch body diameter in High Flow series pneumatic lines.

Installation Notes

Installation is performed by qualified technicians or mechanics familiar with compressed air systems. Depressurize the pneumatic line completely before installing or removing any coupling or connector. Apply thread sealant appropriate for pneumatic service to the FNPT threads before assembly. Verify that the connected system does not exceed the 230 psi maximum working pressure rating of this fitting.
