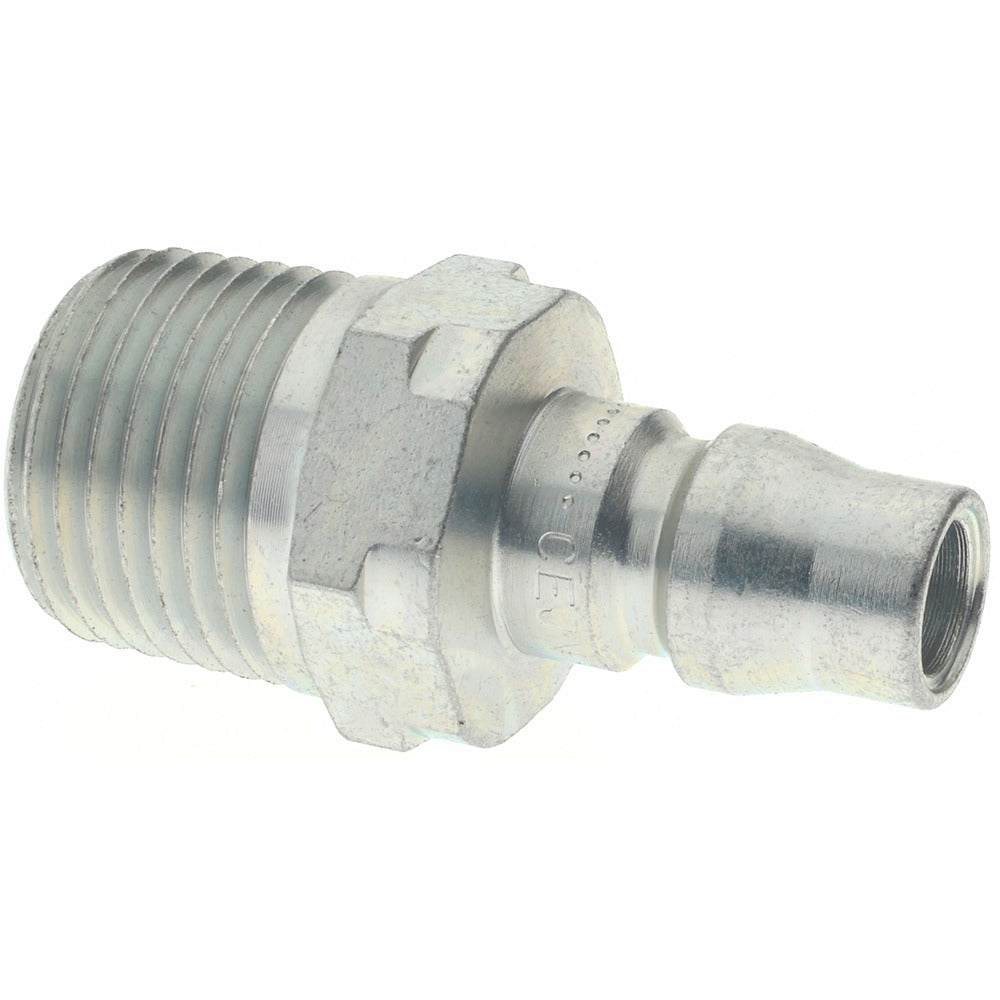

Cejn 10 315 5455 Pneumatic Hose Coupling 1/4 in

Product Description

The CEJN 10 315 5455 is a steel pneumatic hose coupling connector designed for compressed air and pneumatic tool lines. It features a 1/4 inch body diameter with a 1/2 inch male NPT threaded connection and is rated for the High Flow interchange standard. With a maximum working pressure of 230 psi and an operating temperature range of -4 degrees F to 212 degrees F, this connector suits demanding shop and field pneumatic systems. A zinc finish provides corrosion resistance in typical industrial environments. Licensed HVAC, plumbing, and mechanical contractors as well as industrial maintenance technicians install this type of fitting.

This coupling connector is suited for use in industrial, commercial, and light-duty shop pneumatic systems requiring High Flow interchange compatibility. The 1/2 inch MNPT thread makes it compatible with standard NPT-threaded air lines, tool manifolds, and compressor outlets. It is typically used where a male threaded connector is needed to mate with a corresponding High Flow coupler body. The compact 1/4 inch body diameter is appropriate for smaller-bore pneumatic circuits handling moderate to high flow rates up to the rated 230 psi working pressure.

Key Features

• High Flow interchange standard for broad compatibility with matching coupler bodies
• 1/2 inch MNPT thread for direct connection to standard NPT pneumatic fittings
• 1/4 inch body diameter suited for compact pneumatic circuit installations
• 230 psi maximum working pressure for industrial compressed air service
• Steel construction with zinc finish for durability and corrosion resistance
• Rated from -4 degrees F to 212 degrees F for a wide range of operating conditions

Compatibility

Designed as an OEM-style replacement or new-installation connector for pneumatic systems using the High Flow interchange standard with 1/2 inch NPT threaded connections.

Installation Notes

Installation should be performed by a qualified technician. Depressurize the air system completely before removing or installing any pneumatic fittings. Apply thread sealant or PTFE tape to the MNPT threads per standard practice, taking care not to introduce tape fragments into the air circuit. Verify that the downstream coupler body matches the High Flow interchange standard before connecting.
