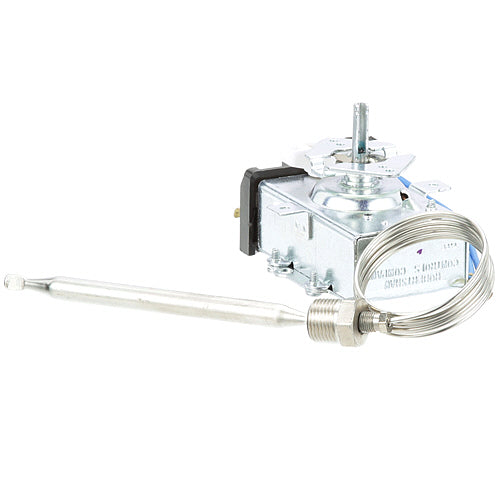

Thermostat D1/D18 100-250 L029AL for Cecilware CECL029AL

Product Description

This item for Cecilware L029AL is a reliable thermostat designed for D1 and D18 applications. It operates within a temperature range of one hundred to two hundred fifty degrees. This thermostat includes a bulb measuring three eighths inches by four and a half inches and a mounting that features front ears.

• Compatible with pilot light model #38-1068.
• Designed for high current applications.
• Meets requirements for resistive loads up to thirty amps.

Product Highlights

This thermostat ensures effective temperature regulation in commercial settings.

Product Information

Standard Information

• Type: D1/D18
• Temperature Range: 100-250 degrees

Technical Specifications

• Bulb Size: 3/8 x 4 1/2 inches
• Cap Size: 48
• Mounting Type: Front ears
• Current Rating: 10 amp at 480V per pole resistive load
• Additional Ratings: 21 amp at 480V 2 poles resistive load
• Full Load Amp: 7.2 at 120-277V
• LRA: 42 at 120-277V
• Pilot Duty Rating: 250VA at 120-277V
