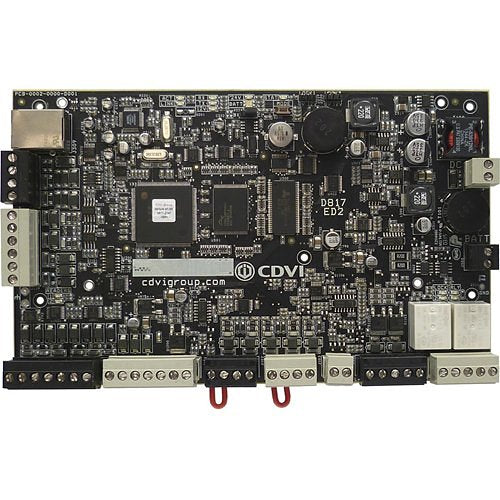

CDVI A22NB ATRIUM 2-Door Controller Power (Each) Replacement MPN

Product Description

The CDVI A22NB is a Web-Based IP hybrid module ideal for access control management. This module can function as a 2-door controller or as an expander. With an embedded web server, users can manage access, control door locks, view system events, and monitor controller activity from any location. Its unique card enrollment mode streamlines installation and setup for users.

• Controls 2 doors and 2 readers
• On-board Ethernet port with AES 256-bit encryption
• Supports up to 10,000 users and cards

Product Highlights

This product offers a range of functionalities suitable for both residential and commercial applications, focusing on access security and ease of use.

Product Information

Standard Information

• Manufacturer: CDVI
• Part Number: CS103936

Technical Specifications

• Controls: 2 doors and 2 readers
• Maximum Users: 10,000
• Maximum Cards: 10,000
• Event Buffer: 25,000 events
• Lock Outputs: 2 (750mA @ 12VDC each)
• Relay Outputs: 2 Form C relays (5A @ 250VAC)
• Communication Interface: RS485
• Easily Convertible: Can convert to an elevator controller
