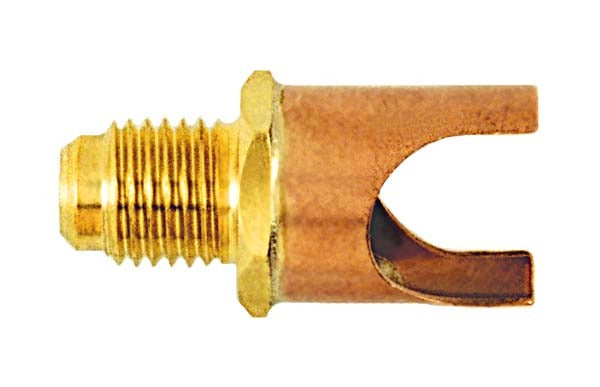

CDV-CD3095 Braze-on Copper Saddle Valve 5/8 Inch

Product Description

The CDVALVECDVCD3095 C&DV-CD3095 is a braze-on copper saddle valve designed for use on 5/8-inch copper tubing. It provides a secure, leak-resistant access point on refrigerant or fluid lines without the need to cut or flare the existing tubing. The valve includes a CD2245 cap and valve core, making it a ready-to-install assembly for HVAC and refrigeration technicians who need a reliable line-tap solution. Installation requires use of the Core Removal Tool and the CD3090 fitting, which must be on hand before beginning work.

This saddle valve is suited for residential and light commercial HVAC and refrigeration service work. It is typically installed on existing copper line sets where a technician needs to add a service port, charge point, or access valve without major line modifications. The requirement for the CD3090 and Core Removal Tool means this valve is intended for professional trade use where proper tooling is available on the service vehicle or job site.

Key Features

• Braze-on installation method creates a permanent, high-integrity bond to 5/8-inch copper tubing
• Includes CD2245 cap and valve core for a complete, ready-to-use assembly
• Copper construction compatible with standard refrigerant and fluid line applications
• Requires Core Removal Tool and CD3090 for proper installation — no improvised tooling
• Compact saddle design allows installation on existing lines without cutting or flaring

Compatibility

Designed for use on 5/8-inch copper tubing. Must be used in conjunction with the Core Removal Tool and CD3090. Compatible cap and valve core: CD2245.

Installation Notes

Installation is performed by licensed HVAC or refrigeration technicians. Before brazing, recover any refrigerant from the system per EPA Section 608 regulations and ensure the line is clean and dry. Use proper brazing technique and shielding to avoid heat damage to adjacent components. Do not attempt installation without the required Core Removal Tool and CD3090 fitting.

Technical Specifications

• Tubing Size: 5/8 inches
• Connection Type: Braze-on saddle
• Material: Copper
• Included Components: CD2245 cap and valve core
• Required Accessories: Core Removal Tool, CD3090

Standard Information

• Brand: CDVALVECDVCD3095
• Manufacturer Part Number: C&DV-CD3095
