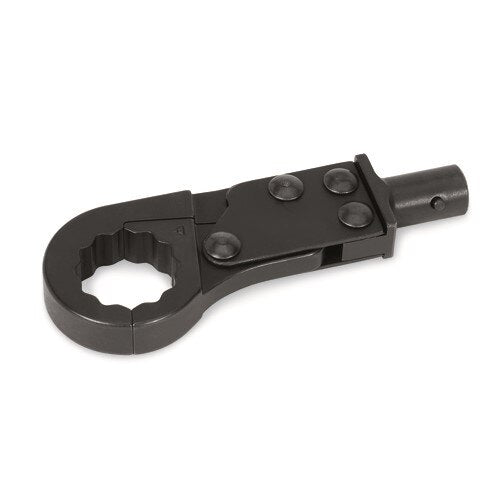

Cdi Torque TCRTWH80Y Torque Wrench Head 1-1/4 in Flare Nut

Product Description

The CDI TORQUE TCRTWH80Y is a ratcheting flare nut torque wrench head designed for precision torque application on 1 1/4 inch flare nut fittings. The head accepts a Y-type shank measuring 0.560 inches and delivers controlled, repeatable torque output without requiring full-arc swing clearance. Weighing 1.12 pounds, it is compact enough for tight mechanical spaces. HVAC technicians and plumbers use this tool when final torquing of refrigerant line flare connections or fluid system fittings is required, where over-tightening risks deforming soft metal seats and under-tightening risks leaks.

This torque wrench head is suited for residential and light commercial HVAC service, refrigeration work, and plumbing applications where flare nut fittings are standard. It pairs with compatible torque wrench handles that accept the Y-type shank interface. Typical use cases include torquing copper flare fittings on refrigerant lines, fuel gas connections, and hydraulic fittings where a specified torque value must be achieved and verified. Its ratcheting mechanism allows operation in confined areas where a full wrench sweep is not possible.

Key Features

• Ratcheting flare nut head design allows use in restricted-clearance installations
• 1 1/4 inch opening sized for standard flare nut fittings common in HVAC and refrigeration systems
• Y-type shank interface at 0.560 inches for compatibility with matching torque wrench handles
• Lightweight at 1.12 pounds for reduced hand fatigue during extended service work
• Compact profile: 2.3 inches long, 5.9 inches wide, 0.7 inches high

Compatibility

Designed for use with torque wrench handles that accept a Y-type shank with a 0.560 inch drive. Consult the CDI TORQUE handle specifications to confirm shank compatibility before use.

Installation Notes

This tool is typically used by licensed HVAC technicians, refrigeration mechanics, and plumbers during system assembly or service. Depressurize and isolate any refrigerant or fluid circuit before working on fittings. Verify the torque wrench handle is calibrated and set to the fastener manufacturer's specified torque value before final tightening. Do not use the head as a general-purpose wrench or apply force beyond the rated range of the paired torque handle.

Technical Specifications

• Head Size: 1 1/4 inches
• Head Type: Ratcheting Flare Nut
• Shank Size: 0.560 inches
• Shank Type: Y
• Length: 2.3 inches
• Width: 5.9 inches
• Height: 0.7 inches
• Weight: 1.12 pounds
• Sold As: Each

Standard Information

• Brand: CDI TORQUE
• Manufacturer Part Number: TCRTWH80Y
