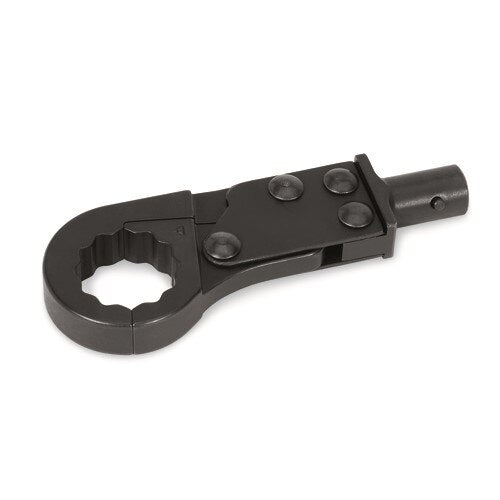

Cdi Torque TCRTWH64Y Torque Wrench Head 1 in Flare Nut

Product Description

The CDI TORQUE TCRTWH64Y is a 1-inch ratcheting flare nut torque wrench head designed for precision fastening in demanding trade applications. It features a Y-type shank measuring 0.560 inches, which mates with compatible CDI torque wrench handles to deliver controlled, repeatable torque output. The ratcheting flare nut head style grips hex fittings on all sides, making it well suited for plumbing, HVAC, and refrigeration work where standard open-end access is limited. Weighing approximately 0.44 pounds, this compact head measures 4.6 inches in length and 0.5 inches in height, keeping it easy to maneuver in tight installations.

This torque wrench head is intended for trade professionals who require accurate torque application on flare nut fittings in HVAC refrigerant line sets, plumbing connections, and similar systems where over-tightening or under-tightening can cause leaks or component damage. The ratcheting mechanism allows for efficient operation in confined spaces where full-arc swings are not possible, making it a practical tool for service technicians working on residential and light commercial systems.

Key Features

• Ratcheting flare nut head design grips hex fittings on all sides for secure torque transfer
• 1-inch head size suitable for common flare nut fittings in HVAC and refrigeration applications
• Y-type shank at 0.560 inches mates with compatible CDI torque wrench handles
• Compact profile at 4.6 inches long and 0.5 inches tall for use in confined spaces
• Lightweight construction at 0.44 pounds reduces hand fatigue during extended service work

Compatibility

Designed for use with CDI torque wrench handles that accept a Y-type shank. Verify handle compatibility before use, as shank dimensions must match the drive system of the torque wrench handle.

Installation Notes

This head is installed by a licensed HVAC technician, refrigeration mechanic, or plumber as part of a torque wrench assembly. Confirm the Y-type shank is fully seated in the torque wrench handle before applying load. Follow applicable codes and manufacturer torque specifications for the fitting being fastened. Do not use this head with an incompatible shank type, as improper fit can cause inaccurate torque readings or tool damage.

Technical Specifications

• Head Size: 1 inch
• Head Type: Ratcheting Flare Nut
• Shank Size: 0.560 inches
• Shank Type: Y
• Length: 4.6 inches
• Width: 1.8 inches
• Height: 0.5 inches
• Weight: 0.44 pounds
• UPC: 662459974815

Standard Information

• Brand: CDI TORQUE
• Manufacturer Part Number: TCRTWH64Y
